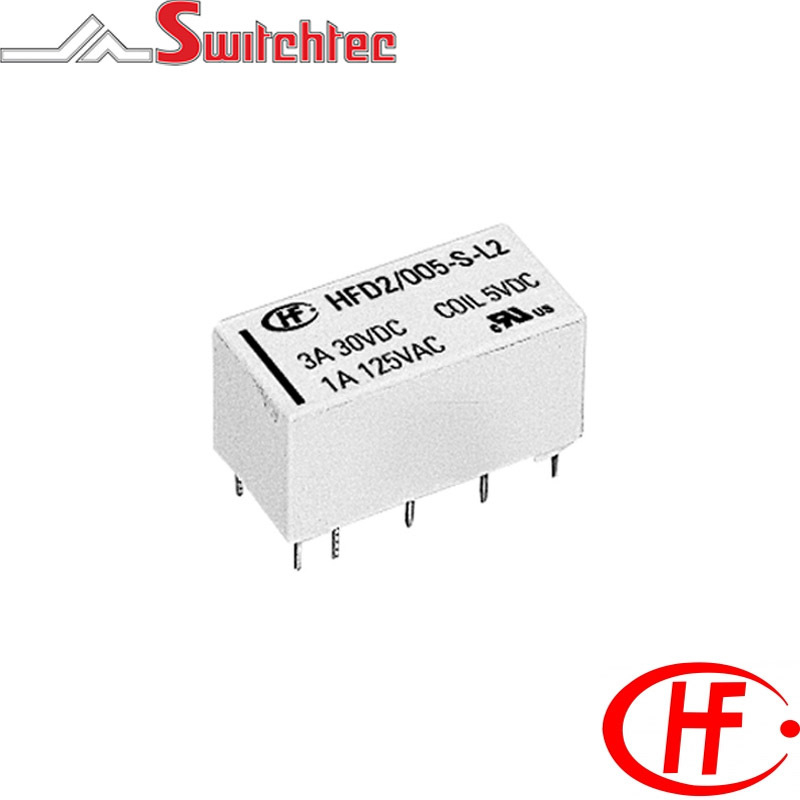

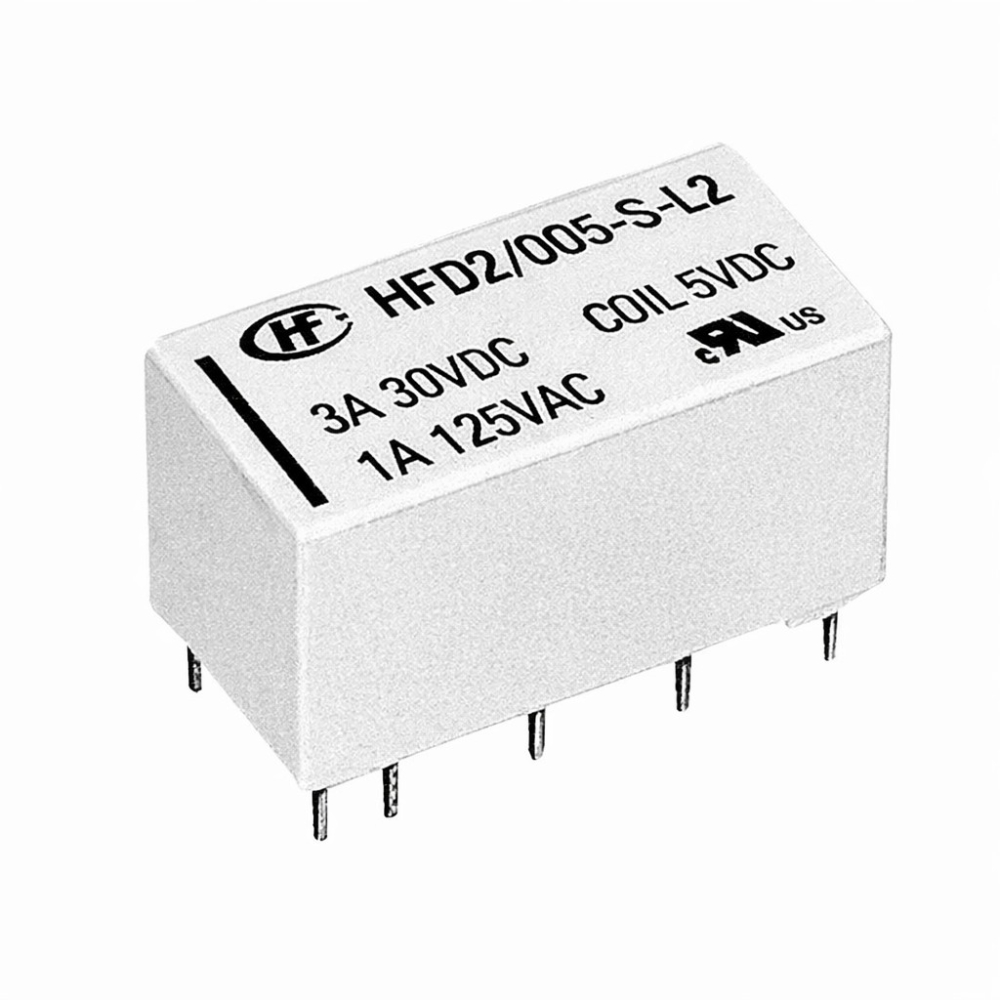

Single Side Stable (Sensitive) 150mW 1 Amp

Single Side Stable (Sensitive) 150mW 1 Amp

  • 1A 125VAC / 2A 30VDC contact rating
  • 2 pole c/o contacts
  • 1 & 2 Coil Latching versions
  • Sensitive version
  • High Sensitive Type 150mW
  • Fully sealed
  • Contact Material AgPd60/Ag – AuAg8, others available upon request
  • Bifurcated contacts
  • RoHS Compliant
  • ApprovalsUL/CSA


Code Description Coil Power Coil ? ? 10% Max VDC Drop Out Max VDC Pick Up Max VDC Coil Voltage Contact Arrangement Maximum Rated Switching Current Price
HFD2005S HONGFA PCB SIGNAL RELAY 5VDC 2A 2CO HFD2/005-S 150mW 167 x (1?10%) 11.5 0.5 4 5VDC 2C - Double Pole Changeover 3AMP
HFD2006S HONGFA PCB SIGNAL RELAY 6VDC 2A 2CO HFD2/006-S 150mW 240 x (1?10%) 13.8 0.6 4.8 6VDC 2C - Double Pole Changeover 3AMP
HFD2009S HONGFA PCB SIGNAL RELAY 9VDC 2A 2CO HFD2/009-S 150mW 540 x (1?10%) 20.8 0.9 7.2 9VDC 2C - Double Pole Changeover 3AMP
HFD2012S HONGFA PCB SIGNAL RELAY 12VDC 2A 2CO HFD2/012-S 150mW 960 x (1?10%) 27.7 1.2 9.6 12VDC 2C - Double Pole Changeover 3AMP
HFD2015S HONGFA PCB SIGNAL RELAY 15VDC 2A 2CO HFD2/015-S 150mW 1500 x (1?10%) 34.6 1.5 12 15VDC 2C - Double Pole Changeover 3AMP
HFD2024S HONGFA PCB SIGNAL RELAY 24VDC 2A 2CO HFD2/024-S 150mW 3840 x (1?10%) 55.4 2.4 19.2 24VDC 2C - Double Pole Changeover 3AMP
