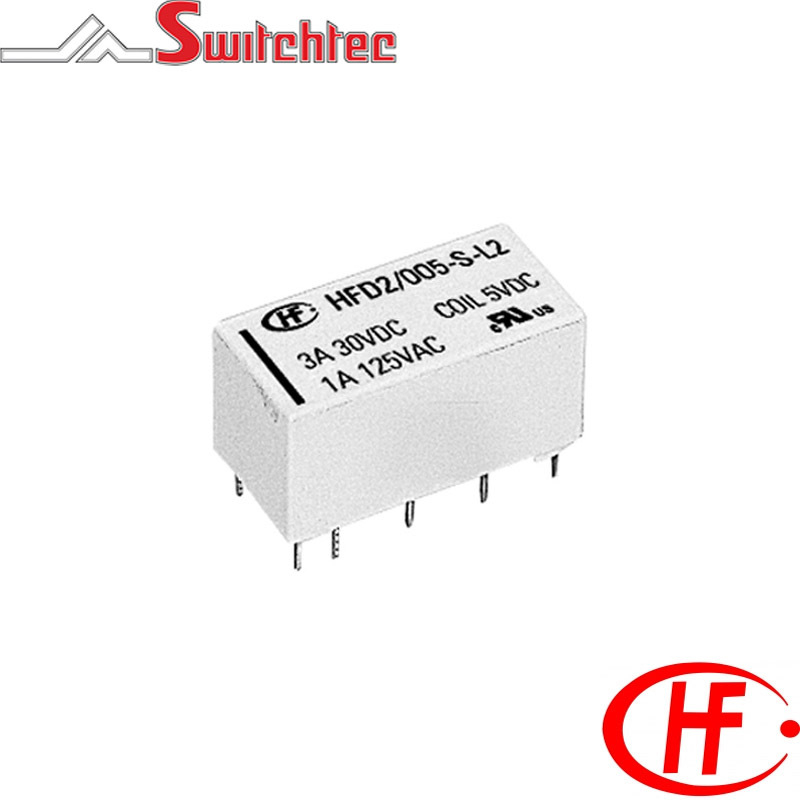

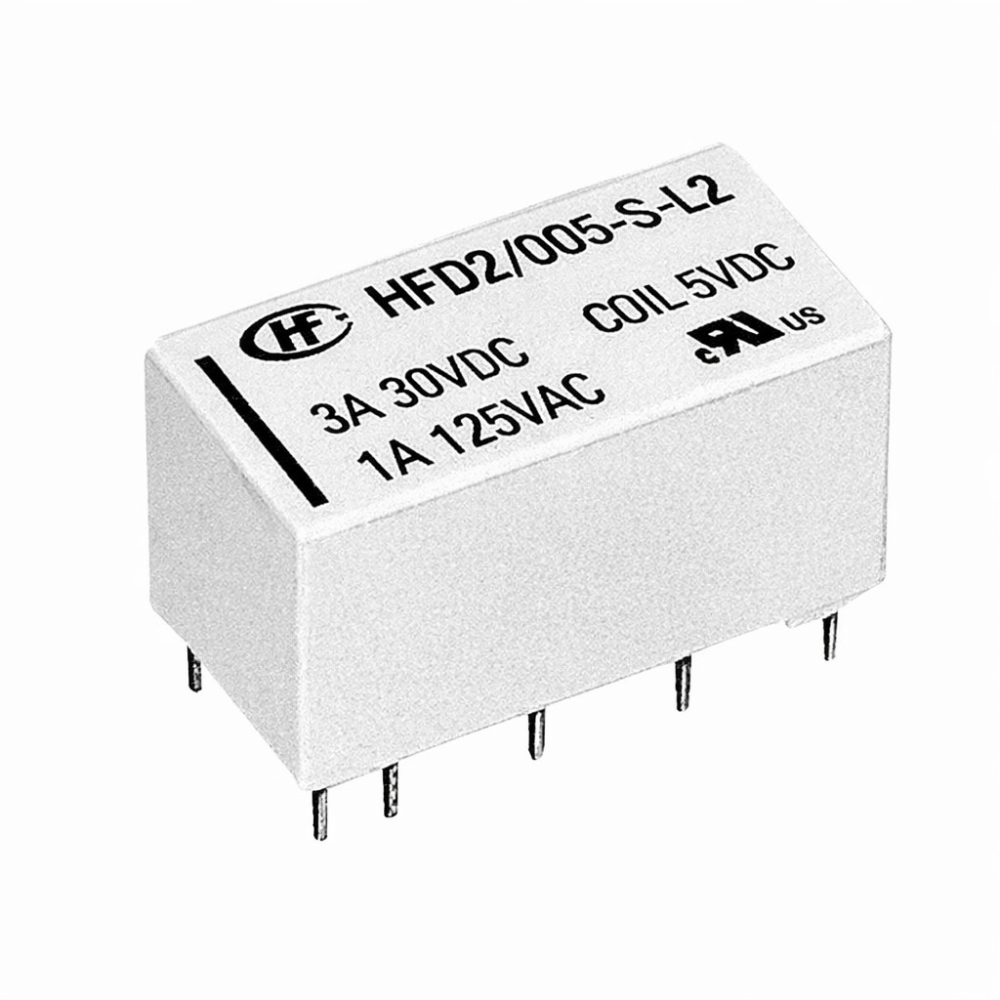

1 Coil Latching (Standard) 100mW 1 Amp

1 Coil Latching (Standard) 100mW 1 Amp

  • 1A 125VAC / 2A 30VDC contact rating
  • 2 pole c/o contacts
  • 1 Coil Latching versions
  • Standard version
  • Fully sealed
  • Contact Material AgPd60/Ag – AuAg8, others available upon request
  • Bifurcated contacts
  • RoHS Compliant
  • Approvals UL/CSA


Code Description Set/Reset Voltage VDC Max Coil Power Coil ? ? 10% Max VDC Coil Voltage Contact Arrangement Maximum Rated Switching Current Price
HFD2-003M-L1 HONGFA PCB SIGNAL RELAY 3VDC 2A 2CO HFD2/003-M-L1 3.75 100mW 330 x (1?10%) 14 5VDC 2C - Double Pole Changeover 3AMP
HFD2-005M-L1 HONGFA PCB SIGNAL RELAY 5VDC 2A 2CO HFD2/005-M-L1 4.5 100mW 480 x (1?10%) 17 6VDC 2C - Double Pole Changeover 3AMP
HFD2-006M-L1 HONGFA PCB SIGNAL RELAY 6VDC 2A 2CO HFD2/006-M-L1 6.75 100mW 1080 x (1?10%) 25 9VDC 2C - Double Pole Changeover 3AMP
HFD2-009M-L1 HONGFA PCB SIGNAL RELAY 9VDC 2A 2CO HFD2/009-M-L1 9 100mW 1920 x (1?10%) 34 12VDC 2C - Double Pole Changeover 3AMP
HFD2-012M-L1 HONGFA PCB SIGNAL RELAY 12VDC 2A 2CO HFD2/012-M-L1 11.25 100mW 3000 x (1?10%) 42 15VDC 2C - Double Pole Changeover 3AMP
HFD2-015M-L1 HONGFA PCB SIGNAL RELAY 15VDC 2A 2CO HFD2/015-M-L1 18 100mW 7680 x (1?10%) 56 24VDC 2C - Double Pole Changeover 3AMP
HFD2-024M-L1 HONGFA PCB SIGNAL RELAY 24VDC 2A 2CO HFD2/024-M-L1
