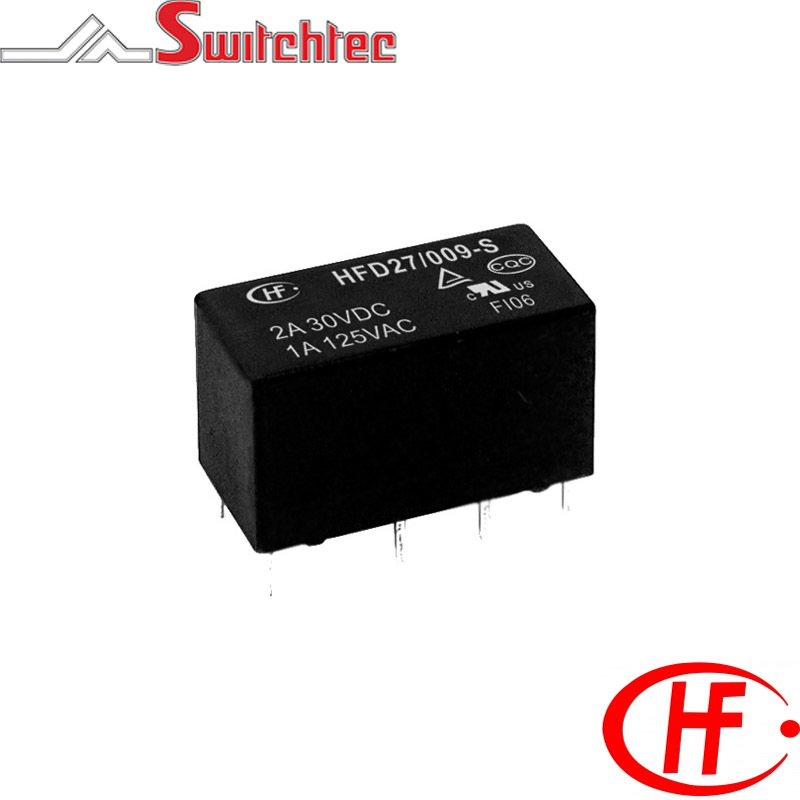

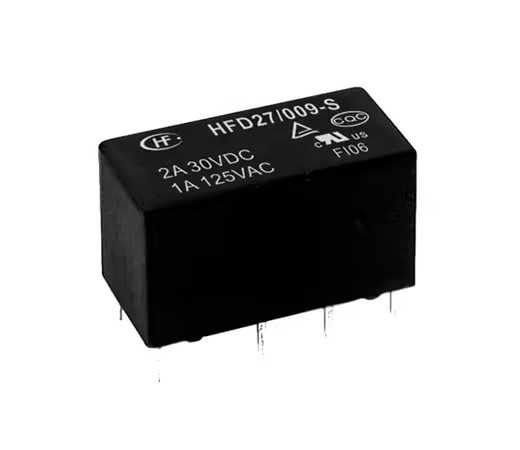

Sensitive 200mW 2 Amp

Sensitive 200mW 2 Amp

  • 2 Amp switching capability
  • 2 Form C configuration
  • High switching capacity 125VA/60W
  • Bifurcated contacts
  • Sensitive coil version
  • Expoxy sealed for automatic wave soldering and cleaning
  • Contact Material AgNi + Au plated
  • RoHS Compliant
  • Matching 16 pin IC socket
  • Approvals UL/CUR & TUV


Code Description Coil Power Coil ? ? 10% Max VDC Drop Out Max VDC Pick Up Max VDC Coil Voltage Contact Arrangement Maximum Rated Switching Current Price
HFD27003S HONGFA PCB SIGNAL RELAY 3VDC 2A 2CO HFD27/003-S 200mW 45 x (1?10%) 6 0.3 2.25 3VDC 2C - Double Pole Changeover 2AMP
HFD27005S HONGFA PCB SIGNAL RELAY 5VDC 2A 2CO HFD27/005-S 200mW 125 x (1?10%) 10 0.5 3.75 5VDC 2C - Double Pole Changeover 2AMP
HFD27006S HONGFA PCB SIGNAL RELAY 6VDC 2A 2CO HFD27/F006-S 200mW 180 x (1?10%) 12 0.6 4.5 6VDC 2C - Double Pole Changeover 2AMP
HFD27009S HONGFA PCB SIGNAL RELAY 9VDC 2A 2CO HFD27/009-S 200mW 405 x (1?10%) 18 0.9 6.8 9VDC 2C - Double Pole Changeover 2AMP
HFD27012S HONGFA PCB SIGNAL RELAY 12VDC 2A 2CO HFD27/012-S 200mW 720 x (1?10%) 24 1.2 9 12VDC 2C - Double Pole Changeover 2AMP
HFD27015S HONGFA PCB SIGNAL RELAY 15VDC 2A 2CO HFD27/015-S 200mW 1125 x (1?10%) 30 1.5 11.3 15VDC 2C - Double Pole Changeover 2AMP
HFD27024S HONGFA PCB SIGNAL RELAY 24VDC 2A 2CO HFD27/024-S 200mW 2880 x (1?10%) 48 2.4 18 24VDC 2C - Double Pole Changeover 2AMP
HFD27048S HONGFA PCB SIGNAL RELAY 48VDC 2A 2CO HFD27/048-S 4.8 36 48VDC 2C - Double Pole Changeover 2AMP
