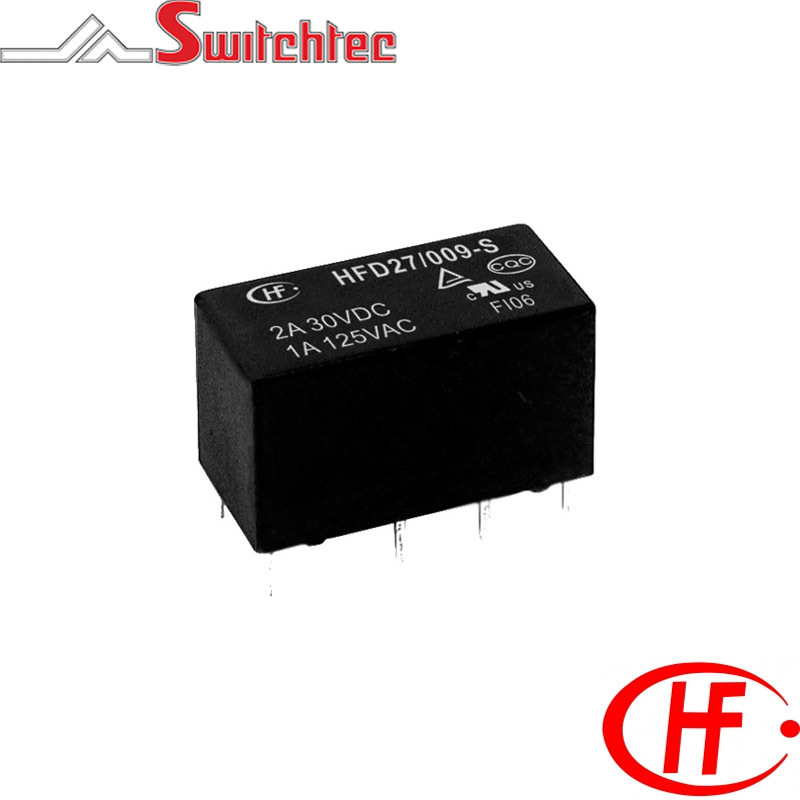

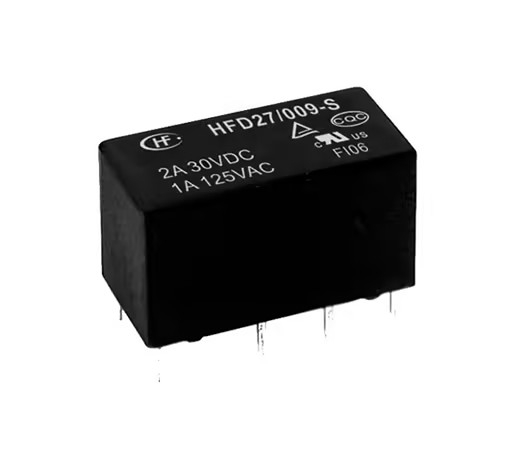

High Sensitivity 150mW 2 Amp

High Sensitivity 150mW 2 Amp

  • 2 Amp switching capability
  • 2 Form C configuration
  • High switching capacity 125VA/60W
  • Bifurcated contacts
  • Sensitive coil version
  • Expoxy sealed for automatic wave soldering and cleaning
  • Contact Material AgNi + Au plated
  • RoHS Compliant
  • Matching 16 pin IC socket
  • Approvals UL/CUR & TUV


Code Description Coil Power Coil ? ? 10% Max VDC Drop Out Max VDC Pick Up Max VDC Coil Voltage Contact Arrangement Maximum Rated Switching Current Price
HFD27003H HONGFA PCB SIGNAL RELAY 3VDC 2A 2CO HFD27/003-H 150mW 60 x (1?10%) 7 0.3 2.4 3VDC 2C - Double Pole Changeover 2AMP
HFD27005H HONGFA PCB SIGNAL RELAY 5VDC 2A 2CO HFD27/005-H 150mW 167 x (1?10%) 11.5 0.5 4 5VDC 2C - Double Pole Changeover 2AMP
HFD27006H HONGFA PCB SIGNAL RELAY 6VDC 2A 2CO HFD27/006-H 150mW 240 x (1?10%) 13.8 0.6 4.8 6VDC 2C - Double Pole Changeover 2AMP
HFD27009H HONGFA PCB SIGNAL RELAY 9VDC 2A 2CO HFD27/009-H 150mW 540 x (1?10%) 20.8 0.9 7.2 9VDC 2C - Double Pole Changeover 2AMP
HFD27012H HONGFA PCB SIGNAL RELAY 12VDC 2A 2CO HFD27/012-H 150mW 960 x (1?10%) 27.7 1.2 9.6 12VDC 2C - Double Pole Changeover 2AMP
HFD27015H HONGFA PCB SIGNAL RELAY 15VDC 2A 2CO HFD27/015-H 150mW 1500 x (1?10%) 34.6 1.5 12 15VDC 2C - Double Pole Changeover 2AMP
HFD27024H HONGFA PCB SIGNAL RELAY 24VDC 2A 2CO HFD27/024-H 150mW 3840 x (1?10%) 55.2 2.4 19.2 24VDC 2C - Double Pole Changeover 2AMP
HFD27048H HONGFA PCB SIGNAL RELAY 48VDC 2A 2CO HFD27/048-H 48VDC 2C - Double Pole Changeover 2AMP
