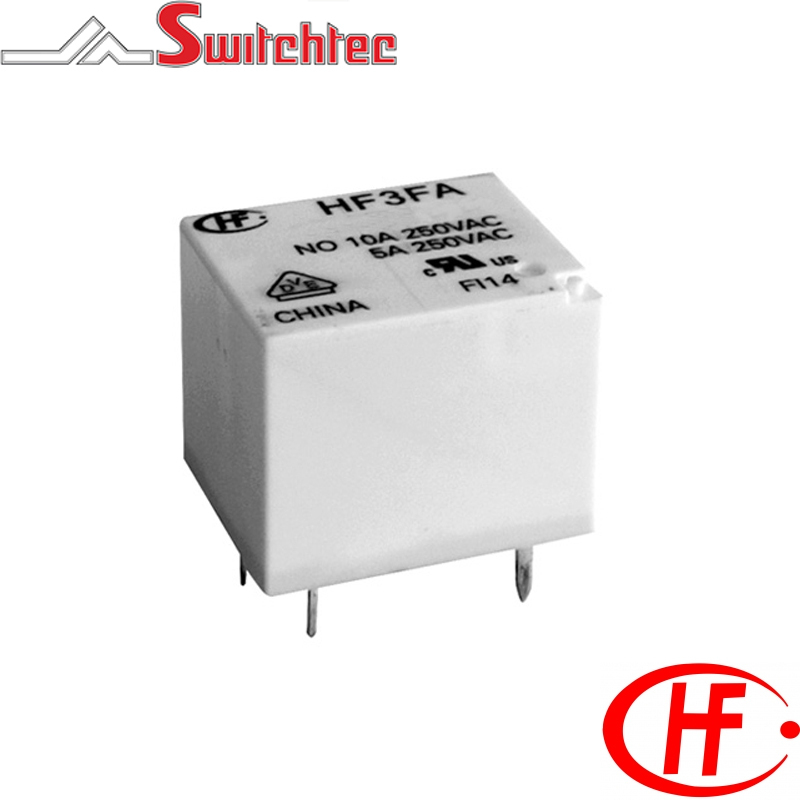

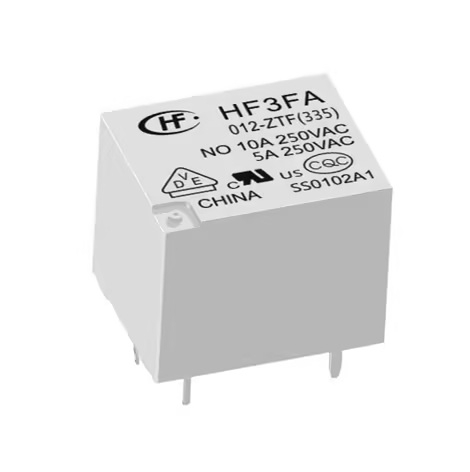

5 Amp 1 Pole Changeover

5 Amp 1 Pole Changeover

  • 5 amp switching capacity
  • 1 pole Changeover Form C
  • 2.5Kv dielectric strength Full sealed as standard
  • Flammability class to UL94, V-O
  • CTI 250, VDE0631/0700
  • Compliant to IEC 60335-1
  • Wash Tight
  • 360mW Coil
  • Contact Materials AgSn02
  • RoHS complaint
  • Approvals UL & CUR, VDE
  • Class F Insulation


Code Description Coil Power Coil ? ? 10% Max VDC Drop Out Max VDC Pick Up Max VDC Coil Voltage Contact Arrangement Maximum Rated Switching Current Price
HF3FA003ZSTF HONGFA PCB CUBE RELAY 3VDC 5A SPDT HF3FA/003-ZSTF
HF3FA005ZSTF HONGFA PCB CUBE RELAY 5VDC 5A SPDT HF3FA/005-ZSTF
HF3FA006ZSTF HONGFA PCB CUBE RELAY 6VDC 5A SPDT HF3FA/006-ZSTF
HF3FA009ZSTF HONGFA PCB CUBE RELAY 9VDC 5A SPDT HF3FA/009-ZSTF
HF3FA012ZSTF HONGFA PCB CUBE RELAY 12VDC 5A SPDT HF3FA/012-ZSTF 360mW 400 x (1?10%) 15.6 1.2 9 12VDC 1C - Single Pole Changeover 10 AMP
HF3FA018ZSTF HONGFA PCB CUBE RELAY 18VDC 5A SPDT HF3FA/018-ZSTF
HF3FA024ZSTF HONGFA PCB CUBE RELAY 24VDC 5A SPDT HF3FA/024-ZSTF
HF3FA048ZSTF HONGFA PCB CUBE RELAY 48VDC 5A SPDT HF3FD/048-ZSTF
