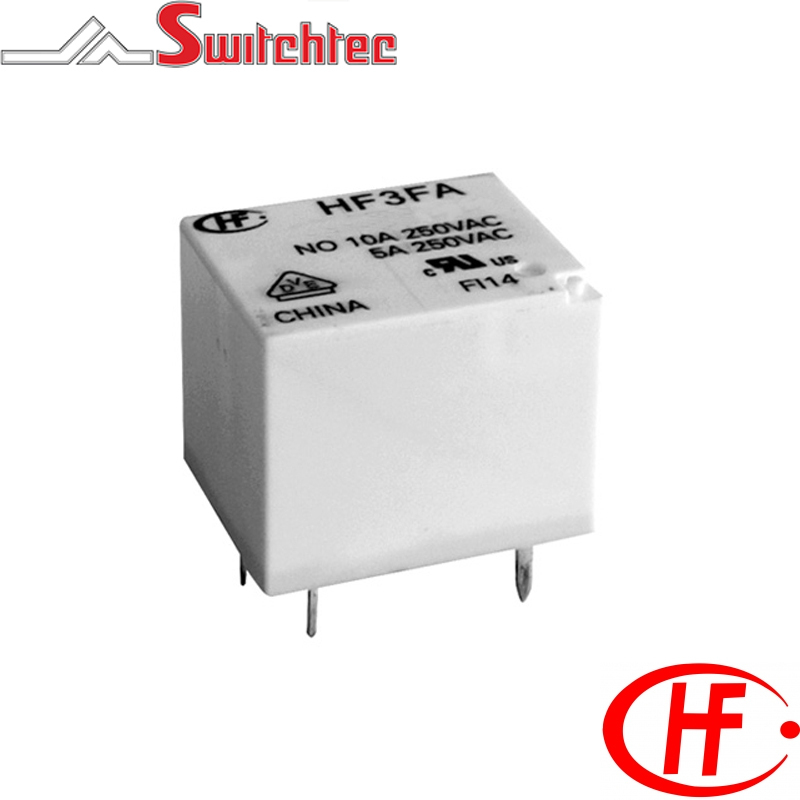

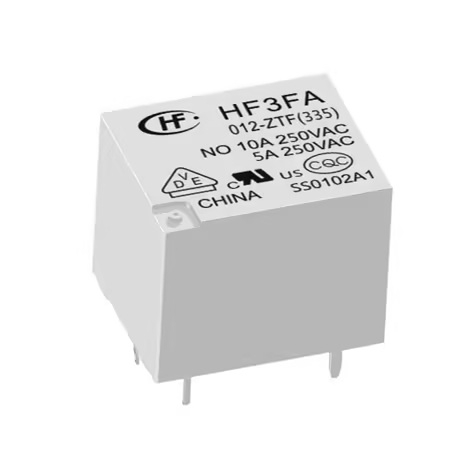

10 Amp 1 Pole Normally Open

10 Amp 1 Pole Normally Open

  • 10 amp switching capacity
  • 1 pole Form A
  • 2.5Kv dielectric strength Full sealed as standard
  • Flammability class to UL94, V-O
  • CTI 250, VDE0631/0700
  • Compliant to IEC 60335-1
  • Wash Tight
  • 360mW Coil
  • Contact Materials AgSn02
  • RoHS complaint
  • Approvals UL & CUR, VDE
  • Class F Insulation


Code Description Coil Power Coil ? ? 10% Max VDC Drop Out Max VDC Pick Up Max VDC Coil Voltage Contact Arrangement Maximum Rated Switching Current Price
HF3FA003HSTF HONGFA PCB CUBE RELAY 3VDC 10A SPST HF3FA/003-1HSTF 360mW 25 x (1?10%) 3.9 0.3 2.25 3VDC 1A - Single Pole Normally Open 15 AMP
HF3FA005HSTF HONGFA PCB CUBE RELAY 5VDC 10A SPST HF3FA/005-1HSTF
HF3FA006HSTF HONGFA PCB CUBE RELAY 6VDC 10A SPST HF3FA/006-1HSTF
HF3FA009HSTF HONGFA PCB CUBE RELAY 9VDC 10A SPST HF3FA/009-1HSTF
HF3FA012HSTF HONGFA PCB CUBE RELAY 12VDC 10A SPST HF3FA/012-1HSTF
HF3FA018HSTF HONGFA PCB CUBE RELAY 18VDC 10A SPST HF3FA/018-1HSTF
HF3FA024HSTF HONGFA PCB CUBE RELAY 24VDC 10A SPST HF3FA/024-1HSTF
HF3FA048HSTF HONGFA PCB CUBE RELAY 48VDC 10A SPST HF3FA/048-1HSTF
