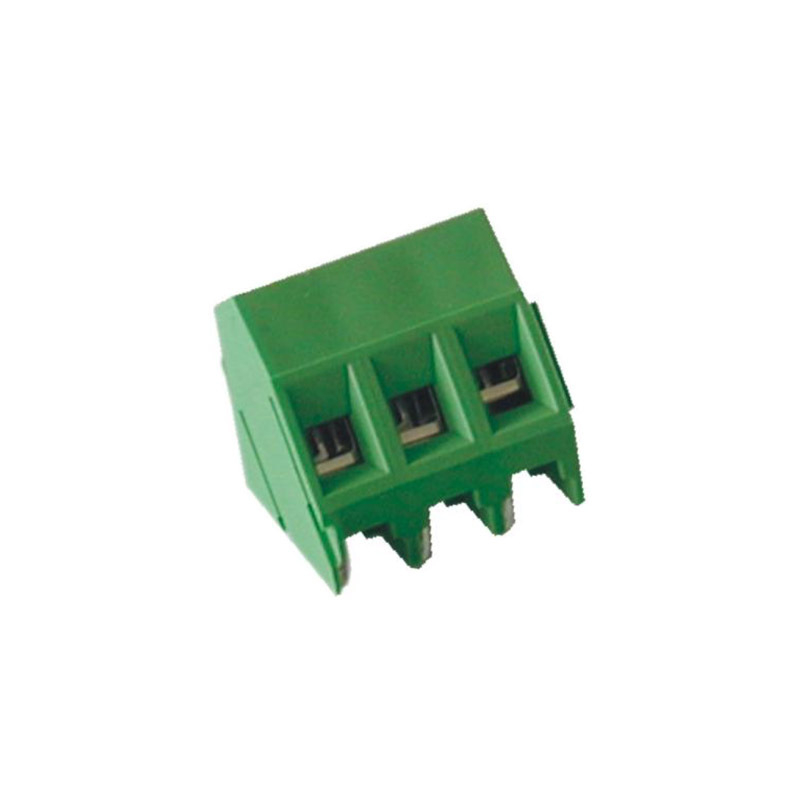

MVS15-IT 5mm Single Deck PCB Terminal Blocks

MVS15-IT 5mm Single Deck PCB Terminal Blocks

  • 5mm Pitch PCB Terminal Block
  • 2-3 Pole Interlocking
  • 17.5 Amp Current rating
  • Moulded in Green UL94-V0 flame retardant PA
  • Rising Clamp Terminal
  • Captive screws
  • Guided pin alignment
  • IMQ and UL approved
  • Alternative colours available upon request


Code Description Colour Materials (Terminals) Cable Size, Solid (mm2) Cable Size, Flexible (mm2) Materials (Body) Poles Operating Temperature Amperage Pitch Voltage Price
MVS152-5-IT EUROCLAMP PCB TERMINAL BLOCK VERTICAL 17.5A 10.16mm 2 POLE Green Tin-plated copper alloy 2.5 1.5 PA - UL 94 V0 2 -40 to +130?C 17.5 AMPS 5.00mm 750V
MVS153-5-IT EUROCLAMP PCB TERMINAL BLOCK VERTICAL 17.5A 5mm 3 POLE Green Tin-plated copper alloy 2.5 1.5 PA - UL 94 V0 3 -40 to +130?C 17.5 AMPS 5.00mm 750V
