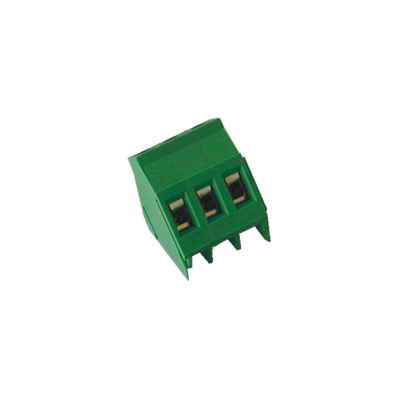

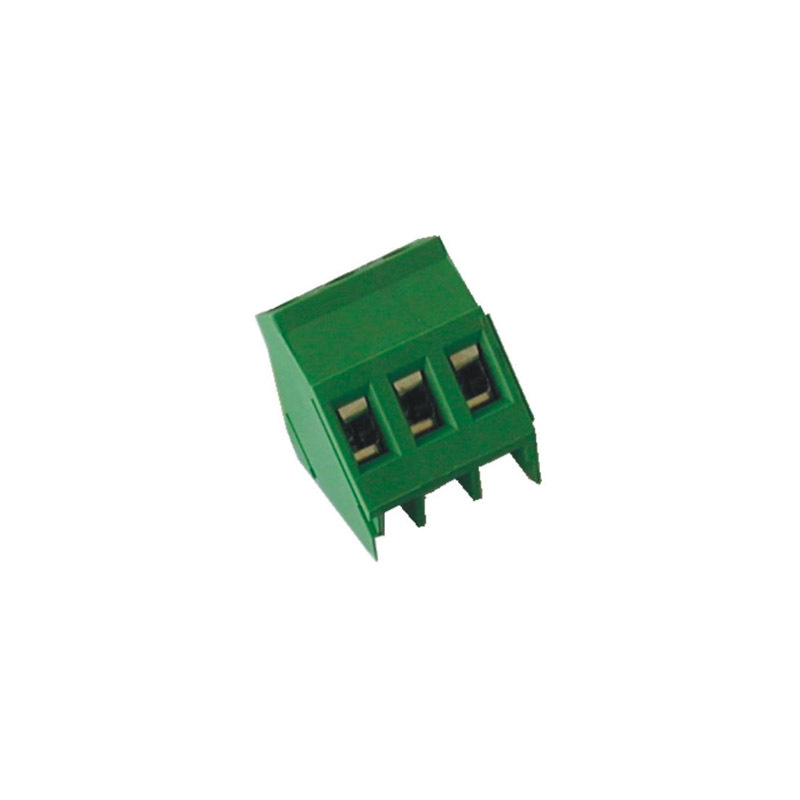

MI25-IQ 5mm Single Deck PCB Terminal Blocks

MI25-IQ 5mm Single Deck PCB Terminal Blocks

  • 5mm Pitch PCB Terminal Block
  • 2-3 Pole Interlocking
  • 16 Amp Current rating
  • Moulded in Green UL94-V0 flame retardant PA
  • Rising Clamp Terminal
  • Captive screws
  • Guided pin alignment
  • IMQ, VDE and UL approved
  • Alternative colours available upon request


Code Description Colour Materials (Terminals) Cable Size, Solid (mm2) Cable Size, Flexible (mm2) Materials (Body) Poles Operating Temperature Amperage Pitch Voltage Price
MI252-5-IQ EUROCLAMP PCB TERMINAL BLOCK ANGLED 16A 5mm 2 POLE Green Tin-plated copper alloy 4 2.5 PA - UL 94 V0 2 -40 to +130?C 16 AMP 5.00mm 750V
MI253-5-IQ EUROCLAMP PCB TERMINAL BLOCK ANGLED 16A 5.08mm 3 POLE Green Tin-plated copper alloy 4 2.5 PA - UL 94 V0 3 -40 to +130?C 16 AMP 5.00mm 750V
