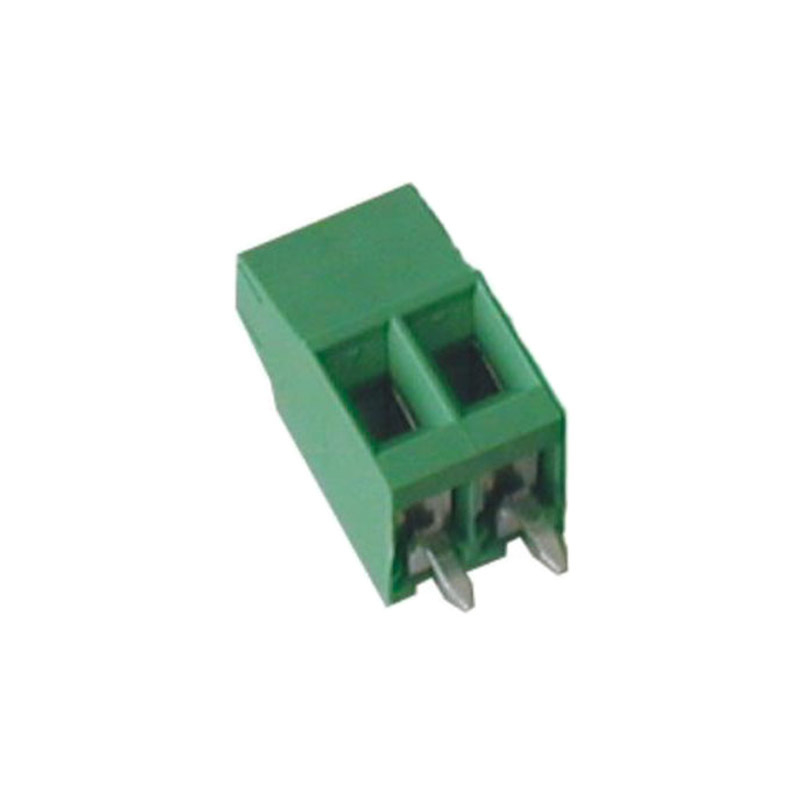

MVS13-V-L 3.81mm Single Deck PCB Terminal Blocks

MVS13-V-L 3.81mm Single Deck PCB Terminal Blocks

  • 3.81mm Pitch PCB Terminal Block
  • 2-12 Pole Mono-block
  • 17.5 Amp Current rating
  • Moulded in Green UL94-V0 flame retardant PA
  • Rising Clamp Terminal
  • Captive screws
  • Guided pin alignment
  • IMQ and UL approved
  • Alternative colours available upon request


Code Description Materials (Terminals) Cable Size, Solid (mm2) Cable Size, Flexible (mm2) Materials (Body) Poles Operating Temperature Amperage Pitch Colour Voltage Price
MVS132-3.81-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 17.5A 3.81mm 2 POLE Tin-plated copper alloy 1.5 1 PA - UL 94 V0 2 -40 to +130?C 13.5 AMPS 3.81mm Green 450V
MVS133-3.81-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 17.5A 3.81mm 3 POLE Tin-plated copper alloy 1.5 1 PA - UL 94 V0 3 -40 to +130?C 13.5 AMPS 3.81mm Green 450V
MVS134-3.81-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 17.5A 3.81mm 4 POLE Tin-plated copper alloy 1.5 1 PA - UL 94 V0 4 -40 to +130?C 13.5 AMPS 3.81mm Green 450V
MVS135-3.81-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 17.5A 3.81mm 5 POLE Tin-plated copper alloy 1.5 1 PA - UL 94 V0 5 -40 to +130?C 13.5 AMPS 3.81mm Green 450V
MVS136-3.81-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 17.5A 3.81mm 6 POLE Tin-plated copper alloy 1.5 1 PA - UL 94 V0 6 -40 to +130?C 13.5 AMPS 3.81mm Green 450V
MVS137-3.81-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 17.5A 3.81mm 7 POLE Tin-plated copper alloy 1.5 1 PA - UL 94 V0 7 -40 to +130?C 13.5 AMPS 3.81mm Green 450V
MVS138-3.81-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 17.5A 3.81mm 8 POLE Tin-plated copper alloy 1.5 1 PA - UL 94 V0 8 -40 to +130?C 13.5 AMPS 3.81mm Green 450V
MVS139-3.81-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 17.5A 3.81mm 9 POLE Tin-plated copper alloy 1.5 1 PA - UL 94 V0 9 -40 to +130?C 13.5 AMPS 3.81mm Green 450V
MVS1310-3.81-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 17.5A 3.81mm 10 POLE Tin-plated copper alloy 1.5 1 PA - UL 94 V0 10 -40 to +130?C 13.5 AMPS 3.81mm Green 450V
MVS1311-3.81-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 17.5A 3.81mm 11 POLE Tin-plated copper alloy 1.5 1 PA - UL 94 V0 11 -40 to +130?C 13.5 AMPS 3.81mm Green 450V
MVS1312-3.81-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 17.5A 3.81mm 12 POLE Tin-plated copper alloy 1.5 1 PA - UL 94 V0 12 -40 to +130?C 13.5 AMPS 3.81mm Green 450V
