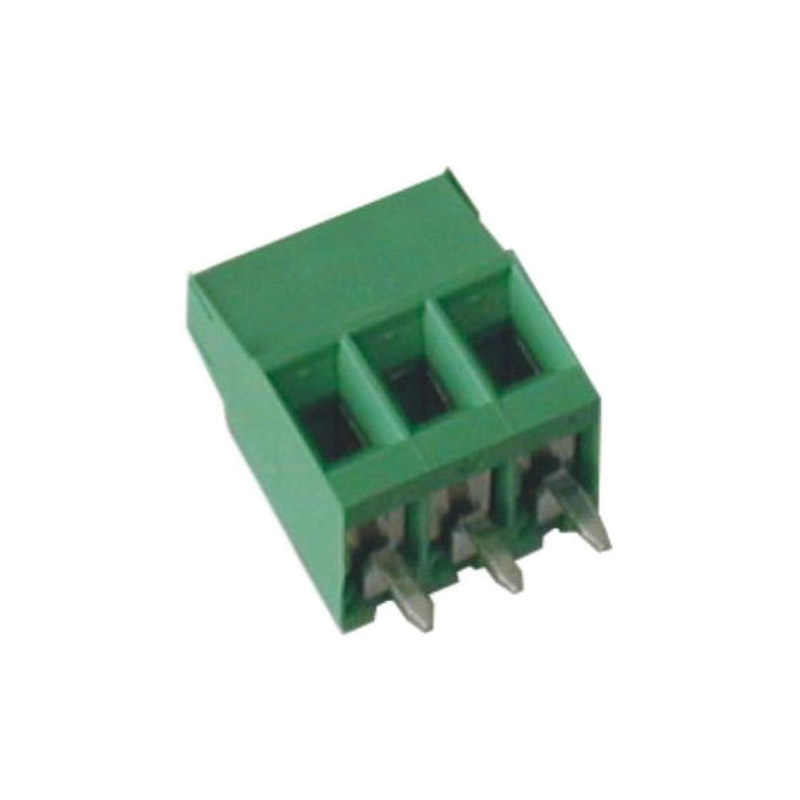

MVS13-V 3.81mm Single Deck PCB Terminal Blocks

Descriptions

3.81mm Pitch PCB Terminal Block
2-12 Pole Interlocking
17.5 Amp Current rating
Moulded in Green UL94-V0 flame retardant PA
Cage Clamp Terminal
Captive screws
Guided pin alignment
IMQ and UL approved
Alternative colours available upon request

Specifications

No detailed specifications are available for this product.

Downloads

Click on any of the following links to download the file.

Data Sheet (pdf)

Code	Description	Cable Size, Flexible (mm2)	Materials (Terminals)	Pitch	Voltage	Cable Size, Solid (mm2)	Materials (Body)	Poles	Amperage	Colour	Operating Temperature	Price
MVS1310-3.81-V	EUROCLAMP PCB TERMINAL BLOCK VERTICAL 17.5A 3.81mm 10 POLE	1	Tin-plated copper alloy	3.81mm	450V	1.5	PA - UL 94 V0	10	13.5 AMP	Green	-40 to +130℃	Please login to see prices.
MVS1311-3.81-V	EUROCLAMP PCB TERMINAL BLOCK VERTICAL 17.5A 3.81mm 11 POLE	1	Tin-plated copper alloy	3.81mm	450V	1.5	PA - UL 94 V0	11	13.5 AMP	Green	-40 to +130℃	Please login to see prices.
MVS1312-3.81-V	EUROCLAMP PCB TERMINAL BLOCK VERTICAL 17.5A 3.81mm 12 POLE	1	Tin-plated copper alloy	3.81mm	450V	1.5	PA - UL 94 V0	12	13.5 AMP	Green	-40 to +130℃	Please login to see prices.
MVS132-3.81-V	EUROCLAMP PCB TERMINAL BLOCK VERTICAL 17.5A 3.81mm 2 POLE	1	Tin-plated copper alloy	3.81mm	450V	1.5	PA - UL 94 V0	2	13.5 AMP	Green	-40 to +130℃	Please login to see prices.
MVS133-3.81-V	EUROCLAMP PCB TERMINAL BLOCK VERTICAL 17.5A 3.81mm 3 POLE	1	Tin-plated copper alloy	3.81mm	450V	1.5	PA - UL 94 V0	3	13.5 AMP	Green	-40 to +130℃	Please login to see prices.
MVS134-3.81-V	EUROCLAMP PCB TERMINAL BLOCK VERTICAL 17.5A 3.81mm 4 POLE	1	Tin-plated copper alloy	3.81mm	450V	1.5	PA - UL 94 V0	4	13.5 AMP	Green	-40 to +130℃	Please login to see prices.
MVS135-3.81-V	EUROCLAMP PCB TERMINAL BLOCK VERTICAL 17.5A 3.81mm 5 POLE	1	Tin-plated copper alloy	3.81mm	450V	1.5	PA - UL 94 V0	5	13.5 AMP	Green	-40 to +130℃	Please login to see prices.
MVS136-3.81-V	EUROCLAMP PCB TERMINAL BLOCK VERTICAL 17.5A 3.81mm 6 POLE	1	Tin-plated copper alloy	3.81mm	450V	1.5	PA - UL 94 V0	6	13.5 AMP	Green	-40 to +130℃	Please login to see prices.
MVS137-3.81-V	EUROCLAMP PCB TERMINAL BLOCK VERTICAL 17.5A 3.81mm 7 POLE	1	Tin-plated copper alloy	3.81mm	450V	1.5	PA - UL 94 V0	7	13.5 AMP	Green	-40 to +130℃	Please login to see prices.
MVS138-3.81-V	EUROCLAMP PCB TERMINAL BLOCK VERTICAL 17.5A 3.81mm 8 POLE	1	Tin-plated copper alloy	3.81mm	450V	1.5	PA - UL 94 V0	8	13.5 AMP	Green	-40 to +130℃	Please login to see prices.
MVS139-3.81-V	EUROCLAMP PCB TERMINAL BLOCK VERTICAL 17.5A 3.81mm 9 POLE	1	Tin-plated copper alloy	3.81mm	450V	1.5	PA - UL 94 V0	9	13.5 AMP	Green	-40 to +130℃	Please login to see prices.
