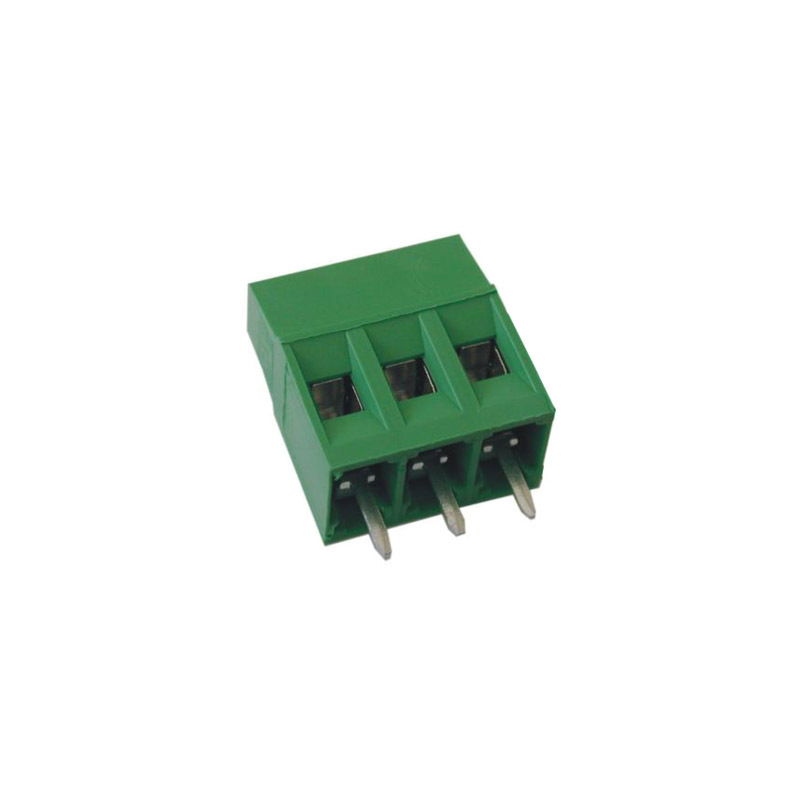

MVE25-V-L 5mm Single Deck PCB Terminal Blocks

MVE25-V-L 5mm Single Deck PCB Terminal Blocks

  • 5mm Pitch PCB Terminal Block
  • 2-12 Pole Mono-block
  • 16 Amp Current rating
  • Moulded in Green UL94-V0 flame retardant PA
  • Rising Clamp Terminal
  • Captive screws
  • Guided pin alignment
  • IMQ, VDE and UL approved
  • Alternative colours available upon request


Code Description Colour Materials (Terminals) Cable Size, Solid (mm2) Cable Size, Flexible (mm2) Materials (Body) Poles Operating Temperature Amperage Pitch Voltage Price
MVE252-5-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 16A 5mm 2 POLE Green Tin-plated copper alloy 4 2.5 PA - UL 94 V0 2 -40 to +130?C 16 AMPS 5.00mm 750V
MVE253-5-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 16A 5mm 3 POLE Green Tin-plated copper alloy 4 2.5 PA - UL 94 V0 3 -40 to +130?C 16 AMPS 5.00mm 750V
MVE254-5-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 16A 5mm 4 POLE Green Tin-plated copper alloy 4 2.5 PA - UL 94 V0 4 -40 to +130?C 16 AMPS 5.00mm 750V
MVE255-5-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 16A 5mm 5 POLE Green Tin-plated copper alloy 4 2.5 PA - UL 94 V0 5 -40 to +130?C 16 AMPS 5.00mm 750V
MVE256-5-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 16A 5mm 6 POLE Green Tin-plated copper alloy 4 2.5 PA - UL 94 V0 6 -40 to +130?C 16 AMPS 5.00mm 750V
MVE257-5-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 16A 5mm 7 POLE Green Tin-plated copper alloy 4 2.5 PA - UL 94 V0 7 -40 to +130?C 16 AMPS 5.00mm 750V
MVE258-5-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 16A 5mm 8 POLE Green Tin-plated copper alloy 4 2.5 PA - UL 94 V0 8 -40 to +130?C 16 AMPS 5.00mm 750V
MVE259-5-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 16A 5mm 9 POLE Green Tin-plated copper alloy 4 2.5 PA - UL 94 V0 9 -40 to +130?C 16 AMPS 5.00mm 750V
MVE2510-5-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 16A 5mm 10 POLE Green Tin-plated copper alloy 4 2.5 PA - UL 94 V0 10 -40 to +130?C 16 AMPS 5.00mm 750V
MVE2511-5-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 16A 5mm 11 POLE Green Tin-plated copper alloy 4 2.5 PA - UL 94 V0 11 -40 to +130?C 16 AMPS 5.00mm 750V
MVE2512-5-V-L EUROCLAMP PCB TERMINAL BLOCK VERTICAL 16A 5mm 12 POLE Green Tin-plated copper alloy 4 2.5 PA - UL 94 V0 12 -40 to +130?C 16 AMPS 5.00mm 750V
