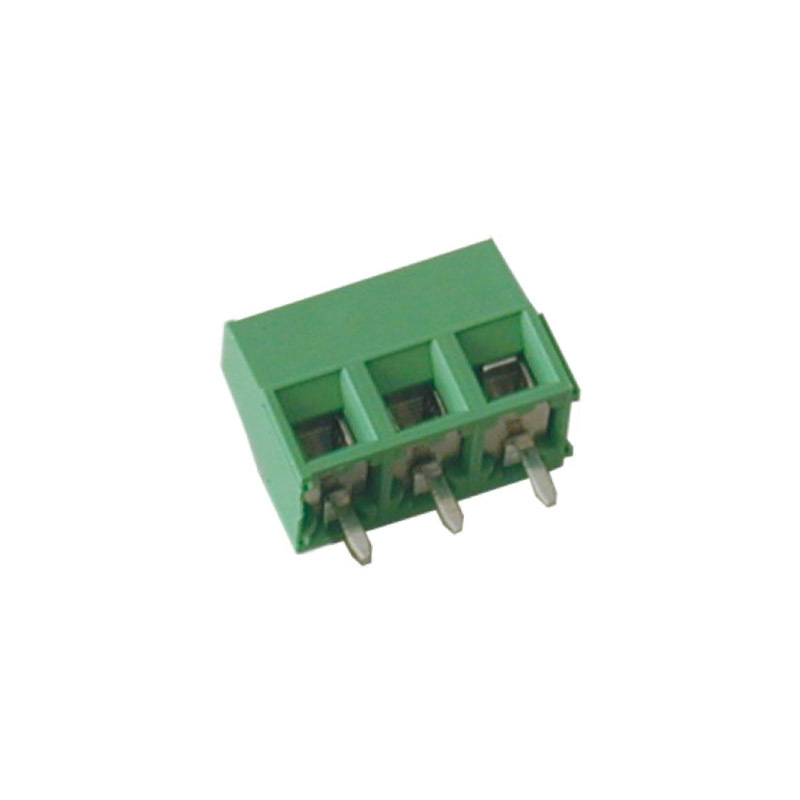

MV15-V 5mm Single Deck PCB Terminal Blocks

MV15-V 5mm Single Deck PCB Terminal Blocks

  • 5mm Pitch PCB Terminal Block
  • 2-12 Pole Interlocking
  • 13.5 Amp Current rating
  • Moulded in Green UL94-V0 flame retardant PA
  • Rising Clamp Terminal
  • Captive screws
  • Guided pin alignment
  • IMQ and UL approved
  • Alternative colours available upon request


Code Description Materials (Terminals) Cable Size, Solid (mm2) Cable Size, Flexible (mm2) Materials (Body) Poles Operating Temperature Amperage Pitch Colour Voltage Price
MV152-5-V EUROCLAMP PCB TERMINAL BLOCK VERTICAL 13.5A 5mm 2 POLE Tin-plated copper alloy 2.5 1.5 PA - UL 94 V0 2 -40 to +130?C 13.5 AMPS 5.00mm Green 750V
MV153-5-V EUROCLAMP PCB TERMINAL BLOCK VERTICAL 13.5A 5mm 3 POLE Tin-plated copper alloy 2.5 1.5 PA - UL 94 V0 3 -40 to +130?C 13.5 AMPS 5.00mm Green 750V
MV154-5-V EUROCLAMP PCB TERMINAL BLOCK VERTICAL 13.5A 5mm 4 POLE Tin-plated copper alloy 2.5 1.5 PA - UL 94 V0 4 -40 to +130?C 13.5 AMPS 5.00mm Green 750V
MV155-5-V EUROCLAMP PCB TERMINAL BLOCK VERTICAL 13.5A 5mm 5 POLE Tin-plated copper alloy 2.5 1.5 PA - UL 94 V0 5 -40 to +130?C 13.5 AMPS 5.00mm Green 750V
MV156-5-V EUROCLAMP PCB TERMINAL BLOCK VERTICAL 13.5A 5mm 6 POLE Tin-plated copper alloy 2.5 1.5 PA - UL 94 V0 6 -40 to +130?C 13.5 AMPS 5.00mm Green 750V
MV157-5-V EUROCLAMP PCB TERMINAL BLOCK VERTICAL 13.5A 5mm 7 POLE Tin-plated copper alloy 2.5 1.5 PA - UL 94 V0 7 -40 to +130?C 13.5 AMPS 5.00mm Green 750V
MV158-5-V EUROCLAMP PCB TERMINAL BLOCK VERTICAL 13.5A 5mm 8 POLE Tin-plated copper alloy 2.5 1.5 PA - UL 94 V0 8 -40 to +130?C 13.5 AMPS 5.00mm Green 750V
MV159-5-V EUROCLAMP PCB TERMINAL BLOCK VERTICAL 13.5A 5mm 9 POLE Tin-plated copper alloy 2.5 1.5 PA - UL 94 V0 9 -40 to +130?C 13.5 AMPS 5.00mm Green 750V
MV1510-5-V EUROCLAMP PCB TERMINAL BLOCK VERTICAL 13.5A 5mm 10 POLE Tin-plated copper alloy 2.5 1.5 PA - UL 94 V0 10 -40 to +130?C 13.5 AMPS 5.00mm Green 750V
MV1511-5-V EUROCLAMP PCB TERMINAL BLOCK VERTICAL 13.5A 5mm 11 POLE Tin-plated copper alloy 2.5 1.5 PA - UL 94 V0 11 -40 to +130?C 13.5 AMPS 5.00mm Green 750V
MV1512-5-V EUROCLAMP PCB TERMINAL BLOCK VERTICAL 13.5A 5mm 12 POLE Tin-plated copper alloy 2.5 1.5 PA - UL 94 V0 12 -40 to +130?C 13.5 AMPS 5.00mm Green 750V
