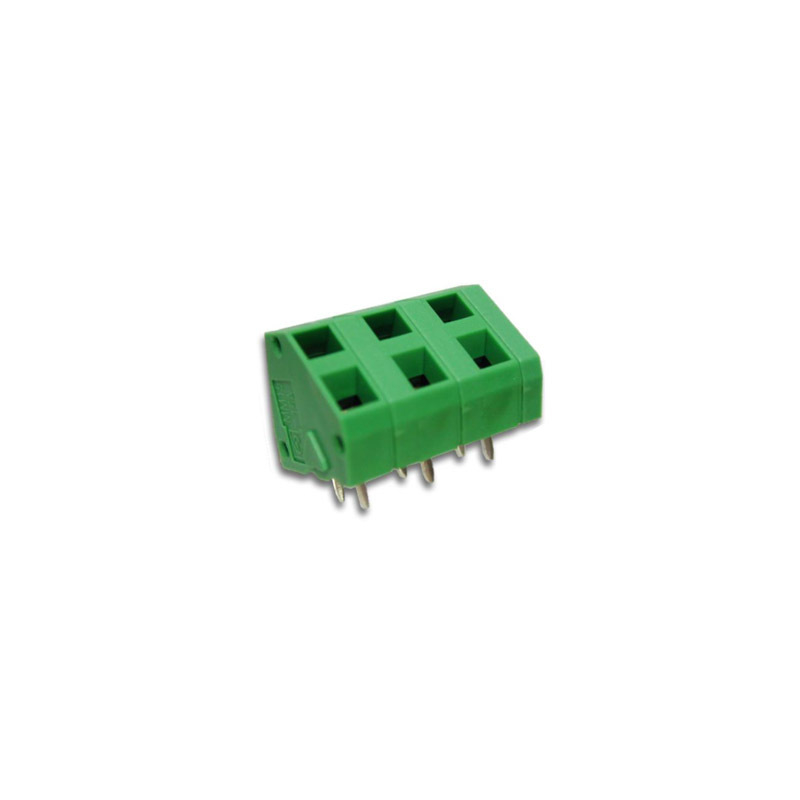

7.5mm Spring Clamp Screwless PCB Terminal Block

• 7.5mm Pitch Screwless PCB Terminal Block
• 1-20 Pole with Modular construction
• 16 Amp Current rating
• Moulded in Green UL94-V0 flame retardant PA.
• Spring Clamp Terminal
• Single, Double, Triple and Quad level Variants
• Guided pin alignment
• CE approved
• Alternative colours available upon request

Code Description Colour Materials (Terminals) Cable Size, Solid (mm2) Cable Size, Flexible (mm2) Materials (Body) Poles Operating Temperature Amperage Pitch Voltage Price
MG101-7.50 EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 7.5mm 1 POLE Green Tin-plated copper alloy 1.5 1.5 PA - UL 94 V0 1 -40 to +130?C 16 AMPS 7.5mm 450V
MG102-7.50 EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 7.5mm 1 POLE Green Tin-plated copper alloy 1.5 1.5 PA - UL 94 V0 2 -40 to +130?C 16 AMPS 7.5mm 450V
MG103-7.50 EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 7.5mm 2 POLE Green Tin-plated copper alloy 1.5 1.5 PA - UL 94 V0 3 -40 to +130?C 16 AMPS 7.5mm 450V
MG104-7.50 EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 7.5mm 3 POLE Green Tin-plated copper alloy 1.5 1.5 PA - UL 94 V0 4 -40 to +130?C 16 AMPS 7.5mm 450V
MG105-7.50 EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 7.5mm 4 POLE Green Tin-plated copper alloy 1.5 1.5 PA - UL 94 V0 5 -40 to +130?C 16 AMPS 7.5mm 450V
MG106-7.50 EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 7.5mm 5 POLE Green Tin-plated copper alloy 1.5 1.5 PA - UL 94 V0 6 -40 to +130?C 16 AMPS 7.5mm 450V
MG107-7.50 EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 7.5mm 6 POLE Green Tin-plated copper alloy 1.5 1.5 PA - UL 94 V0 7 -40 to +130?C 16 AMPS 7.5mm 450V
MG108-7.50 EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 7.5mm 7 POLE Green Tin-plated copper alloy 1.5 1.5 PA - UL 94 V0 8 -40 to +130?C 16 AMPS 7.5mm 450V
MG109-7.50 EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 7.5mm 8 POLE Green Tin-plated copper alloy 1.5 1.5 PA - UL 94 V0 9 -40 to +130?C 16 AMPS 7.5mm 450V
MG110-7.50 EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 7.5mm 9 POLE Green Tin-plated copper alloy 1.5 1.5 PA - UL 94 V0 10 -40 to +130?C 16 AMPS 7.5mm 450V
