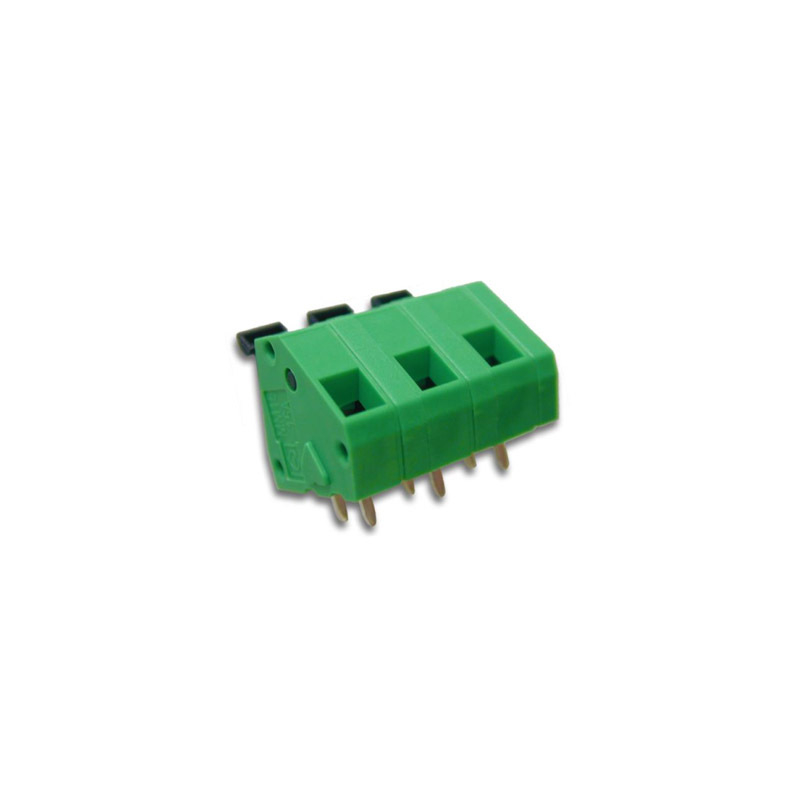

7.5mm Leaver Screwless PCB Terminal Block

Descriptions

• 7.5mm Pitch Screwless PCB Terminal Block
• 1-20 Pole with Modular construction
• 16 Amp Current rating
• Moulded in Green UL94-V0 flame retardant PA.
• Spring Clamp Terminal
• Single, Double, Triple and Quad level Variants
• Guided pin alignment
• CE approved
• Alternative colours available upon request

Specifications

No detailed specifications are available for this product.

Downloads

Click on any of the following links to download the file.

Data Sheet (pdf)

Code	Description	Cable Size, Flexible (mm2)	Materials (Terminals)	Pitch	Voltage	Cable Size, Solid (mm2)	Materials (Body)	Poles	Amperage	Colour	Operating Temperature	Price
MG101-7.50-P	EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 7.5mm 1 POLE	1.5	Tin-plated copper alloy	7.5mm	450V	1.5	PA - UL 94 V0	1	16 AMP	Green	-40 to +130℃	Please login to see prices.
MG102-7.50-P	EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 7.5mm 1 POLE	1.5	Tin-plated copper alloy	7.5mm	450V	1.5	PA - UL 94 V0	2	16 AMP	Green	-40 to +130℃	Please login to see prices.
MG103-7.50-P	EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 7.5mm 2 POLE	1.5	Tin-plated copper alloy	7.5mm	450V	1.5	PA - UL 94 V0	3	16 AMP	Green	-40 to +130℃	Please login to see prices.
MG104-7.50-P	EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 7.5mm 3 POLE	1.5	Tin-plated copper alloy	7.5mm	450V	1.5	PA - UL 94 V0	4	16 AMP	Green	-40 to +130℃	Please login to see prices.
MG105-7.50-P	EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 7.5mm 4 POLE	1.5	Tin-plated copper alloy	7.5mm	450V	1.5	PA - UL 94 V0	5	16 AMP	Green	-40 to +130℃	Please login to see prices.
MG106-7.50-P	EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 7.5mm 5 POLE	1.5	Tin-plated copper alloy	7.5mm	450V	1.5	PA - UL 94 V0	6	16 AMP	Green	-40 to +130℃	Please login to see prices.
MG107-7.50-P	EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 7.5mm 6 POLE	1.5	Tin-plated copper alloy	7.5mm	450V	1.5	PA - UL 94 V0	7	16 AMP	Green	-40 to +130℃	Please login to see prices.
MG108-7.50-P	EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 7.5mm 7 POLE	1.5	Tin-plated copper alloy	7.5mm	450V	1.5	PA - UL 94 V0	8	16 AMP	Green	-40 to +130℃	Please login to see prices.
MG109-7.50-P	EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 7.5mm 8 POLE	1.5	Tin-plated copper alloy	7.5mm	450V	1.5	PA - UL 94 V0	9	16 AMP	Green	-40 to +130℃	Please login to see prices.
MG110-7.50-P	EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 7.5mm 9 POLE	1.5	Tin-plated copper alloy	7.5mm	450V	1.5	PA - UL 94 V0	10	16 AMP	Green	-40 to +130℃	Please login to see prices.
