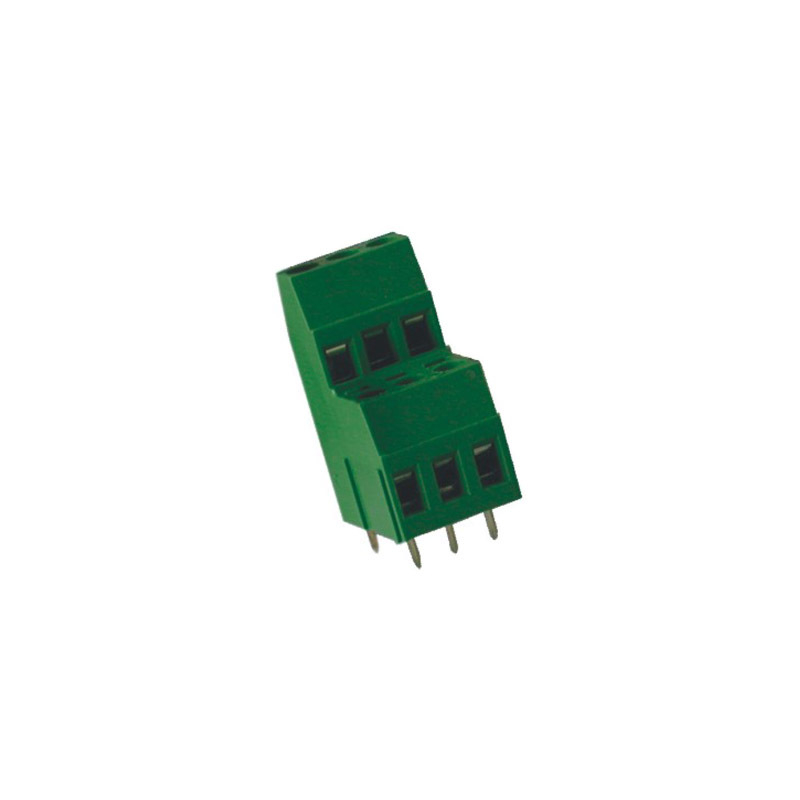

MVDK25-V Multi Deck PCB Terminal Blocks

MVDK25-V Multi Deck PCB Terminal Blocks

  • 10.16mm Pitch PCB Terminal Block
  • 1-2Pole Interlocking
  • 16 Amp Current rating
  • Moulded in Green UL94-V0 flame retardant PA
  • Rising Clamp Terminal
  • Captive screws
  • Guided pin alignment
  • IMQ, VDE and UL approved
  • Alternative colours available upon request


Code Description Colour Materials (Terminals) Cable Size, Solid (mm2) Cable Size, Flexible (mm2) Materials (Body) Poles Operating Temperature Amperage Pitch Voltage Price
MVDK251-10.16-V EUROCLAMP PCB TERMINAL BLOCK VERTICAL 16A 10.16mm 1 POLE Green Tin-plated copper alloy 4 2.5 PA - UL 94 V8 1 -40 to +130?C 16 AMP 10.16mm 750V
MVDK252-10.16-V EUROCLAMP PCB TERMINAL BLOCK VERTICAL 16A 10.16mm 2 POLE Green Tin-plated copper alloy 4 2.5 PA - UL 94 V9 2 -40 to +130?C 16 AMP 10.16mm 750V
