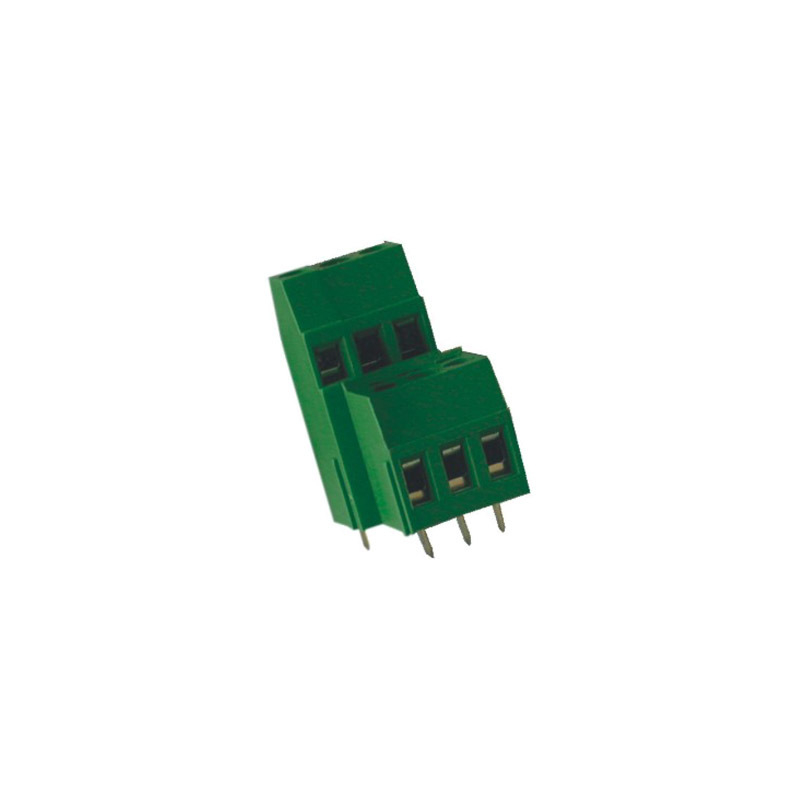

MVD15-V Multi Deck PCB Terminal Blocks

MVD15-V Multi Deck PCB Terminal Blocks

  • 10.16mm Pitch PCB Terminal Block
  • 1-2 Pole Interlocking
  • 13.5 Amp Current rating
  • Moulded in Green UL94-V0 flame retardant PA
  • Rising Clamp Terminal
  • Captive screws
  • Guided pin alignment
  • UL approved
  • Alternative colours available upon request


Code Description Colour Materials (Terminals) Cable Size, Solid (mm2) Cable Size, Flexible (mm2) Materials (Body) Poles Operating Temperature Amperage Pitch Voltage Price
MVD151-10.16 EUROCLAMP PCB TERMINAL BLOCK VERTICAL 13.5A 10.16mm 1 POLE
MVD152-10.16 EUROCLAMP PCB TERMINAL BLOCK VERTICAL 13.5A 10.16mm 2 POLE
MVD153-10.16-V EUROCLAMP PCB TERMINAL BLOCK VERTICAL 13.5A 10.16mm 3 POLE Green Tin-plated copper alloy 1.5 1.5 PA - UL 94 V10 3 -40 to +130?C 13.5 AMP 10.16mm 750V
