Feed Through Terminals - Double Level

Feed Through Terminals - Double Level

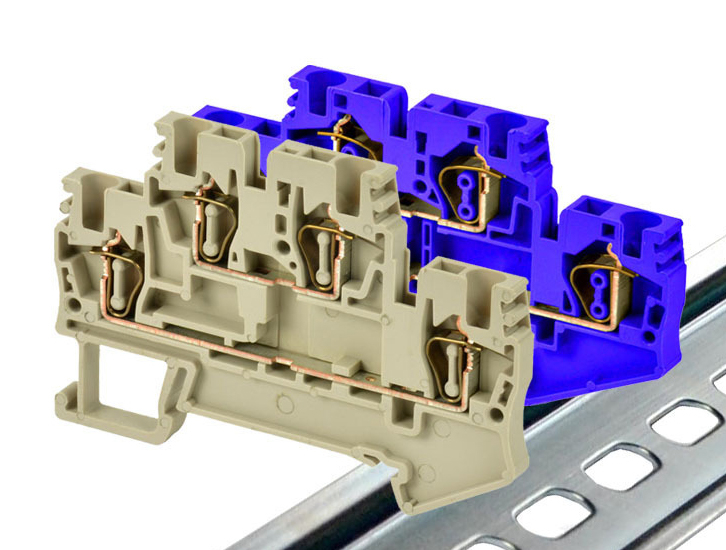

• Screwless Double Level Conductor Din Rail Mount Terminal Blocks
• Available in sizes 1.5mm & 2.5mm
• Spring Type: Easy, Fast Operation, strong Clamping Force
• Vibration Resistant
• Moulded in UL94-V0 flame retardant PA
• Available in Grey, Red, Blue, Black and Orange
• Suitable for Top Hat (Din 35) and G (Din 32) Style Din Rail Profiles
• VDE, cUL Ex approved
• Full range of accessories including End Covers, Insert Bridges, Marking Tags and Din Rail

No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Colour Amperage Materials (Body) Cable Size, Flexible (mm2) Cable Size, Solid (mm2) Voltage Pitch Dimensions (mm) Poles Price
AKK1.5 SCREWLESS DIN TERM GREY 1.5MM DOUBLE LEVEL Grey 17.5 AMP PA 0.14 - 1.5 0.14 - 1.5 500V N/A 4.2 x 46 x 98 2
AKK1.5-BL SCREWLESS DIN TERM BLUE 1.5MM DOUBLE LEVEL Blue 17.5 AMP PA 0.14 - 1.5 0.14 - 1.5 500V N/A 4.2 x 46 x 98 2
AKK2.5 SCREWLESS DIN TERM GREY 2.5MM DOUBLE LEVEL Grey 24 AMP PA 0.2 - 2.5 0.2 - 2.5 800V N/A 5.1 x 46 x 68 2
AKK2.5-BL SCREWLESS DIN TERM BLUE 2.5MM DOUBLE LEVEL Blue 24 AMP PA 0.2 - 2.5 0.2 - 2.5 800V N/A 5.1 x 46 x 68 2
AKK4 SCREWLESS DIN TERM GREY 4MM DOUBLE LEVEL Grey 32 AMP PA 0.2 - 4.0 0.2 - 4.0 800V N/A 6.1 x 46 x 86 4
AKK4-BL SCREWLESS DIN TERM BLUE 4MM DOUBLE LEVEL Blue 32 AMP PA 0.2 - 4.0 0.2 - 4.0 800V N/A 6.1 x 46 x 86 4
