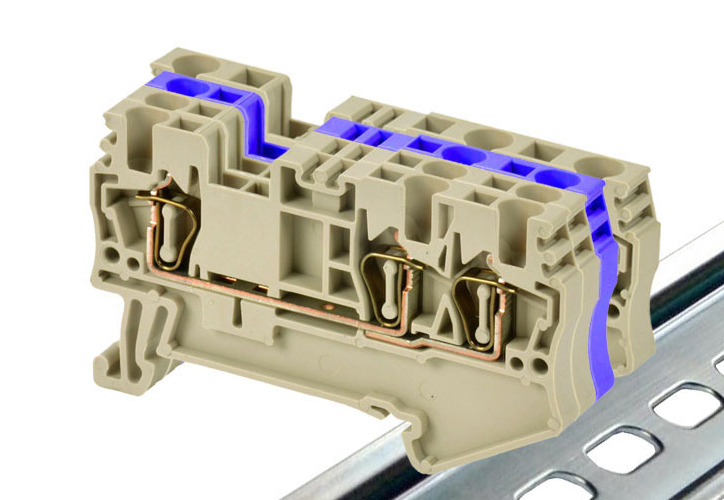

Feed Through Terminals - 3 Conductor

Feed Through Terminals - 3 Conductor

• 2.5mm Feed Through Din Rail Mount Terminal Blocks
• Available in sizes 2.5mm up to 240mm
• Moulded in UL94-V0 flame retardant PA
• Available in Grey, Red, Blue, Black and Orange
• Professional Rising Clamp style terminals
• IP20 Touch proof Captive screws
• Suitable for Top Hat (Din 35) and G (Din 32) Style Din Rail Profiles
• VDE, cUL Ex approved
• Full range of accessories including End Covers, Insert Bridges, Marking Tags and Din Rail

No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Colour Amperage Poles Materials (Body) Cable Size, Flexible (mm2) Cable Size, Solid (mm2) Voltage Pitch Dimensions (mm) Price
AK1.5-TN DINKLE SCREWLESS DIN TERM GREY 1.5MM 3 CONDUCTOR Grey 17.5 AMP 3 PA 0.14 - 1.5 0.14 - 1.5 630V N/A 4.2 x 35 x 60.8
AK1.5-TN-BL DINKLE SCREWLESS DIN TERM BLUE 1.5MM 3 CONDUCTOR Blue 17.5 AMP 3 PA 0.14 - 1.5 0.14 - 1.5 630V N/A 4.2 x 35 x 60.8
AK2.5-TN DINKLE SCREWLESS DIN TERM GREY 2.5MM 3 CONDUCTOR Grey 24 AMP 3 PA 0.2 - 2.5 0.2 - 2.5 800V N/A 5.1 - 35 - 60.8
AK2.5-TN-BL DINKLE SCREWLESS DIN TERM BLUE 2.5MM 3 CONDUCTOR Blue 24 AMP 3 PA 0.2 - 2.5 0.2 - 2.5 800V N/A 5.1 - 35 - 60.8
AK4-TN DINKLE SCREWLESS DIN TERM GREY 4MM 3 CONDUCTOR Grey 32 AMP 3 PA 0.2 - 4.0 0.2 - 4.0 800V N/A 6.1 - 35 - 72.5
AK4-TN-BL DINKLE SCREWLESS DIN TERM BLUE 4MM Blue 32 AMP 3 PA 0.2 - 4.0 0.2 - 4.0 800V N/A 6.1 - 35 - 72.5
AK6-TN DINKLE SCREWLESS DIN TERM GREY 6MM 3 CONDUCTOR Grey 41 AMP 3 PA 0.5 - 6.0 0.5 - 6.0 800V N/A 8 x 42 x 90.5
AK6-TN-BL DINKLE SCREWLESS DIN TERM BLUE 6MM 3 CONDUCTOR Blue 41 AMP 3 PA 0.5 - 6.0 0.5 - 6.0 800V N/A 8 x 42 x 90.5
AK10-TN DINKLE SCREWLESS DIN TERM GREY 10MM 3 CONDUCTOR Grey 57 AMP 3 PA 1.5 - 10.0 1.5 - 10.0 800V N/A 10 x 49.3 x 96.8
AK10-TN-BL DINKLE SCREWLESS DIN TERM BLUE 10MM 3 CONDUCTOR Blue 57 AMP 3 PA 1.5 - 10.0 1.5 - 10.0 800V N/A 11 x 49.3 x 96.8
AK16-TN DINKLE SCREWLESS DIN TERM GREY 16MM 3 CONDUCTOR Grey 76 AMP 3 PA 1.5 - 16.0 1.5 - 16.0 800V N/A 12 x 50.4 x 108.2
AK16-TN-BL DINKLE SCREWLESS DIN TERM BLUE 16MM Blue 76 AMP 3 PA 1.5 - 16.0 1.5 - 16.0 800V N/A 12 x 50.4 x 108.2
