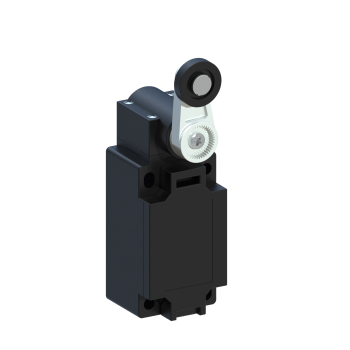

COMEPI PLASTIC LIMIT SWITCH NYLON ROLLER LEVER 1NO1NC SNAP
COMEPI PLASTIC LIMIT SWITCH NYLON ROLLER LEVER 1NO1NC SNAP
Stock Code: BP5H41Z11
Please login to see prices. •Plastic limit switch M20
•IP65 Rated
•Nylon roller lever (∅22mm)
•Snap action contacts
•IEC 60947-5-1 / EN 60947-5-1
•M3.5 screw with cable clamp
Operating Temperature | -25'C..+70'C |
---|---|
Approvals | IMQ - cULus - CCC - CSA - EAC - UKCA |
Cable Size, Flexible (mm2) | 0.75-2.5mm |
Cable Size, Solid (mm2) | 0.75-2.5mm |
Contact Arrangement | Snap action (1NO + 1NC) |
Current Rating | AC-15 - 24V - 10A / 120V - 6A / 400V - 4A // DC-13 - 24V - 6A / 125V - 0.55A / 250V - 0.4A |
Ingress Protection (IP Rating) | IP65 Rated |
Housing | Reinforced thermoplastic |
Resistance (Ohms) | 25 |
Manufacturer/Brand | Comepi |
Terminal Size | M3.5 screw with cable clamp |
