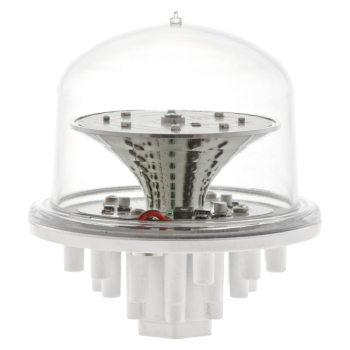

SIRENA AWL HELIX V12/30DC G

Stock Code: 51012

Low intensity helipad perimeter light.

With a lightweight heatsink base, this device is the ideal solution for an efficient and long lasting quality perimeter beacon.

Provided with a green steady light, this device has 2 light sources: horizontal and vertical. The horizontal light is equipped with an optical reflector that guarantees a360° horizontal beam radiation and a vertical beam of +10°. The vertical light has a horizontal beam radiation of 360° and a vertical beam of 120°.

The LED circuit guarantees a long product life estimated in over10 years, as well as  low consumption (1/10 when compared to incandescent bulbs).

Voltage12-30VDC
ColourRED
Operating TemperatureOPERATING TEMPERATURE -25 to +55?C / MAXIMUM SURFACE TEMPERATURE T6 - 85?C
ApprovalsCE
Materials (Body)AL/PC
Dimensions (mm)131.5 x 120
Ingress ProtectionIP65
Light Output LifeLED CIRCUIT, 32 CD - GUARANTEES A LONG PRODUCT LIFE, ESTIMATED OVER 10 YEARS
RPMSTABALIZED LIGHT OUTPUT, 360? HORIZONTAL BEAM RADIATION, VERTICAL 120?
