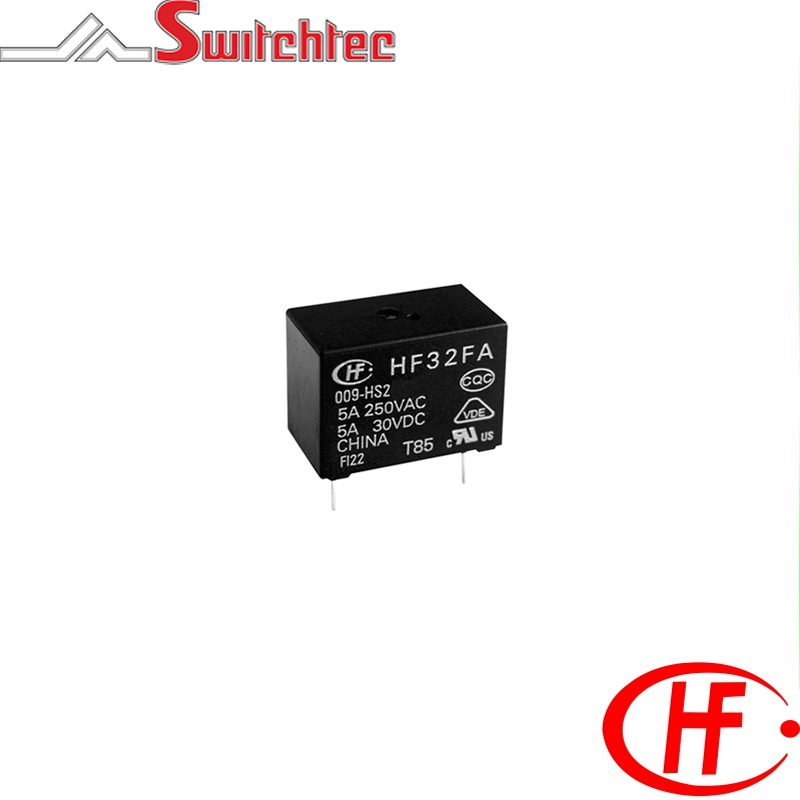

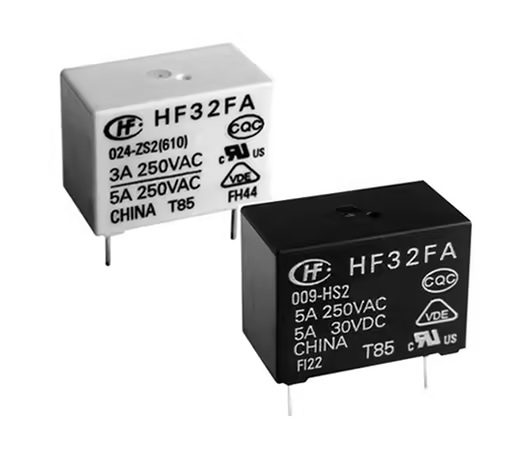

Sensitive Coil, Type 1 Termination

Sensitive Coil, Type 1 Termination

  • 5A Switching capability
  • 1 Form A contacts meets VDE 0700, 0631
  • Wash tight & flux proof versions available
  • Sensitive Coil
  • Creepage/Clearance distance >8mm
  • 5KV Dielectricstrength (between coil and contacts)
  • Contact material AgNi
  • Rohs compliant
  • Safety approvalsUL/CUV & VDE


Code Description Coil Power Coil ? ? 10% Max VDC Drop Out Max VDC Pick Up Max VDC Coil Voltage Contact Arrangement Maximum Rated Switching Current Price
HF32FA003HSL1 HONGFA PCB POWER RELAY 3VDC 5A 1NO HF32FA/003-HSL1 200mW 45 x (1?10%) 5.1 0.15 2.25 3VDC 1A - Single Pole Normally Open 5AMP
HF32FA005HSL1 HONGFA PCB POWER RELAY 5VDC 5A 1NO HF32FA/005-HSL1 200mW 125 x (1?10%) 8.5 0.25 3.75 5VDC 1A - Single Pole Normally Open 5AMP
HF32FA006HSL1 HONGFA PCB POWER RELAY 6VDC 5A 1NO HF32FA/006-HSL1 200mW 180 x (1?10%) 10.2 0.3 4.5 6VDC 1A - Single Pole Normally Open 5AMP
HF32FA009HSL1 HONGFA PCB POWER RELAY 9VDC 5A 1NO HF32FA/009-HSL1 200mW 400 x (1?10%) 15.3 0.45 6.75 9VDC 1A - Single Pole Normally Open 5AMP
HF32FA012HSL1 HONGFA PCB POWER RELAY 12VDC 5A 1NO HF32FA/012-HSL1 200mW 720 x (1?10%) 20.4 0.6 9 12VDC 1A - Single Pole Normally Open 5AMP
HF32FA018HSL1 HONGFA PCB POWER RELAY 18VDC 5A 1NO HF32FA/018-HSL1 200mW 1600 x (1?10%) 30.6 0.901 13.5 18VDC 1A - Single Pole Normally Open 5AMP
HF32FA024HSL1 HONGFA PCB POWER RELAY 24VDC 5A 1NO HF32FA/024-HSL1 200mW 2800 x (1?10%) 40.8 1.2 18 24VDC 1A - Single Pole Normally Open 5AMP
HF32FA048HSL1 HONGFA PCB POWER RELAY 48VDC 5A 1NO HF32FA/048-HSL1 - - - - - - - -
