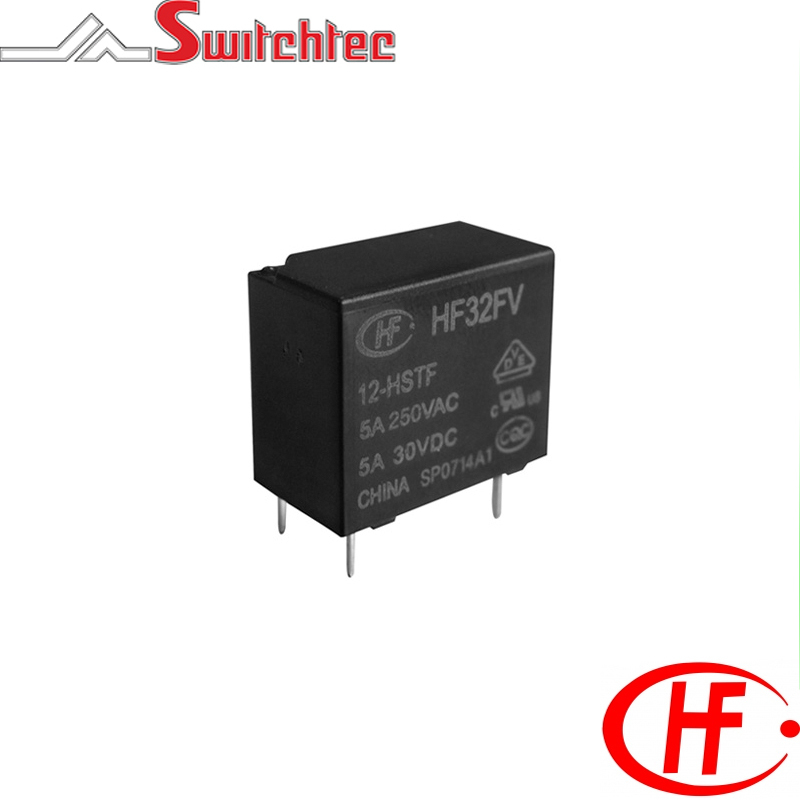

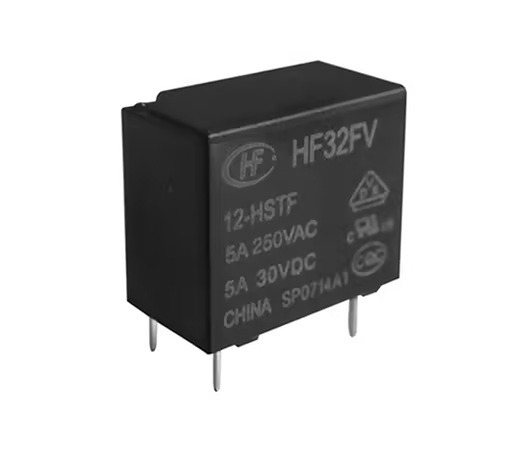

Standard Coil

Standard Coil

  • 5A switching capability
  • Creepage distance 6.5mm
  • 4Kv Dielectric strength (between coils andcontacts)
  • 1 Form A configuration
  • Plastic sealed and flux proofed versions available
  • RoHS compliant
  • Safety approvals UL/CQC & VDE


Code Description Coil Power Coil ? ? 10% Max VDC Drop Out Max VDC Pick Up Max VDC Coil Voltage Contact Arrangement Maximum Rated Switching Current Price
HF32FV003HSTF HONGFA PCB POWER RELAY 3VDC 5A 1NO HF32FV/003-HSTF 450mW 55 x (1?10%) 6.5 0.25 3.75 5VDC 1A - Single Pole Normally Open 5AMP
HF32FV005HSTF HONGFA PCB POWER RELAY 5VDC 5A 1NO HF32FV/005-HSTF 450mW 80 x (1?10%) 7.8 0.3 4.5 6VDC 1A - Single Pole Normally Open 5AMP
HF32FV006HSTF HONGFA PCB POWER RELAY 6VDC 5A 1NO HF32FV/006-HSTF 450mW 180 x (1?10%) 11.7 0.45 6.75 9VDC 1A - Single Pole Normally Open 5AMP
HF32FV009HSTF HONGFA PCB POWER RELAY 9VDC 5A 1NO HF32FV/009-HSTF 450mW 320 x (1?10%) 15.6 0.6 9 12VDC 1A - Single Pole Normally Open 5AMP
HF32FV012HSTF HONGFA PCB POWER RELAY 12VDC 5A 1NO HF32FV/012-HSTF 450mW 720 x (1?10%) 23.4 0.9 13.5 18VDC 1A - Single Pole Normally Open 5AMP
HF32FV018HSTF HONGFA PCB POWER RELAY 18VDC 5A 1NO HF32FV/018-HSTF 450mW 1280 x (1?10%) 31.2 1.2 18 24VDC 1A - Single Pole Normally Open 5AMP
HF32FV024HSTF HONGFA PCB POWER RELAY 24VDC 5A 1NO HF32FV/024-HSTF 450mW 5120 x (1?10%) 62.4 2.4 36 48VDC 1A - Single Pole Normally Open 5AMP
HF32FV048HSTF HONGFA PCB POWER RELAY 48VDC 5A 1NO HF32FV/048-HSTF - - - - - - - -
