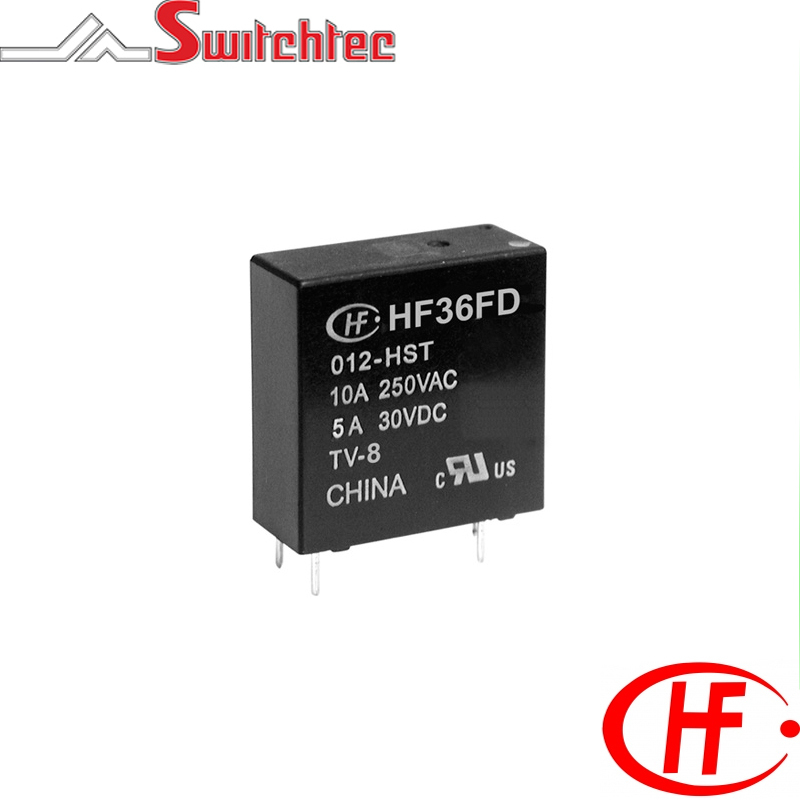

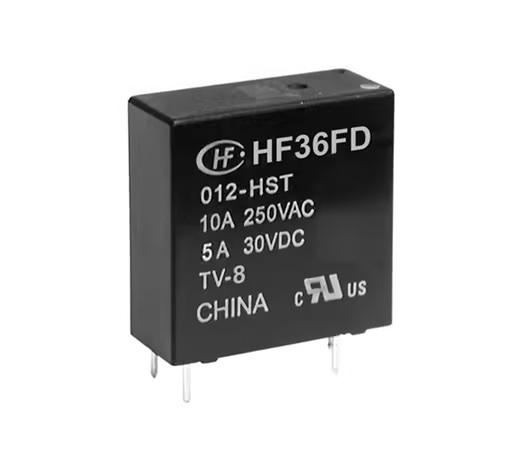

Sensitive Coil

Sensitive Coil

  • 10A switching capability
  • 1 Form A configuration
  • High inrush current TV-8 118A
  • Wash tight
  • TV-5 125VAC approved by UL standards (Form A only)
  • Contact material AgSnO2
  • RoHS compliant
  • Safety approval UL/CUL & TUV
Code Description Coil Power Coil ? ? 10% Max VDC Drop Out Max VDC Pick Up Max VDC Coil Voltage Contact Arrangement Maximum Rated Switching Current Price
HF36FD005HLT HONGFA PCB POWER RELAY 5VDC 10A 1NO HF36F/005-HLT 250mW 100 x (1?10%) 6.5 0.25 4 5VDC 1A - Single Pole Normally Open 10AMP
HF36FD006HLT HONGFA PCB POWER RELAY 6VDC 10A 1NO HF36F/006-HLT 250mW 145 x (1?10%) 7.8 0.3 4.8 6VDC 1A - Single Pole Normally Open 10AMP
HF36FD009HLT HONGFA PCB POWER RELAY 9VDC 10A 1NO HF36F/009-HLT 250mW 325 x (1?10%) 11.7 0.45 7.2 9VDC 1A - Single Pole Normally Open 10AMP
HF36FD012HLT HONGFA PCB POWER RELAY 12VDC 10A 1NO HF36F/012-HLT 250mW 575 x (1?10%) 15.6 0.6 9.6 12VDC 1A - Single Pole Normally Open 10AMP
HF36FD018HLT HONGFA PCB POWER RELAY 18VDC 10A 1NO HF36F/018-HLT 250mW 1300 x (1?10%) 23.4 0.9 14.4 18VDC 1A - Single Pole Normally Open 10AMP
HF36FD024HLT HONGFA PCB POWER RELAY 24VDC 10A 1NO HF36F/024-HLT 250mW 2310 x (1?10%) 31.2 1.2 19.2 24VDC 1A - Single Pole Normally Open 10AMP
HF36FD048HLT HONGFA PCB POWER RELAY 48VDC 10A 1NO HF36F/048-HLT - - - - - - - -
