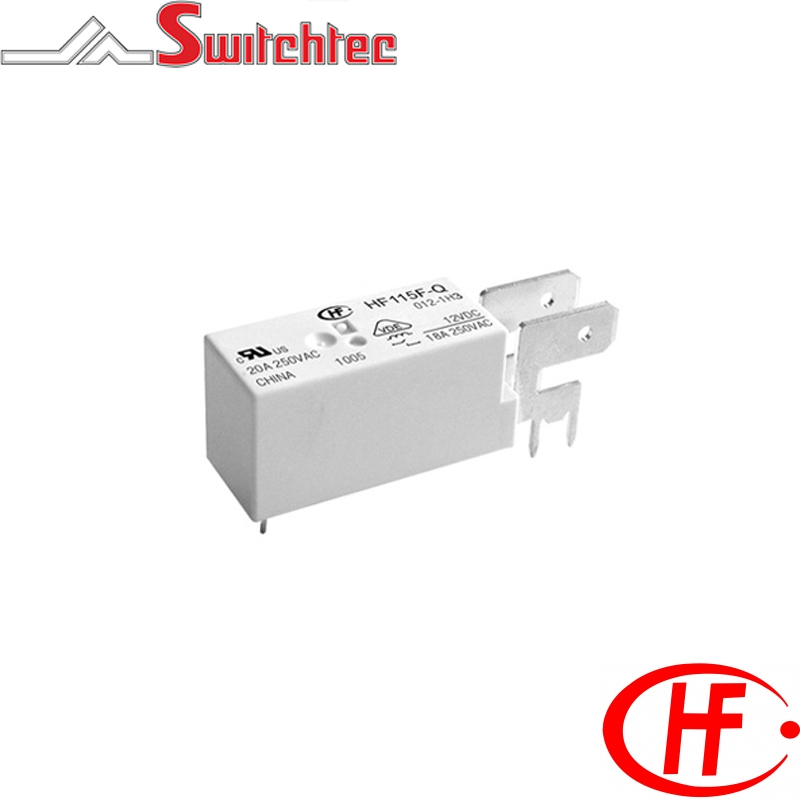

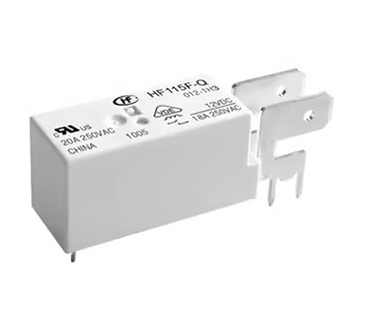

Horizontal Quick Connect Terminals

  • 20 amp switching capacity
  • High ambient temperature up to 125 C
  • Low height: 15.7mm
  • 1 Form A contact
  • 5KV dielectric strength (between coil & contacts)
  • Creepage distance 8mm
  • Contact Material AgSnO2
  • Class F Insulation
  • UL94, V-0 flammability class
  • Approvals UL, CUL & VDE
  • Meets VDE 0435/0110/0631/0700
  • RoHS Compliant
  • Relays compliant with IEC 60335 -1 also available



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
