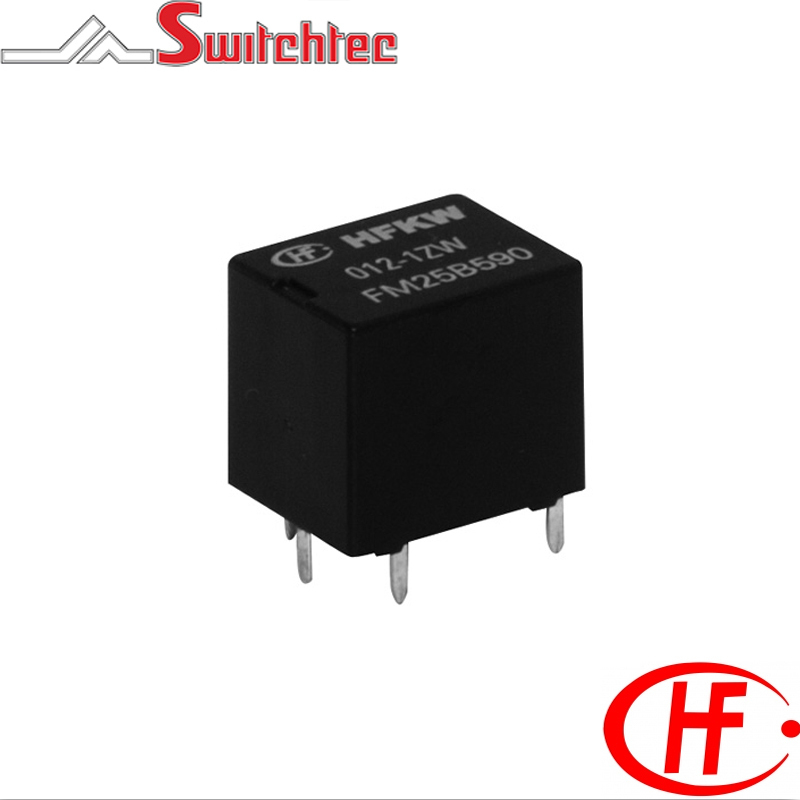

15 Amp - 1 Pole Normally Open 1 Form A

15 Amp - 1 Pole Normally Open 1 Form A



    • High current carrying capacity (35A/10min & 25A 1Hr)



    • Switching capacity up to 20A



    • 1 Form A



    • High resistance to vibration and shock



    • Sealed IP67



    • Contact materials AgSnO2



    • RoHS & ELV compliant


Code Description Coil Power Coil ? ? 10% Max VDC Drop Out Max VDC Pick Up Max VDC Coil Voltage Contact Arrangement Maximum Rated Switching Current Price
HFKW-006-1H-W HONGFA AUTOMOTIVE RELAY 6VDC 15A 1NO HFKW/006-1HW 0.6W 60 x (1?10%) 23?C - 10 / 85?C - 8 0.5 23?C - 3.6 / 85?C - 4.5 6VDC 1a - Single Pole Normally Open 25AMP
HFKW-009-1H-W HONGFA AUTOMOTIVE RELAY 9VDC 15A 1NO HFKW/009-1HW 0.6W 135 x (1?10%) 23?C - 15 / 85?C - 12 0.7 23?C - 5.4 / 85?C - 6.8 9VDC 1a - Single Pole Normally Open 25AMP
HFKW-010-1H-W HONGFA AUTOMOTIVE RELAY 10VDC 15A 1NO HFKW/010-1HW 0.6W 180 x (1?10%) 23?C - 16.7 / 85?C - 13.3 0.9 23?C - 6.3 / 85?C - 7.9 10VDC 1a - Single Pole Normally Open 25AMP
HFKW-012-1H-W HONGFA AUTOMOTIVE RELAY 12VDC 15A 1NO HFKW/012-1HW 0.6W 240 x (1?10%) 23?C - 20 / 85?C - 16 1 23?C - 7.3 / 85?C - 9.0 12VDC 1a - Single Pole Normally Open 25AMP
HFKW-018-1H-W HONGFA AUTOMOTIVE RELAY 18VDC 15A 1NO HFKW/018-1HW 0.6W 540 x (1?10%) 23?C - 30 / 85?C - 24 1.5 23?C - 10.8 / 85?C - 13.5 18VDC 1a - Single Pole Normally Open 25AMP
HFKW-024-1H-W HONGFA AUTOMOTIVE RELAY 24VDC 15A 1NO HFKW/024-1HW 0.6W 960 x (1?10%) 23?C - 40 / 85?C - 32 2.2 23?C - 14.4 / 85?C - 18.0 24VDC 1a - Single Pole Normally Open 25AMP
