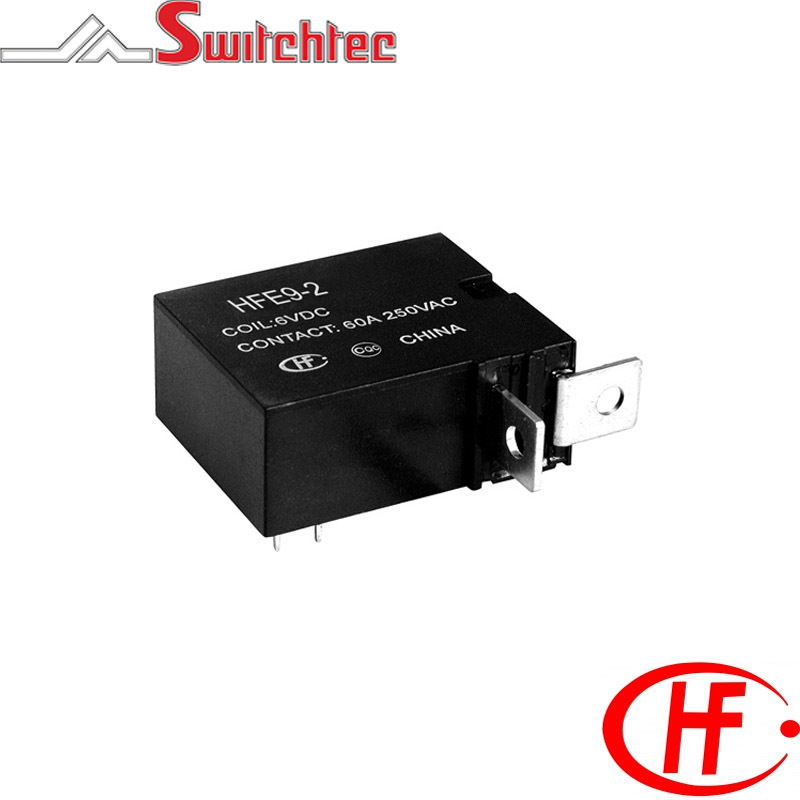

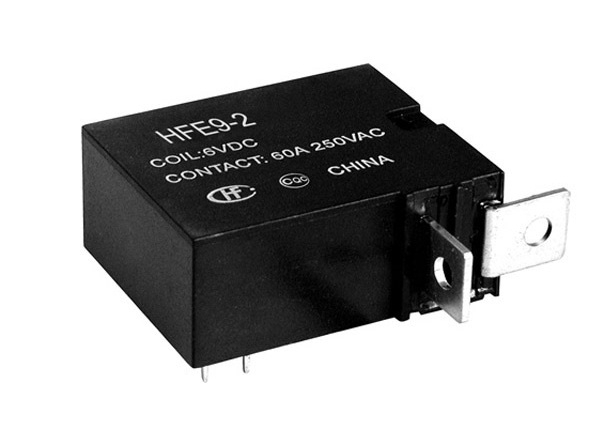

Single Coil Latching

Single Coil Latching



    • 60A switching capacity



    • 4Kv dielectric strength between coil and contacts



    • 1 Form B contact arrangement



    • Contact material AgSn02



    • Shunt’s available on request



    • RoHS compliant



    • Approvals UL & CUR


Code Description Pulse Duration ms min. Coil Power Coil ? ? 10% Pick Up Max VDC Coil Voltage Contact Arrangement Maximum Rated Switching Current Price
HFE915DST HONGFA INDUSTRIAL RELAY 5VDC 60A 1NC HFE9-1/005-DST 50 1000mW 24 x (1?10%) 3.5 5VDC 1B - Single Pole Normally Closed 60AMP
HFE916DST HONGFA INDUSTRIAL RELAY 6VDC 60A 1NC HFE9-1/006-DST 50 1000mW 35 x (1?10%) 4.2 6VDC 1B - Single Pole Normally Closed 60AMP
HFE919DST HONGFA INDUSTRIAL RELAY 9VDC 60A 1NC HFE9-1/009-DST 50 1000mW 80 x (1?10%) 6.3 9VDC 1B - Single Pole Normally Closed 60AMP
HFE9112DST HONGFA INDUSTRIAL RELAY 12VDC 60A 1NC HFE9-1/012-DST 50 1000mW 145 x (1?10%) 8.4 12VDC 1B - Single Pole Normally Closed 60AMP
HFE9124DST HONGFA INDUSTRIAL RELAY 24VDC 60A 1NC HFE9-1/024-DST 50 1000mW 575 x (1?10%) 16.8 24VDC 1B - Single Pole Normally Closed 60AMP
HFE9148DST HONGFA INDUSTRIAL RELAY 48VDC 60A 1NC HFE9-1/048-DST 50 1000mW 2270 x (1?10%) 33.6 48VDC 1B - Single Pole Normally Closed 60AMP
