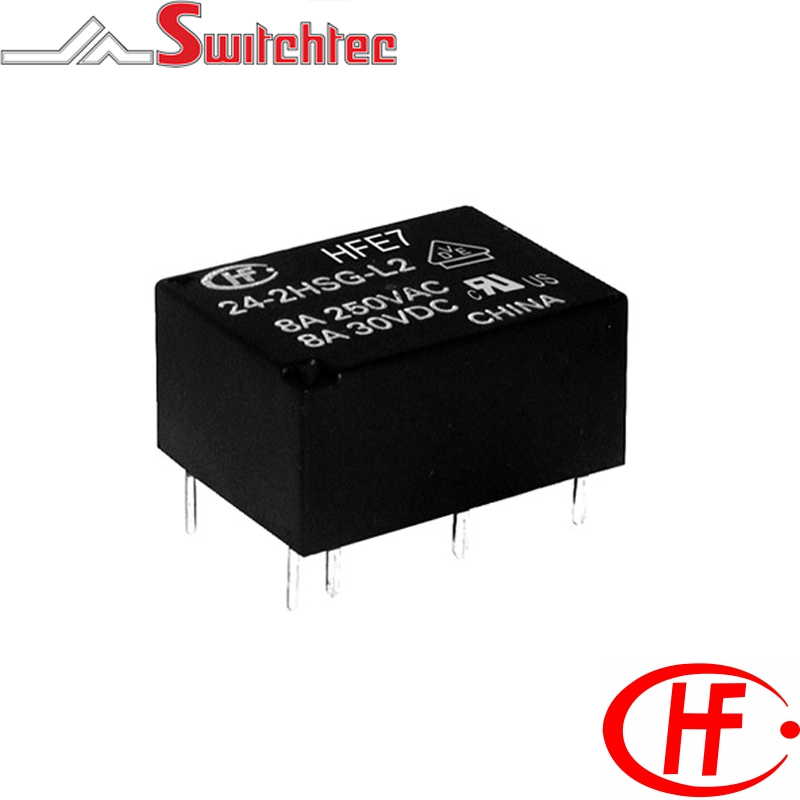

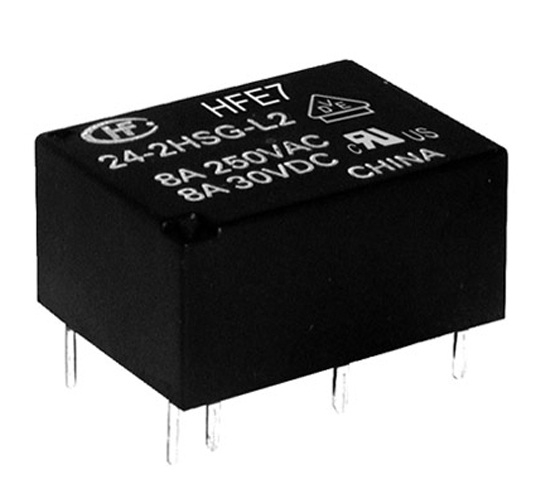

1 Coil Latching

1 Coil Latching



    • High switching capacity: 1A: 10A 250VAC / 8A: 30VDC / 2A: 8A 250VAC/30VDC



    • High sensitivity – 200mW



    • Single side stable and latching types available



    • 4Kv dielectric strength between coil and contacts



    • 1 Form A contact arrangement



    • Contact material AgNi. AgNi + Au available upon request



    • RoHS compliant



    • Approvals UL & CUR



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Maximum Rated Switching Current Pick Up Max VDC Coil ? � 10% Set/Reset Voltage VDC Max Pulse Duration ms min. Price
HFE70092HSL1 HONGFA LATCHING RELAY 9VDC 8A 2NO HFE7/009-2HS-L1 2A - Double Pole Normally Open 9VDC 420mW 8 AMP 6.3 85.7 6.3 50
HFE70122HSL1 HONGFA LATCHING RELAY 12VDC 8A 2NO HFE7/012-2HS-L1 2A - Double Pole Normally Open 12VDC 420mW 8 AMP 8.4 192.9 8.4 50
HFE70242HSL1 HONGFA LATCHING RELAY 24VDC 8A 2NO HFE7/024-2HS-L1 2A - Double Pole Normally Open 24VDC 420mW 8 AMP 16.4 1371.4 16.4 50
