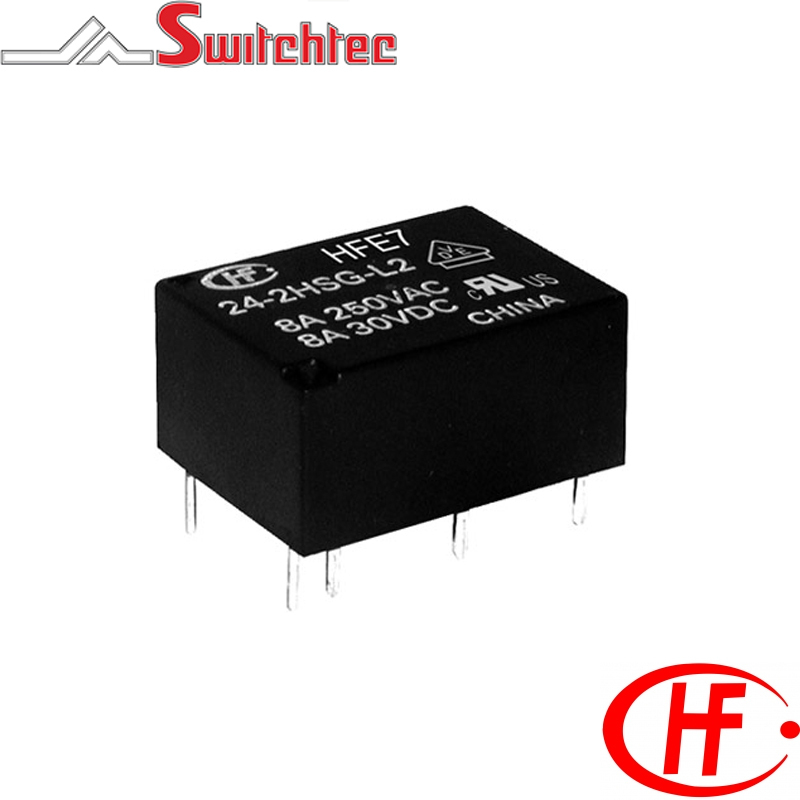

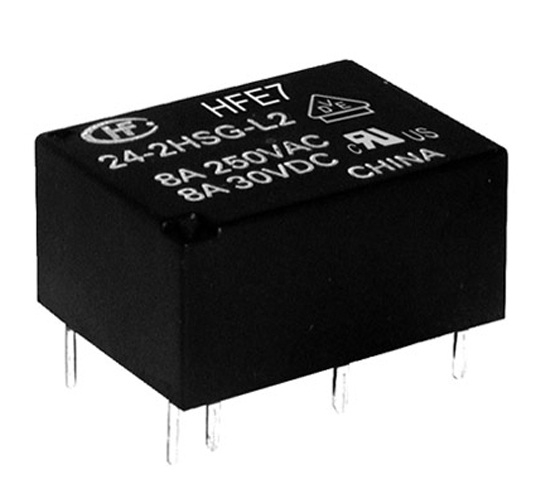

1 Coil Latching

1 Coil Latching



    • High switching capacity: 1A: 10A 250VAC / 8A: 30VDC / 2A: 8A 250VAC/30VDC



    • High sensitivity – 200mW



    • Single side stable and latching types available



    • 4Kv dielectric strength between coil and contacts



    • 1A +1B contact arrangement



    • Contact material AgNi. AgNi + Au available upon request



    • RoHS compliant



    • Approvals UL & CUR



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Maximum Rated Switching Current Pick Up Max VDC Coil ? � 10% Set/Reset Voltage VDC Max Pulse Duration ms min. Price
HFE70061HDSTL1 HONGFA LATCHING RELAY 6VDC 8A 1NO+1NC HFE7/006-1HDST-L1 1HD - Single Pole Normally Open + Single Pole Normally Closed 6VDC 300mW 8AMP 4.2 120 x (1�10%) 4.2 50
HFE70091HDSTL1 HONGFA LATCHING RELAY 9VDC 8A 1NO+1NC HFE7/009-1HDST-L1 1HD - Single Pole Normally Open + Single Pole Normally Closed 9VDC 300mW 8AMP 6.3 270 x (1�10%) 6.3 50
HFE70121HDSTL1 HONGFA LATCHING RELAY 12VDC 8A 1NO+1NC HFE7/012-1HDST-L1 1HD - Single Pole Normally Open + Single Pole Normally Closed 12VDC 300mW 8AMP 8.4 480 x (1�10%) 8.4 50
HFE70241HDSTL1 HONGFA LATCHING RELAY 24VDC 8A 1NO+1NC HFE7/024-1HDST-L1 1HD - Single Pole Normally Open + Single Pole Normally Closed 24VDC 300mW 8AMP 16.4 1920 x (1�10%) 16.4 50
