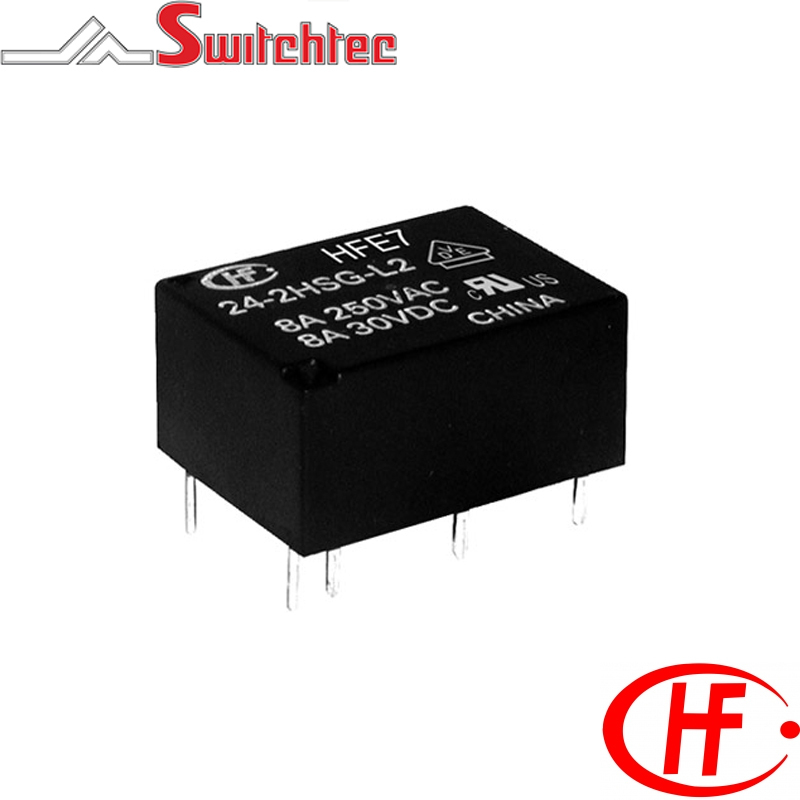

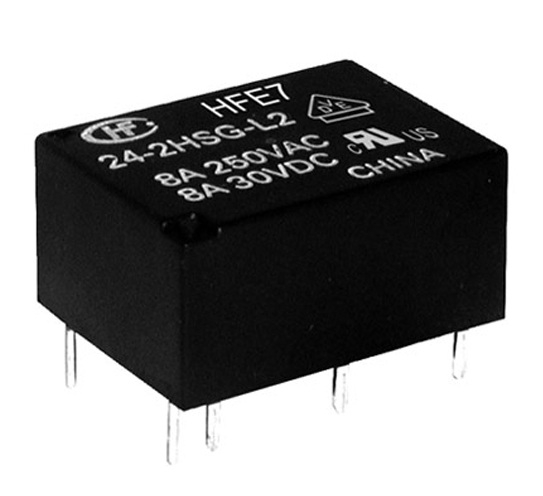

1 Coil Latching

1 Coil Latching



    • High switching capacity: 1A: 10A 250VAC / 8A: 30VDC / 2A: 8A 250VAC/30VDC



    • High sensitivity – 200mW



    • Single side stable and latching types available



    • 4Kv dielectric strength between coil and contacts



    • 1 Form A contact arrangement



    • Contact material AgNi. AgNi + Au available upon request



    • RoHS compliant



    • Approvals UL & CUR



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Maximum Rated Switching Current Pick Up Max VDC Coil ? � 10% Set/Reset Voltage VDC Max Pulse Duration ms min. Price
HFE70061HSL1 HONGFA LATCHING RELAY 6VDC 8A 1NO HFE7/006-1HS-L1 1A - Single Pole Normally Open 6VDC 300mW 10 AMP 4.2 120 4.2 50
HFE70091HSL1 HONGFA LATCHING RELAY 9VDC 8A 1NO HFE7/009-1HS-L1 1A - Single Pole Normally Open 9VDC 300mW 10 AMP 6.3 270 6.3 50
HFE70121HSL1 HONGFA LATCHING RELAY 12VDC 8A 1NO HFE7/012-1HS-L1 1A - Single Pole Normally Open 12VDC 300mW 10 AMP 8.4 480 8.4 50
HFE70241HSL1 HONGFA LATCHING RELAY 24VDC 8A 1NO HFE7/024-1HS-L1 1A - Single Pole Normally Open 24VDC 300mW 10 AMP 16.4 1920 16.4 50
