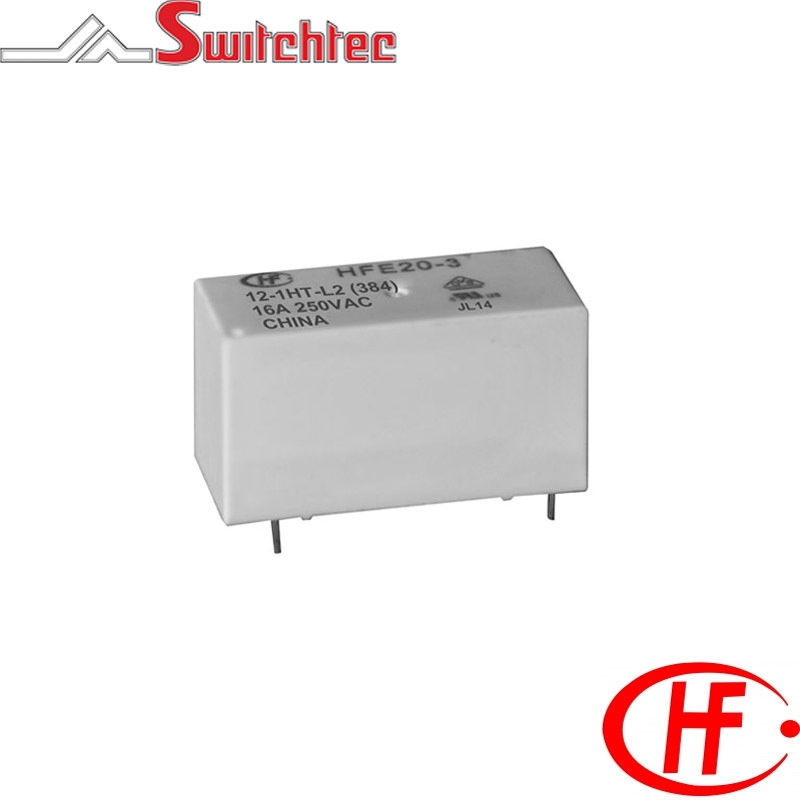

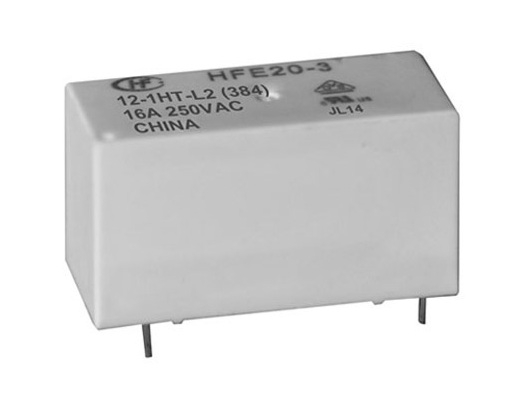

Double Coil Latching

Descriptions

16A 250VAC switching capacity

High inrush peak current

4.4Kv dielectric strength between coil and contacts

1 Form A contact arrangement

Contact material AgSn02

Reverse coil polarity also available

RoHS compliant

Approvals UL & CUR

Specifications

No detailed specifications are available for this product.

Downloads

There are no downloads for this product.

Code	Description	Contact Arrangement	Coil Voltage	Coil Power	Maximum Rated Switching Current	Pick Up Max VDC	Coil ? � 10%	Pulse Duration ms min.	Price
HFE2020061HTL2	HONGFA LATCHING RELAY 6VDC 20A 1NO HFE20-2/006-1HT-L2	1A - Single Pole Normally Open	6VDC	600mW	16AMP	4.8	60 + 60 x (1�10%)	15	Please login to see prices.
HFE2020121HTL2	HONGFA LATCHING RELAY 12VDC 20A 1NO HFE20-2/012-1HT-L2	1A - Single Pole Normally Open	12VDC	600mW	16AMP	9.6	240 + 240 x (1�10%)	15	Please login to see prices.
HFE2020241HTL2	HONGFA LATCHING RELAY 24VDC 20A 1NO HFE20-2/024-1HT-L2	1A - Single Pole Normally Open	24VDC	600mW	16AMP	19.2	886 + 886 x (1�10%)	15	Please login to see prices.
