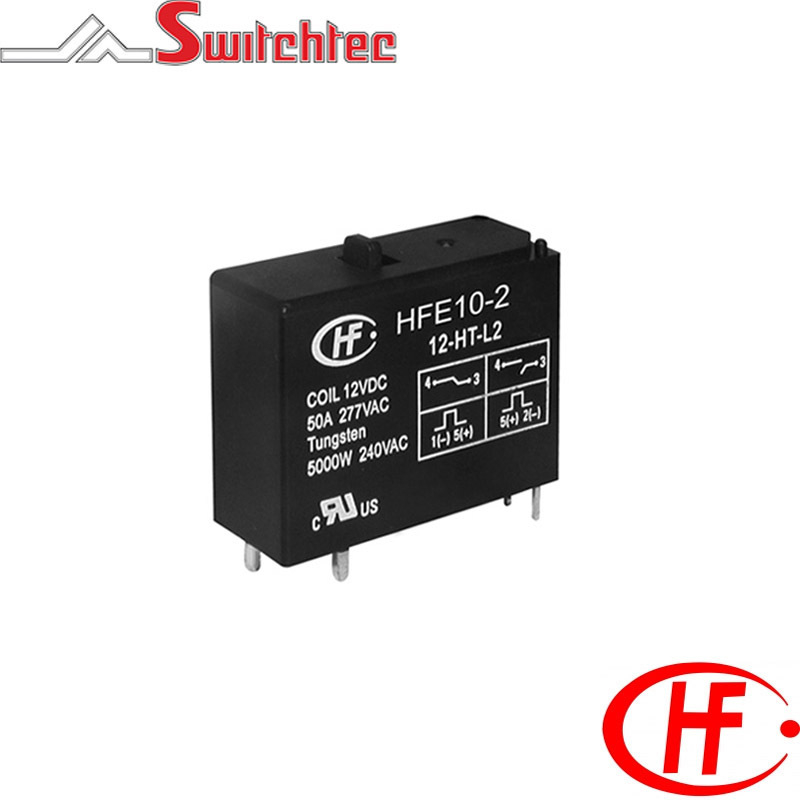

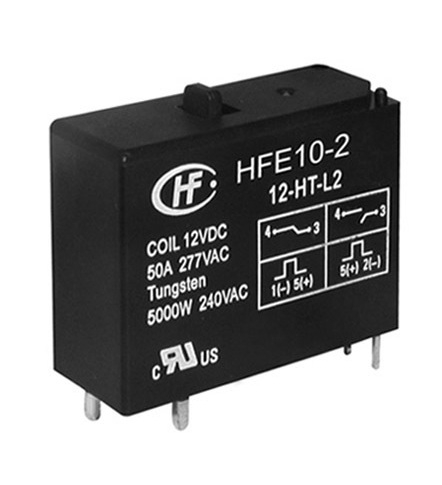

Double Coil Latching

Double Coil Latching



    • 50A 250VAC contact switching capacity



    • Lamp load up to 5000W



    • 1 Form B



    • Capacitor load up to 200uF (min inrush current at 500A/10us)



    • 4Kv dielectric strength between coil and contacts



    • Creepage distance 8mm



    • Standard and reverse polarity types available



    • Manual switch option



    • Contact material AgSn02



    • Wash tight available for the HFE101



    • RoHS compliant



    • Approvals UL & CUR


Code Description Maximum Rated Switching Current Contact Arrangement Coil Voltage Max VDC Coil ? ? 10% Coil Power Set/Reset Voltage VDC Max Pulse Duration ms min. Price
HFE103005DSTL2 HONGFA LATCHING RELAY 5VDC 50A PCB HFE10-3/005-DST-L2 50AMP 1B- Single Pole Normally Closed 5VDC 6.5 8.4 + 8.4 x (1?10%) 3000mW 4 50
HFE103006DSTL2 HONGFA LATCHING RELAY 6VDC 50A PCB HFE10-3/006-DST-L2 50AMP 1B- Single Pole Normally Closed 6VDC 7.8 12 + 12 x (1?10%) 3000mW 4.8 50
HFE103009DSTL2 HONGFA LATCHING RELAY 9VDC 50A PCB HFE10-3/009-DST-L2 50AMP 1B- Single Pole Normally Closed 9VDC 11.7 27 + 27 x (1?10%) 3000mW 7.2 50
HFE103012DSTL2 HONGFA LATCHING RELAY 12DC 50A PCB HFE10-3/012-DST-L2 50AMP 1B- Single Pole Normally Closed 12VDC 15.6 48 + 48 x (1?10%) 3000mW 9.6 50
HFE103024DSTL2 HONGFA LATCHING RELAY 24DC 50A PCB HFE10-3/024-DST-L2 50AMP 1B- Single Pole Normally Closed 24VDC 31.2 192 + 192 x (1?10%) 3000mW 19.2 50
HFE103048DSTL2 HONGFA LATCHING RELAY 48DC 50A PCB HFE10-3/048-DST-L2 50AMP 1B- Single Pole Normally Closed 48VDC 62.4 768 + 768 x (1?10%) 3000mW 38.4 50
