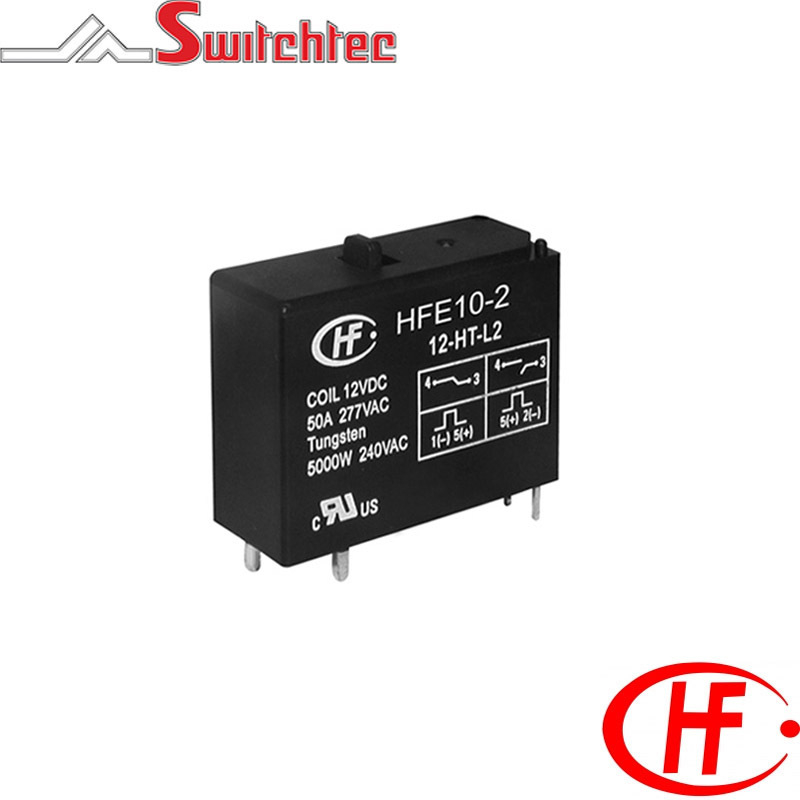

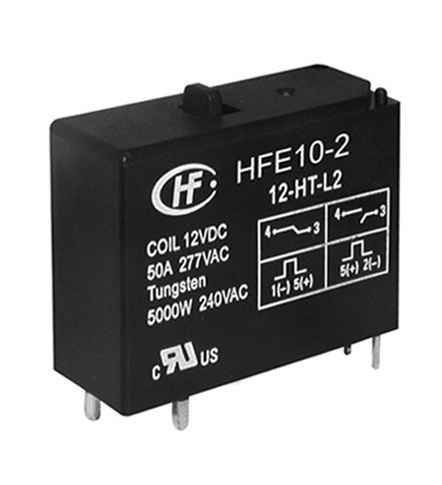

Single Coil Latching

Single Coil Latching



    • 50A 250VAC contact switching capacity



    • Lamp load up to 5000W



    • Form C contact as standard



    • Capacitor load up to 200uF (min inrush current at 500A/10us)



    • 4Kv dielectric strength between coil and contacts



    • Creepage distance 8mm



    • Standard and reverse polarity types available



    • Manual switch option



    • Contact material AgSn02



    • Wash tight available for the HFE101



    • RoHS compliant



    • Approvals UL & CUR


Code Description Pulse Duration ms min. Set/Reset Voltage VDC Max Coil Power Coil ? ? 10% Max VDC Coil Voltage Contact Arrangement Maximum Rated Switching Current Price
HFE103005ZSTL1 HONGFA LATCHING RELAY 5VDC 50A PCB HFE10-3/005-ZST-L1 50 4 1500mW 16.8 x (1?10%) 6.5 5VDC 1C - Single Pole Changeover 50AMP
HFE103006ZSTL1 HONGFA LATCHING RELAY 6VDC 50A PCB HFE10-3/006-ZST-L1 50 4.8 1500mW 24 x (1?10%) 7.8 6VDC 1C - Single Pole Changeover 50AMP
HFE103009ZSTL1 HONGFA LATCHING RELAY 9VDC 50A PCB HFE10-3/009-ZST-L1 50 7.2 1500mW 54 x (1?10%) 11.7 9VDC 1C - Single Pole Changeover 50AMP
HFE103012ZSTL1 HONGFA LATCHING RELAY 12VDC 50A PCB HFE10-3/012-ZST-L1 50 9.6 1500mW 96 x (1?10%) 15.6 12VDC 1C - Single Pole Changeover 50AMP
HFE103024ZSTL1 HONGFA LATCHING RELAY 24VDC 50A PCB HFE10-3/024-ZST-L1 50 19.2 1500mW 384 x (1?10%) 31.2 24VDC 1C - Single Pole Changeover 50AMP
HFE103048ZSTL1 HONGFA LATCHING RELAY 48VDC 50A PCB HFE10-3/048-ZST-L1 50 38.4 1500mW 1536 x (1?10%) 62.4 48VDC 1C - Single Pole Changeover 50AMP
