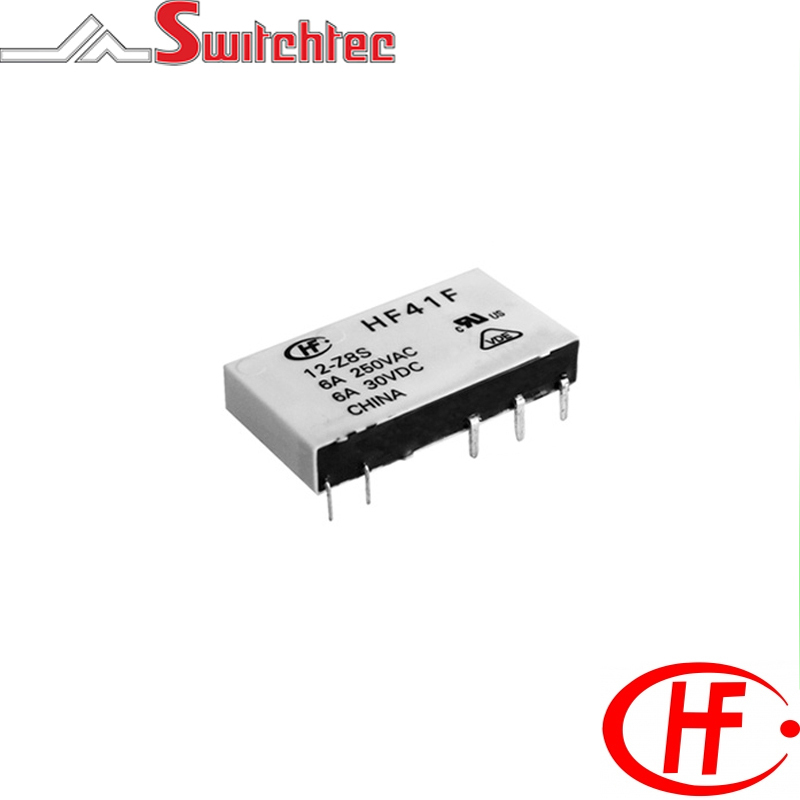

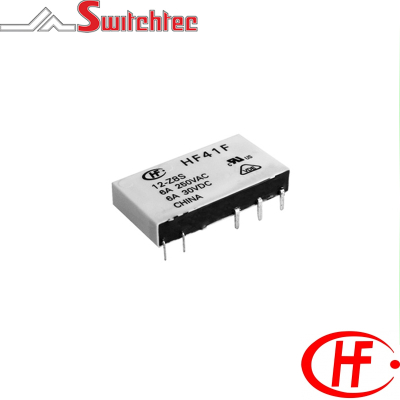

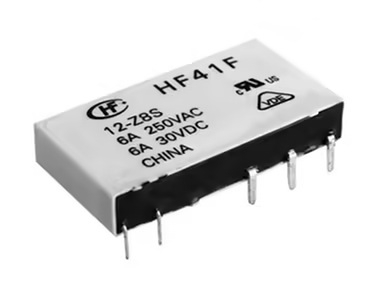

Flat Pack

Flat Pack

  • Slim size, 5mm
  • 6 Amp switching capacity
  • 1 Form C contact
  • 4KV high break down voltage between coil and contacts
  • Surge voltage up to 6kV (coil and contacts)
  • Wash tight
  • Creepage and Clearance: 8mm
  • High sensitive coils (170mW 5 to 24VDC) (210mW, 48 & 60VDC)
  • Contact materials AgNi. Gold plated available
  • RoHS compliant
  • Approvals UL & CUL
  • Flatpack version
  • Din Rail Plug in socket available



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
