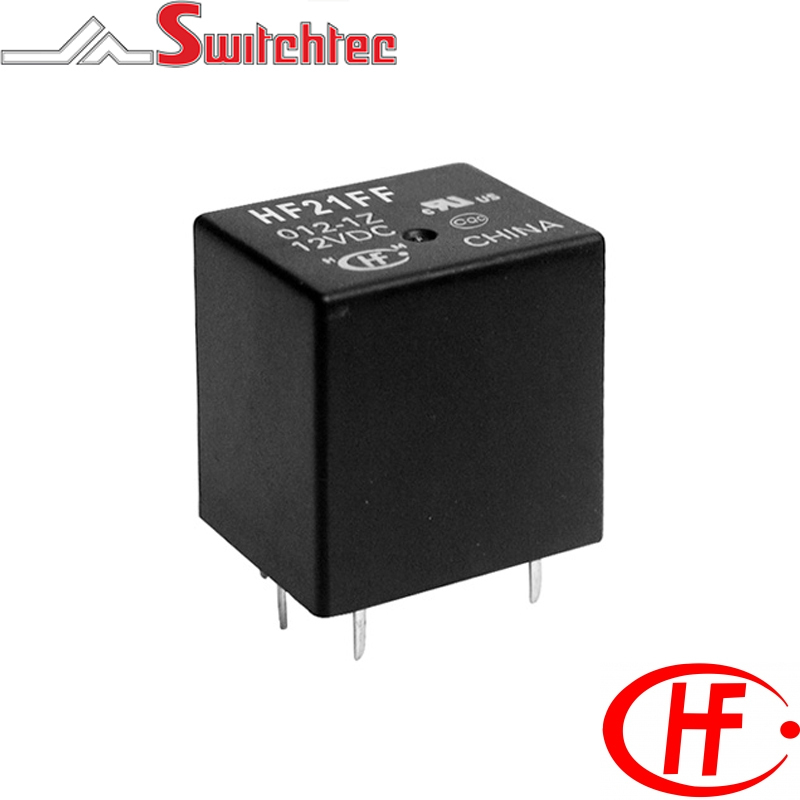

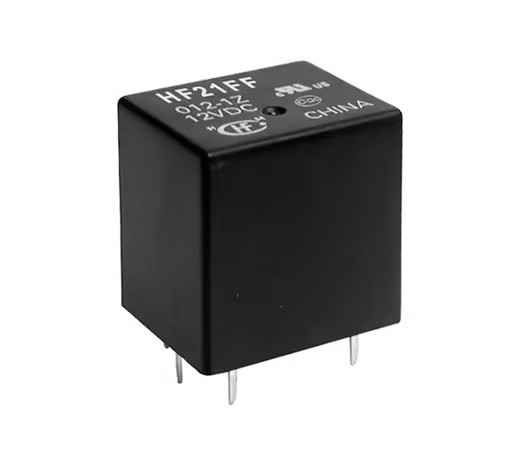

15 Amp 1 Pole Normally Open Relay

15 Amp 1 Pole Normally Open Relay

  • 15 amp 1 Form A
  • Fully sealed
  • Wash Tight
  • 360mW & 530mW coils
  • Contact Material AgSnO2
  • RoHS Complaint
  • Approvals UL/CUL & TUV


Code Description Coil Power Coil ? ? 10% Max VDC Drop Out Max VDC Pick Up Max VDC Coil Voltage Contact Arrangement Maximum Rated Switching Current Price
HF21FF0051HSTF HONGFA PCB CUBE RELAY 5VDC 15A SPNO HF21FF/005-1HSTF 360mW 70 x (1?10%) 6.5 0.5 3.8 5VDC 1A - Single Pole Normally Open 15 AMP
HF21FF0061HSTF HONGFA PCB CUBE RELAY 6VDC 15A SPNO HF21FF/006-1HSTF 360mW 100 x (1?10%) 7.8 0.6 4.5 6VDC 1A - Single Pole Normally Open 15 AMP
HF21FF0091HSTF HONGFA PCB CUBE RELAY 9VDC 15A SPNO HF21FF/009-1HSTF 360mW 225 x (1?10%) 11.7 0.9 6.8 9VDC 1A - Single Pole Normally Open 15 AMP
HF21FF0121HSTF HONGFA PCB CUBE RELAY 12VDC 15A SPNO HF21FF/012-1HSTF 360mW 400 x (1?10%) 15.6 1.2 9 12VDC 1A - Single Pole Normally Open 15 AMP
HF21FF0181HSTF HONGFA PCB CUBE RELAY 18VDC 15A SPNO HF21FF/018-1HSTF 360mW 900 x (1?10%) 23.4 1.8 13.5 18VDC 1A - Single Pole Normally Open 15 AMP
HF21FF0241HSTF HONGFA PCB CUBE RELAY 24VDC 15A SPNO HF21FF/024-1HSTF 360mW 1600 x (1?15%) 31.2 2.4 18 24VDC 1A - Single Pole Normally Open 15 AMP
HF21FF0481HSTF HONGFA PCB CUBE RELAY 48VDC 15A SPNO HF21FF/048-1HSTF 530mW 4500 x (1?15%) 62.4 4.8 36 48VDC 1A - Single Pole Normally Open 15 AMP
