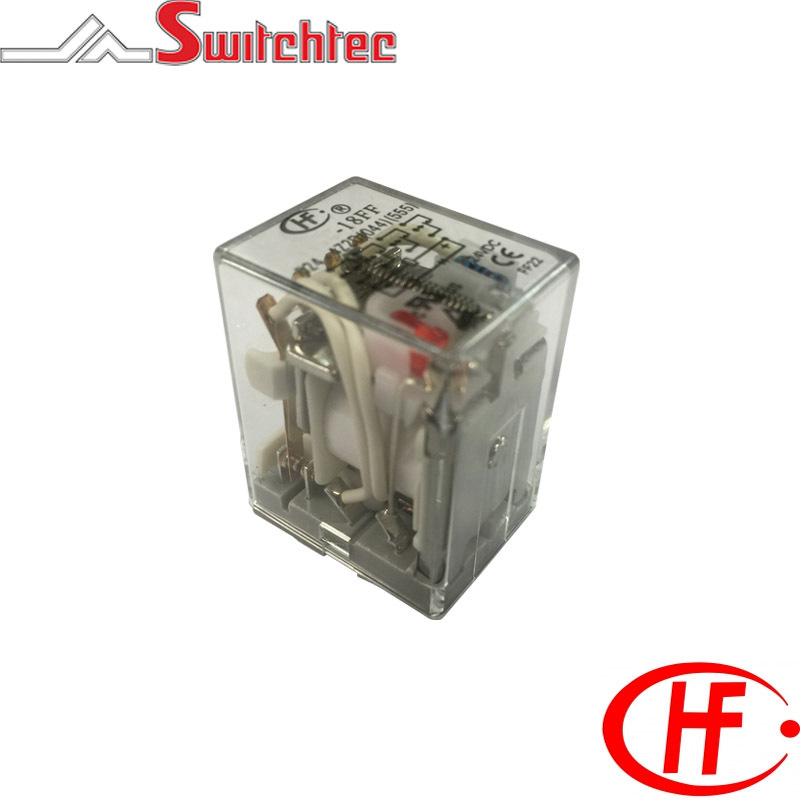

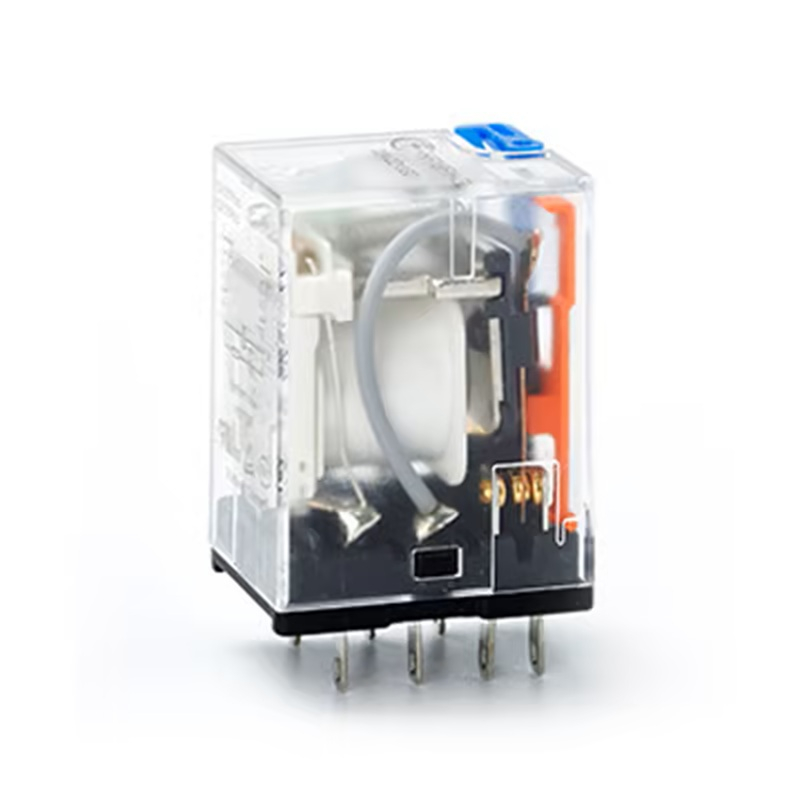

7 Amp 3 Pole Changeover - 3 Form C

7 Amp 3 Pole Changeover - 3 Form C

  • 7 Amp switching capacity
  • 1.5kV dielectric strength between coil and contact
  • AC Coil version
  • 3 pole configuration
  • LED indication available
  • Contact material silver alloy. Silveralloy + Au plated available
  • RoHS compliant
  • Dust protected
  • Approvals UL/CUR, TUV and CQC


Code Description Coil Power Coil ? ? 10% Max VDC Drop Out Max VDC Pick Up Max VDC Coil Voltage Contact Arrangement Maximum Rated Switching Current Price
HF18FFA0063Z1D HONGFA PCB POWER RELAY 6VAC 7A 3P HF18FF/A006-3Z1D(044) 1.2 - 1.8VA 11.5 x (1?10%) 6.6 1.8 4.8 6VAC 3C - 3 Pole Changeover 7 AMP
HF18FFA0123Z1D HONGFA PCB POWER RELAY 12VAC 7A 3P HF18FF/A012-3Z1D(044) 1.2 - 1.8VA 46 x (1?10%) 13.2 3.6 9.6 12VAC 3C - 3 Pole Changeover 7 AMP
HF18FFA0243Z1D HONGFA PCB POWER RELAY 24VAC 7A 3P HF18FF/A024-3Z1D(044) 1.2 - 1.8VA 184 x (1?10%) 26.4 7.2 19.2 24VAC 3C - 3 Pole Changeover 7 AMP
HF18FFA0483Z1D HONGFA PCB POWER RELAY 48VAC 7A 3P HF18FF/A048-3Z1D(044) 1.2 - 1.8VA 735 x (1?10%) 52.4 14.4 38.4 48VAC 3C - 3 Pole Changeover 7 AMP
HF18FFA1203Z1D HONGFA PCB POWER RELAY 120VAC 7A 3P HF18FF/A120-3Z1D(044) 1.2 - 1.8VA 4550 x (1?10%) 132 36 88 120VAC 3C - 3 Pole Changeover 7 AMP
HF18FFA2403Z1D HONGFA PCB POWER RELAY 240VAC 7A 3P HF18FF/A240-3Z1D(044) 1.2 - 1.8VA 18790 x (1?10%) 264 72 176 240VAC 3C - 3 Pole Changeover 7 AMP
