High Dielectric Strength (4000VAC Between Coil & Contacts)

High Dielectric Strength (4000VAC Between Coil & Contacts)

No detailed description is available for this product.

No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price

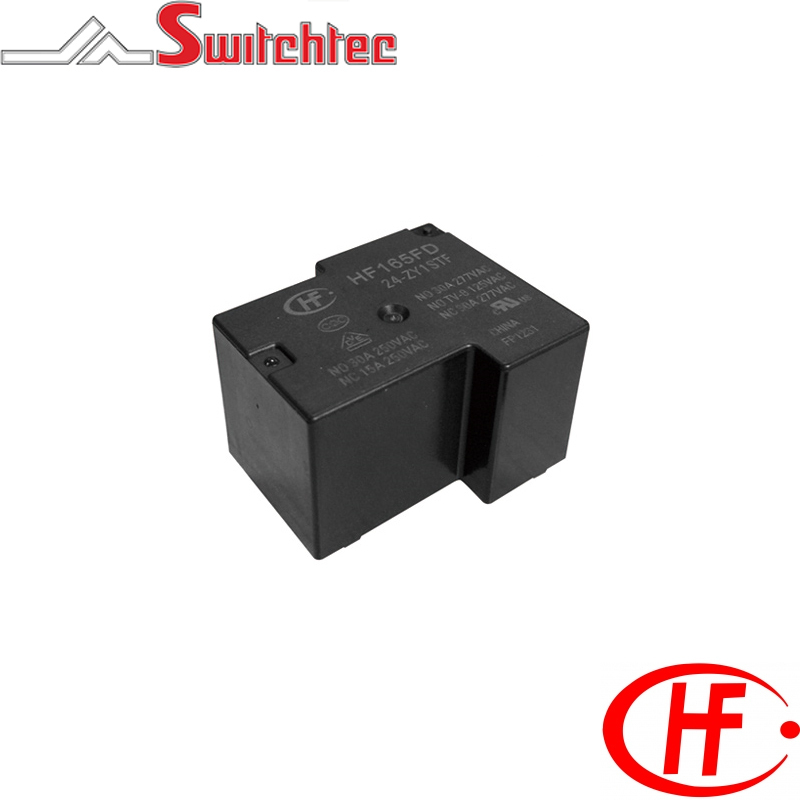

HF165FD006HY1TFV HONGFA PCB POWER RELAY 6VDC 30A 1NO HF165FD/006-HY1TFV 1A - Single Pole Normally Open 6VDC 900mW 7.8 30AMP 4.5 0.6 40 x (1�10%)
HF165FD009HY1TFV HONGFA PCB POWER RELAY 9VDC 30A 1NO HF165FD/009-HY1TFV 1A - Single Pole Normally Open 9VDC 900mW 11.7 30AMP 6.75 0.9 97 x (1�10%)
HF165FD012HY1TFV HONGFA PCB POWER RELAY 12VDC 30A 1NO HF165FD/012-HY1TFV 1A - Single Pole Normally Open 12VDC 900mW 15.6 30AMP 9 1.2 155 x (1�10%)
HF165FD024HY1TFV HONGFA PCB POWER RELAY 24VDC 30A 1NO HF165FD/024-HY1TFV 1A - Single Pole Normally Open 24VDC 900mW 31.2 30AMP 18 2.4 660 x (1�10%)
HF165FD048HY1TFV HONGFA PCB POWER RELAY 48VDC 30A 1NO HF165FD/048-HY1TFV 1A - Single Pole Normally Open 48VDC 900mW 62.4 30AMP 36 4.8 2560 x (1�10%)
HF165FD110HY1TFV HONGFA PCB POWER RELAY 110VDC 30A 1NO HF165FD/110-HY1TFV 1A - Single Pole Normally Open 48VDC 900mW 143 30AMP 82.5 11 13450 x (1�10%)
