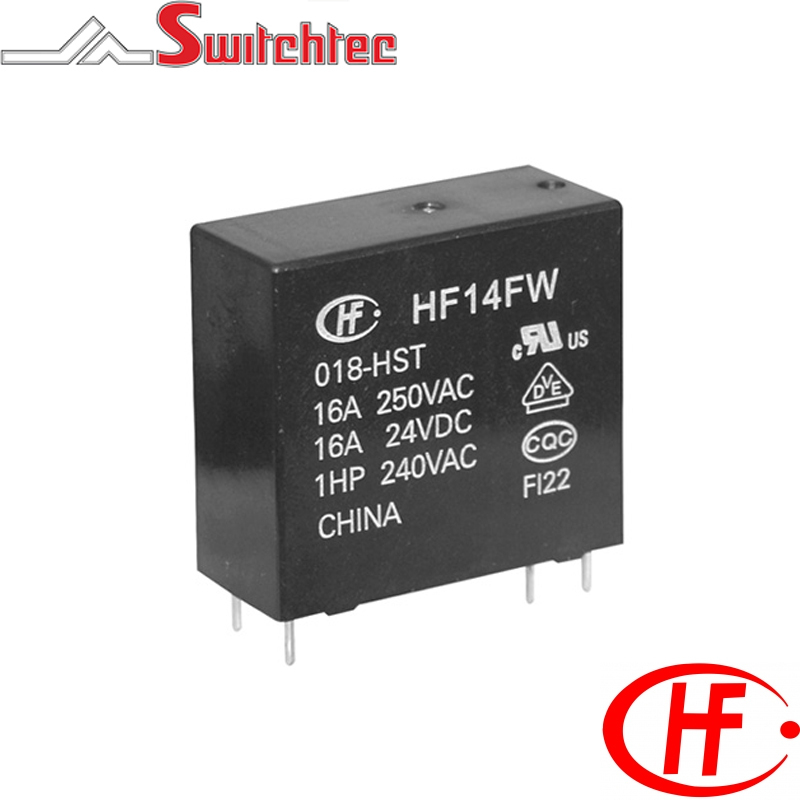

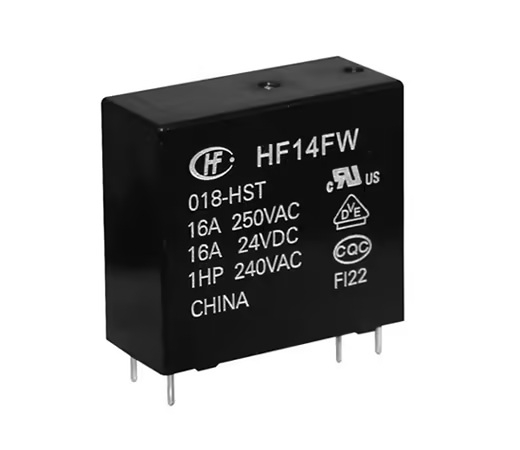

16 Amp 1 Pole Changeover - 1 Form C

16 Amp 1 Pole Changeover - 1 Form C

  • 16 Amp switching capacity
  • 4kV dielectric strength (between coil & contacts)
  • Fully sealed
  • Contact materials AgSnO2
  • RoHS Compliant
  • Approvals UL/CUL, TUV, CQC and VDE
  • TV-8 rating at 125VAC Form C Contact
  • PC & DIN Rail Plug In socket available


Code Description Coil Power Coil ? ? 10% Max VDC Drop Out Max VDC Pick Up Max VDC Coil Voltage Contact Arrangement Maximum Rated Switching Current Price
HF14FW006ZSTF HONGFA PCB POWER RELAY 6VDC 16A HF14FW/006-ZSTF(136) 530mW 68 x (1?10%) 8.4 0.6 4.3 6VDC 1C - Single Pole Changeover 16 AMP
HF14FW012ZSTF HONGFA PCB POWER RELAY 12VDC 16A HF14FW/012-ZSTF(136) 530mW 275 x (1?10%) 16.8 1.2 8.6 12VDC 1C - Single Pole Changeover 16 AMP
HF14FW024ZSTF HONGFA PCB POWER RELAY 24VDC 16A HF14FW/024-ZTF(611)(136) 530mW 1100 x (1?10%) 33.6 2.4 17.3 24VDC 1C - Single Pole Changeover 16 AMP
HF14FW048ZSTF HONGFA PCB POWER RELAY 48VDC HF14FW/048-ZSTF(136)BLACK CASE 530mW 4170 x (1?10%) 67.2 4.8 34.6 48VDC 1C - Single Pole Changeover 16 AMP
HF14FW110ZSTF HONGFA PCB POWER RELAY 110VDC HF14FW/110-ZSTF(136)BLACK CASE 110VDC 1C - Single Pole Changeover 16 AMP
HF14FW006ZTF HONGFA PCB POWER RELAY 6VDC 16A HF14FW/006-ZTF(611)(136) 530mW 8.4VDC 6VDC 1 Change Over
HF14FW012ZTF HONGFA PCB POWER RELAY 12VDC 16A HF14FW/012-ZTF(611)(136) 530mW - 16.8VDC - - 12VDC 1 Change Over -
HF14FW024ZTF HONGFA PCB POWER RELAY 24VDC 16A HF14FW/024-ZTF(611)(136) 530mW - 33.6VDC - - 24VDC 1 Change Over -
