Termination Type 1

Termination Type 1

Code Description Coil Power Coil ? ? 10% Max VDC Drop Out Max VDC Pick Up Max VDC Coil Voltage Contact Arrangement Maximum Rated Switching Current Price

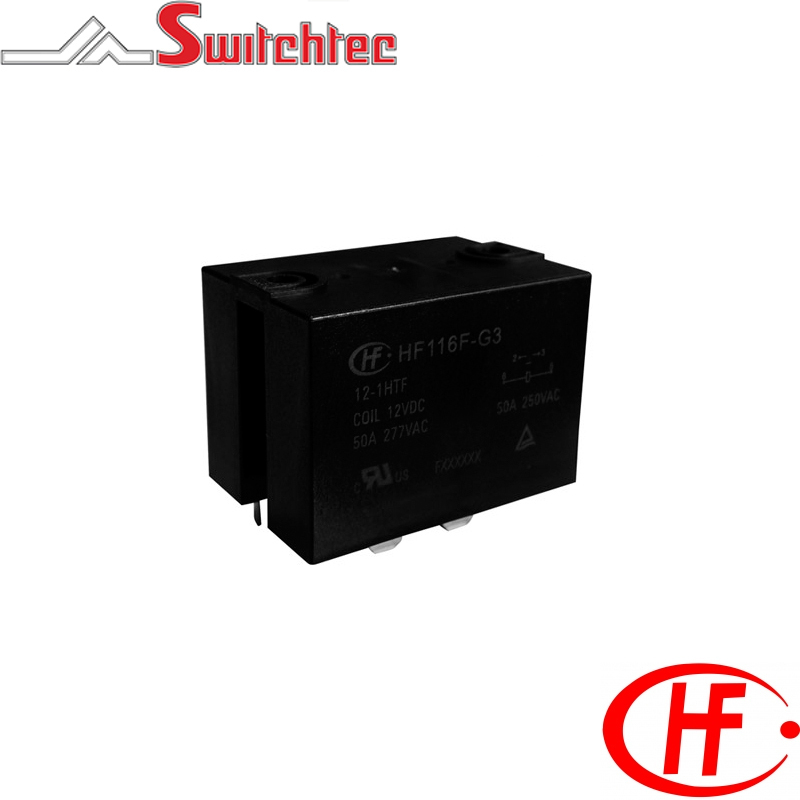

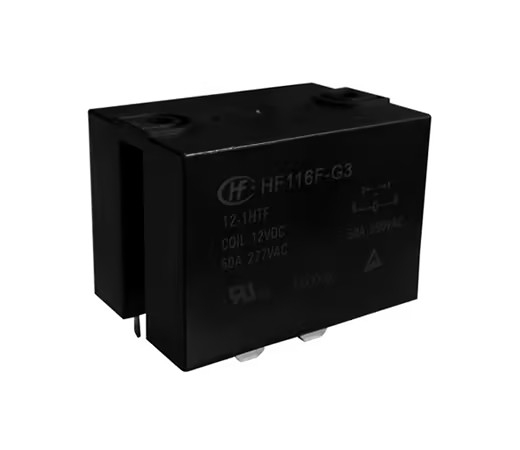

HF116FG10032HTF HONGFA INDUSTRIAL RELAY 3VDC 55A 2NO HF116FG-1/003-2HTF 3.2W 2.8 x (1?10%) 3.3 0.3 2.25 3VDC 2A - 2 Pole Normally Open 55AMP
HF116FG10062HTF HONGFA INDUSTRIAL RELAY 6VDC 55A 2NO HF116FG-1/006-2HTF 3.2W 11.3 x (1?10%) 6.6 0.6 4.5 6VDC 2A - 2 Pole Normally Open 55AMP
HF116FG10092HTF HONGFA INDUSTRIAL RELAY 9VDC 55A 2NO HF116FG-1/009-2HTF 3.2W 25 x (1?10%) 9.9 0.9 6.75 9VDC 2A - 2 Pole Normally Open 55AMP
HF116FG10122HTF HONGFA INDUSTRIAL RELAY 12VDC 55A 2NO HF116FG-1/012-2HTF 3.2W 45 x (1?10%) 13.2 1.2 9 12VDC 2A - 2 Pole Normally Open 55AMP
HF116FG10242HTF HONGFA INDUSTRIAL RELAY 24VDC 55A 2NO HF116FG-1/024-2HTF 3.2W 180 x (1?10%) 26.4 2.4 18 24VDC 2A - 2 Pole Normally Open 55AMP
HF116FG10482HTF HONGFA INDUSTRIAL RELAY 48VDC 55A 2NO HF116FG-1/048-2HTF 3.2W 720 x (1?10%) 52.8 4.8 36 48VDC 2A - 2 Pole Normally Open 55AMP
