VDC

VDC

  • 30 Amp switching capacity
  • 1 Form A contact
  • Heavy load up to 7200VA
  • 4KV dielectricstrength (between coil and contacts)
  • 3mm contact gap
  • Contact materials AgSnO2
  • Available on request AgCdO
  • RoHS compliant

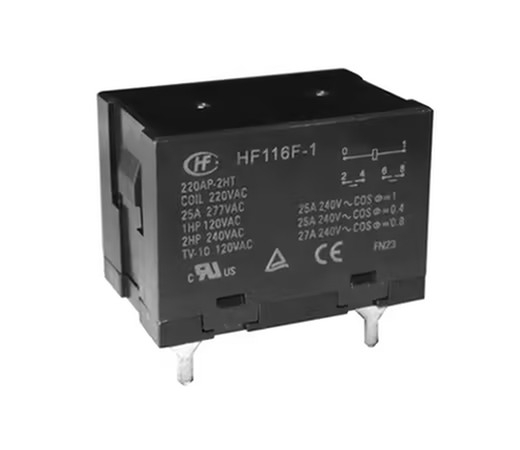

  • PCB and Flangless types also available on request
  • Approvals UL, TUV and CUL
  • Class F Insulation



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Max VDC Drop Out Max VAC Pick Up Max VAC Coil ? � 10% Drop Out Max VDC Pick Up Max VDC Maximum Rated Switching Current Max VAC Coil Power Coil Voltage Contact Arrangement Price

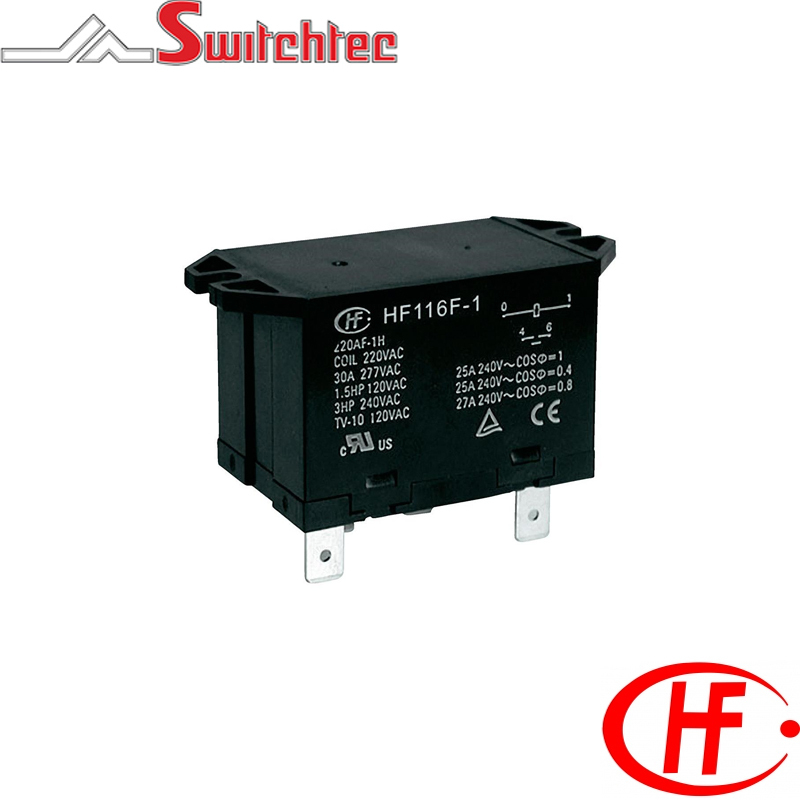

HF116F1006DA1HTFW HONGFA INDUSTRIAL RELAY 6VDC 30A 1NO HF116F-1/006DA-1HTFW 6.6 0.6 4.5 18.8 x (1�10%) 0.6 4.5 30 AMP 6.6 1900mW 6VDC 1A - Single Pole Normally Open
HF116F1012DA1HTFW HONGFA INDUSTRIAL RELAY 12VDC 30A 1NO HF116F-1/012DA-1HTFW 13.2 1.2 9 75 x (1�10%) 1.2 9 30 AMP 13.2 1900mW 12VDC 1A - Single Pole Normally Open
HF116F1024DA1HTFW HONGFA INDUSTRIAL RELAY 24VDC 30A 1NO HF116F-1/024DA-1HTFW 26.4 2.4 18 300 x (1�10%) 2.4 18 30 AMP 26.4 1900mW 24VDC 1A - Single Pole Normally Open
HF116F1048DA1HTFW HONGFA INDUSTRIAL RELAY 48VDC 30A 1NO HF116F-1/048DA-1HTFW 52.8 4.8 36 1200 x (1�10%) 4.8 36 30 AMP 52.8 1900mW 48VDC 1A - Single Pole Normally Open
