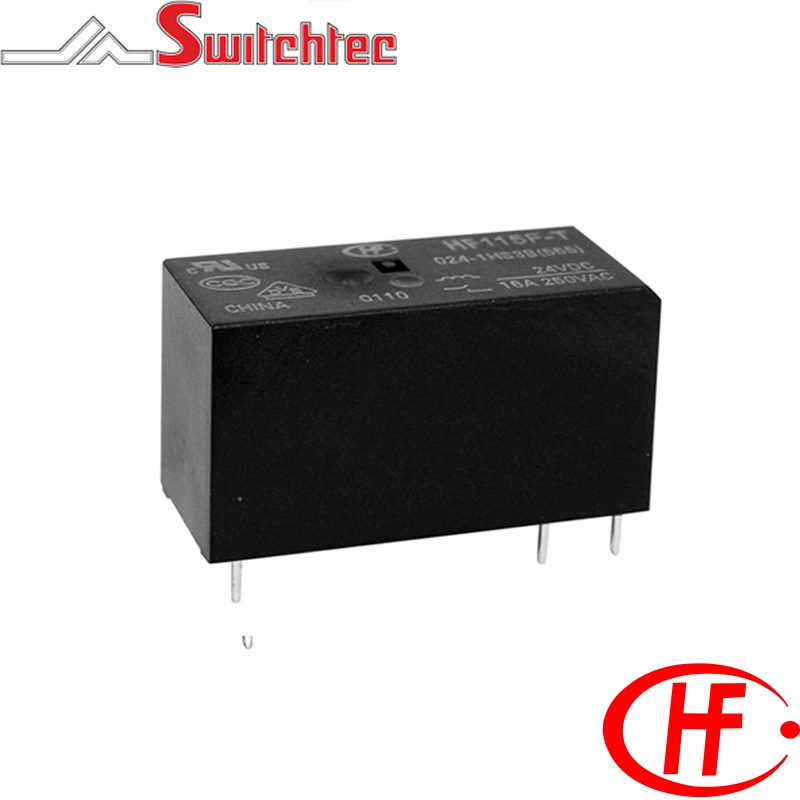

HF115FTH 16 Amp Changeover - 1 Form C Sensitive

HF115FTH 16 Amp Changeover - 1 Form C Sensitive

  • 16 amp switching capacity
  • High temperature device 105 C
  • 400mW rated standard coil plus 250mW sensitive version
  • 5KVA dielectric strength (between coil & contacts)
  • Creepage distance 10mm
  • Contact Material AgSnO2 as standard
  • Available on request AgCdO and AgNi contacts
  • RoHS Complaint
  • Compliant with VDE 0435/0631/0700
  • Approvals VDE, UL & CUL


Code Description Coil Power Coil ? ? 10% Max VDC Drop Out Max VDC Pick Up Max VDC Coil Voltage Contact Arrangement Maximum Rated Switching Current Price
HF115FTH0051ZS3A HONGFA PCB POWER RELAY 5VDC 16A 1CO HF115F-TH/005-1ZS3A 400mW 100 x (1?10%) 6.5 0.5 3.75 5VDC 1C - Single Pole Changeover 16 AMP
HF115FTH0061ZS3A HONGFA PCB POWER RELAY 6VDC 16A 1CO HF115F-TH/006-1ZS3A 400mW 144 x (1?10%) 7.8 0.6 4.5 6VDC 1C - Single Pole Changeover 16 AMP
HF115FTH0091ZS3A HONGFA PCB POWER RELAY 9VDC 16A 1CO HF115F-TH/009-1ZS3A 400mW 324 x (1?10%) 11.7 0.9 6.75 9VDC 1C - Single Pole Changeover 16 AMP
HF115FTH0121ZS3A HONGFA PCB POWER RELAY 12VDC 16A 1CO HF115F-TH/012-1ZS3A 400mW 576 x (1?10%) 15.6 1.2 9 12VDC 1C - Single Pole Changeover 16 AMP
HF115FTH0181ZS3A HONGFA PCB POWER RELAY 18VDC 16A 1CO HF115F-TH/018-1ZS3A 400mW 1296 x (1?10%) 23.4 1.8 13.5 18VDC 1C - Single Pole Changeover 16 AMP
HF115FTH0241ZS3A HONGFA PCB POWER RELAY 24VDC 16A 1CO HF115F-TH/024-1ZS3A 400mW 2304 x (1?10%) 31.2 2.4 18 24VDC 1C - Single Pole Changeover 16 AMP
HF115FTH0481ZS3A HONGFA PCB POWER RELAY 48VDC 16A 1CO HF115F-TH/048-1ZS3A 400mW 9216 x (1?15%) 62.4 4.8 36 48VDC 1C - Single Pole Changeover 16 AMP
HF115FTH0601ZS3A HONGFA PCB POWER RELAY 60VDC 16A 1CO HF115F-TH/060-1ZS3A 400mW 12857 x (1?15%) 78 6 45 60VDC 1C - Single Pole Changeover 16 AMP
