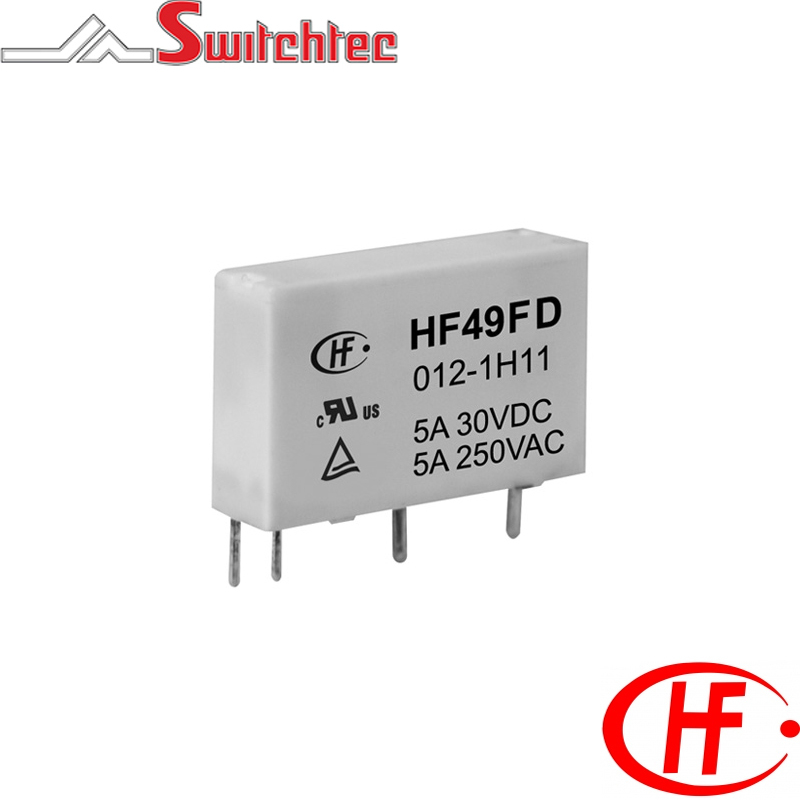

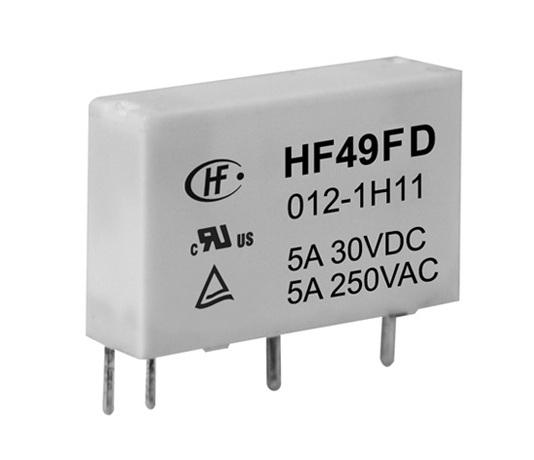

5 Amp 1 Pole Normally Open - Gold Plated, 5.08mm Pitch

5 Amp 1 Pole Normally Open - Gold Plated, 5.08mm Pitch

  • 5A switching capability
  • High sensitive: Min. 120mW
  • 3kV dielectric strength (between coil and contacts)
  • Meets IEC61131-2 reinforce insulation
  • Creepage distance: Min. 3.5mm
  • UL insulation system: Class F available
  • RoHS compliant
  • Approvals UL/CUL, TUV, CQC and VDE


Code Description Coil Power Coil ? ? 10% Max VDC Drop Out Max VDC Pick Up Max VDC Coil Voltage Contact Arrangement Maximum Rated Switching Current Price
HF49FD0051H11GTF HONGFA PCB POWER RELAY 5VDC 5A SPNO HF49FD/005-1H11GTF 120mW 208 x (1?10%) 6 0.25 3.5 5VDC 1A - Single Pole Normally Open 5 AMP
HF49FD0061H11GTF HONGFA PCB POWER RELAY 6VDC 5A SPNO HF49FD/006-1H11GTF 120mW 300 x (1?10%) 7.2 0.3 4.2 6VDC 1A - Single Pole Normally Open 5 AMP
HF49FD0091H11GTF HONGFA PCB POWER RELAY 9VDC 5A SPNO HF49FD/009-1H11GTF 120mW 675 x (1?10%) 10.8 0.45 6.3 9VDC 1A - Single Pole Normally Open 5 AMP
HF49FD0121H11GTF HONGFA PCB POWER RELAY 12VDC 5A SPNO HF49FD/012-1H11GTF 120mW 1200 x (1?10%) 14.4 0.6 8.4 12VDC 1A - Single Pole Normally Open 5 AMP
HF49FD0241H11GTF HONGFA PCB POWER RELAY 24VDC 5A SPNO HF49FD/024-1H11GTF 180mW 3200 x (1?15%) 28.8 1.2 16.8 24VDC 1A - Single Pole Normally Open 5 AMP
