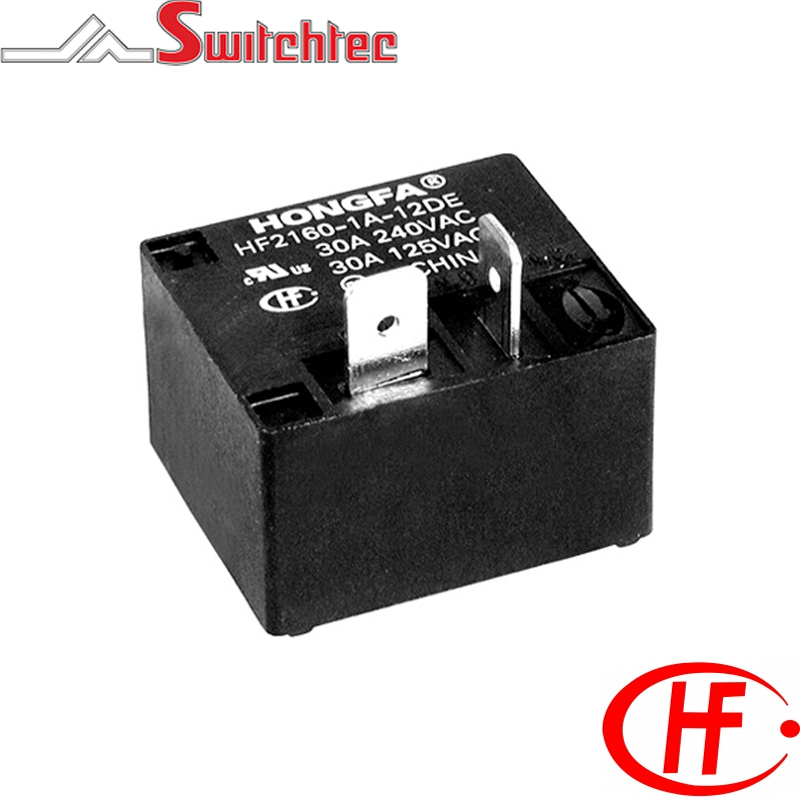

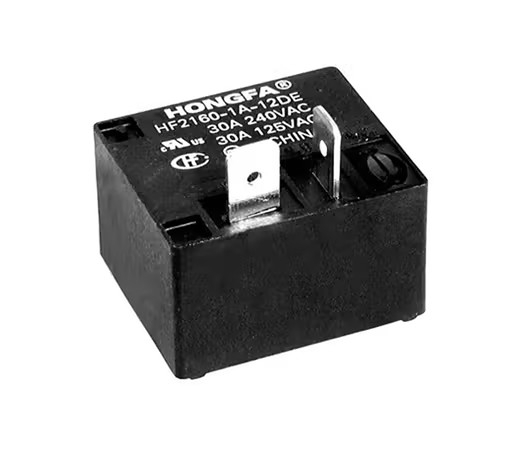

40 Amp 1 Pole Normally Open - 1 Form A

40 Amp 1 Pole Normally Open - 1 Form A

  • 40 Amp switching capacity
  • 900mW Coil
  • 1 Form A contact
  • PCB Coil terminals, sui table for heavy duty load
  • 2.5KV dielectric strength (between coil and contacts)
  • Plastic sealed andDust protected types available
  • Class F Insulation available
  • RoHS compliant
  • Approvals UL, TUV and CQC


Code Description Coil Power Coil ? ? 10% Max VDC Drop Out Max VDC Pick Up Max VDC Coil Voltage Contact Arrangement Maximum Rated Switching Current Price
HF2160-1A-005DEF HONGFA PCB POWER RELAY 5VDC 40A 1NO HF2160-1A-005DEF 900mW 27 x (1?10%) 6.5 0.5 3.75 5VDC 1A - Single Pole Normally Open 40 AMP
HF2160-1A-006DEF HONGFA PCB POWER RELAY 6VDC 40A 1NO HF2160-1A-006DEF 900mW 40 x (1?10%) 7.8 0.6 4.5 6VDC 1A - Single Pole Normally Open 40 AMP
HF2160-1A-009DEF HONGFA PCB POWER RELAY 9VDC 40A 1NO HF2160-1A-009DEF 900mW 97 x (1?10%) 11.7 0.9 6.75 9VDC 1A - Single Pole Normally Open 40 AMP
HF2160-1A-012DEF HONGFA PCB POWER RELAY 12VDC 40A 1NO HF2160-1A-012DEF 900mW 155 x (1?10%) 15.6 1.2 9 12VDC 1A - Single Pole Normally Open 40 AMP
HF2160-1A-015DEF HONGFA PCB POWER RELAY 15VDC 40A 1NO HF2160-1A-015DEF 900mW 256 x (1?10%) 19.5 1.5 11.25 15VDC 1A - Single Pole Normally Open 40 AMP
HF2160-1A-018DEF HONGFA PCB POWER RELAY 18VDC 40A 1NO HF2160-1A-018DEF 900mW 380 x (1?10%) 23.4 1.8 13.5 18VDC 1A - Single Pole Normally Open 40 AMP
HF2160-1A-024DEF HONGFA PCB POWER RELAY 24VDC 40A 1NO HF2160-1A-024DEF 900mW 660 x (1?10%) 31.2 2.4 18 24VDC 1A - Single Pole Normally Open 40 AMP
HF2160-1A-048DEF HONGFA PCB POWER RELAY 48VDC 40A 1NO HF2160-1A-048DEF 900mW 2560 x (1?10%) 62.4 4.8 36 48VDC 1A - Single Pole Normally Open 40 AMP
HF2160-1A-070DEF HONGFA PCB POWER RELAY 70VDC 40A 1NO HF2160-1A-070DEF 900mW 5500 x (1?10%) 91 7 52.5 70VDC 1A - Single Pole Normally Open 40 AMP
HF2160-1A-110DEF HONGFA PCB POWER RELAY 110VDC 40A 1NO HF2160-1A-110DEF 900mW 13450 x (1?10%) 143 11 82.5 110VDC 1A - Single Pole Normally Open 40 AMP
