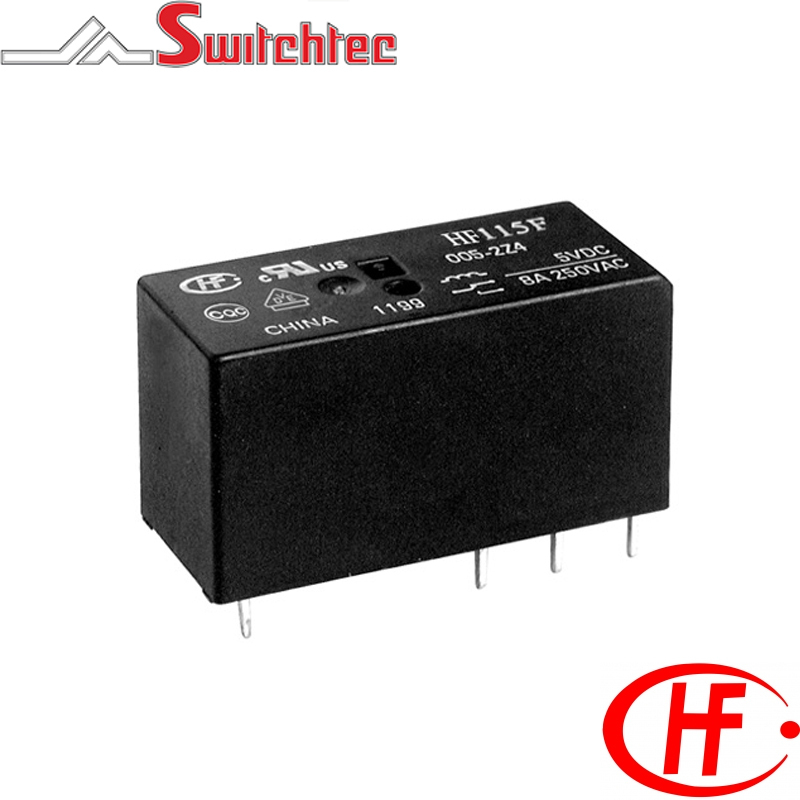

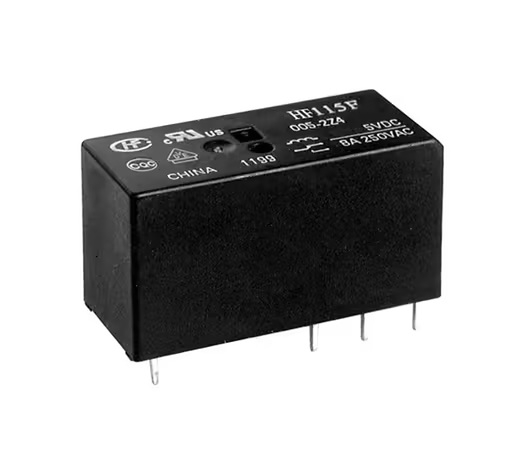

12 Amp Normally Closed 3.5mm Pinning - 1 Form B

12 Amp Normally Closed 3.5mm Pinning - 1 Form B

  • 12 Amp switching capacity
  • 400mW Coil
  • 5KVA dielectric strength (between coil and contacts)
  • 1 Form B contact
  • Creepage distance 10mm
  • DC Coil Version
  • Contact materials AgSnO2 as standard
  • Available on request AgCdO, AgNi, AgCdO+Au plated, AgNi + Au plated contacts
  • RoHS compliant
  • Fully sealed
  • Compliant with VDE 0435/0631/0700
  • Approvals FIMKO, VDE UL & CUL
  • P.C. & DIN rail sockets available
  • Insulation Class F



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
HF115F0121DS1AF HONGFA PCB POWER RELAY 12DC 12A 1NC HF115F/012-1DS1AF 1B - Single Pole Normally Closed 12VDC 400mW 18 12 AMP 8.4 1.2 360 x (1�10%)
