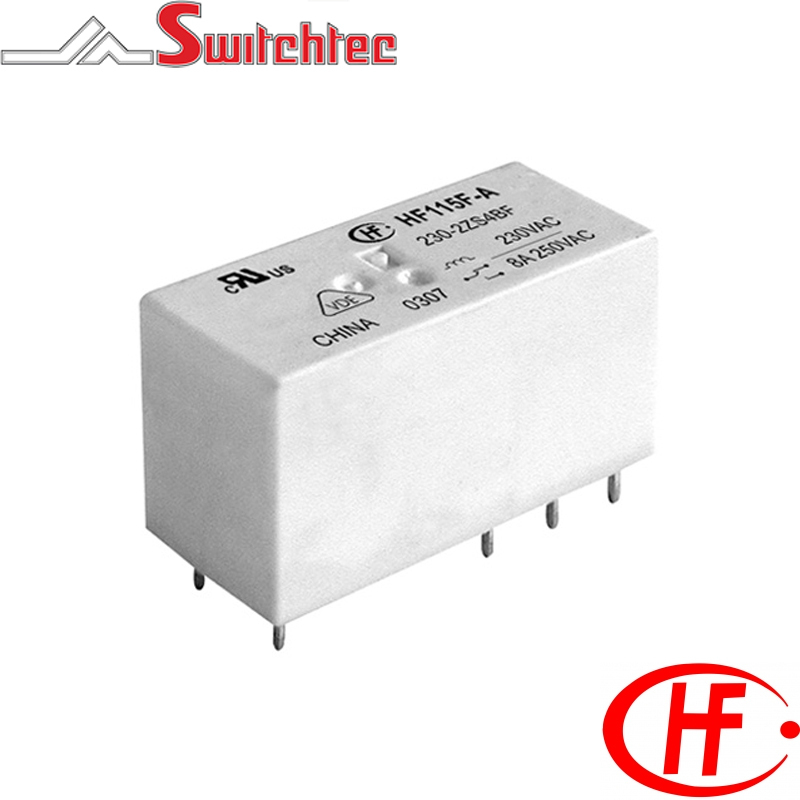

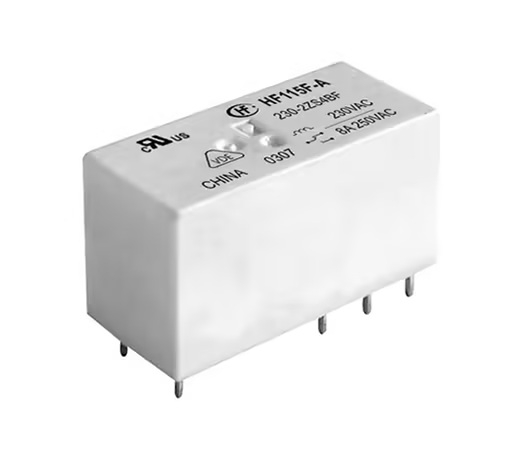

12 Amp Changeover 3.5mm Pinning - 1 Form C

12 Amp Changeover 3.5mm Pinning - 1 Form C

  • 12 Amp switching capacity
  • 0.75VA Coil
  • 5KVA dielectric strength (between coil and contacts)
  • 1 Form C contact
  • Creepage distance 10mm
  • AC Coil Version
  • Contact materials AgSnO2 as standard
  • Available on request AgCdO, AgNi, AgCdO+Au plated, AgNi + Au plated contacts
  • RoHScompliant
  • Fully sealed
  • Compliant with VDE 0435/0631/0700
  • Approvals VDE UL & CUR
  • P.C. & DIN rail sockets available
  • Insulation Class F



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Maximum Rated Switching Current Drop Out Max VAC Pick Up Max VAC Coil ? � 10% Max VAC Coil Power Coil Voltage Contact Arrangement Price
HF115FA0241ZS1AF HONGFA PCB POWER RELAY 24VAC 12A 1CO HF115F-A/024-1ZS1AF 12 AMP 3.6 18 350 x (1�10%) 31.6 0.75VA 24VAC 1C - Single Pole Changeover
HF115FA1151ZS1AF HONGFA PCB POWER RELAY 115VAC 12A 1CO HF115F-A/115-1ZS1AF 12 AMP 17.3 86.3 8110 x (1�15%) 6.6 0.75VA 115VAC 1C - Single Pole Changeover
HF115FA2301ZS1AF HONGFA PCB POWER RELAY 230VAC 12A 1CO HF115F-A/230-1ZS1AF 12 AMP 34.5 172.5 32500 x (1�15%) 3.2 0.75VA 230VAC 1C - Single Pole Changeover
