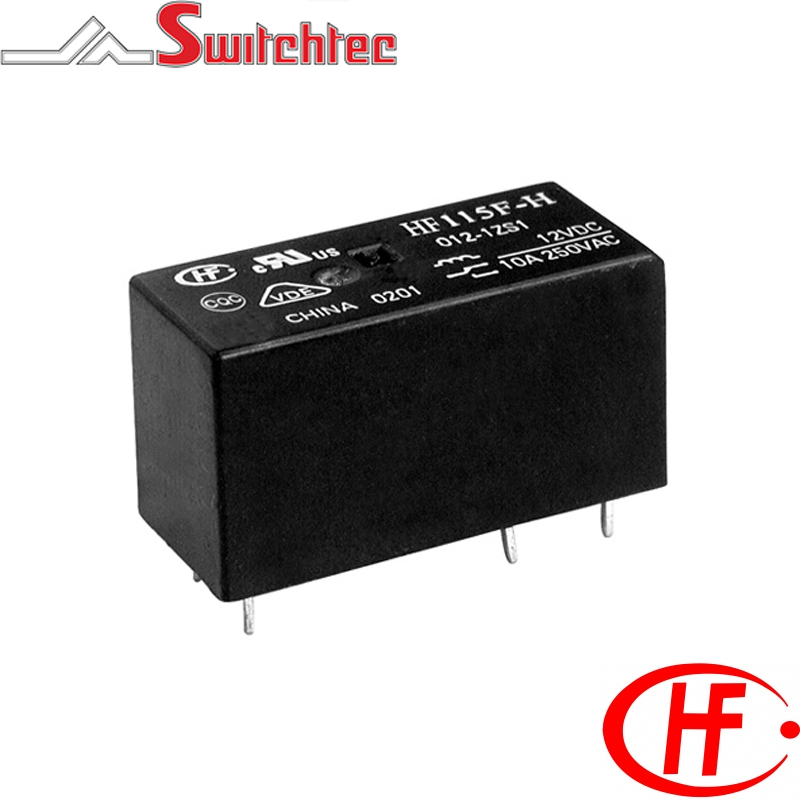

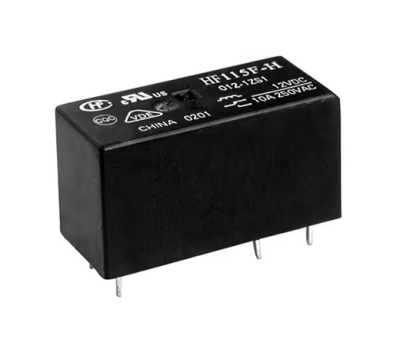

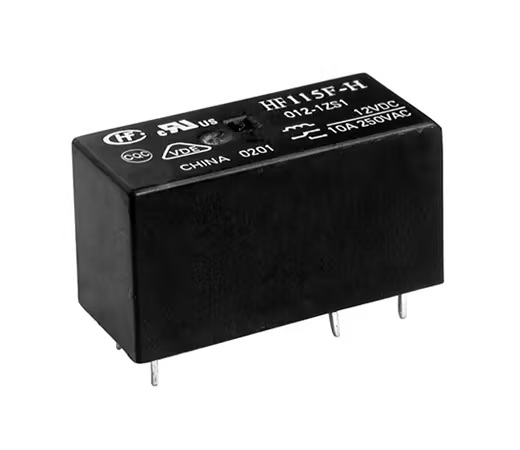

10 Amp 1 Pole Changeover 5mm Pinning - 1 Form C

10 Amp 1 Pole Changeover 5mm Pinning - 1 Form C

  • 10 Amp switching capacity
  • High sensitivity: 0.25W
  • 5KV dielectric strength (between coil and contacts)
  • 1 Form C contact
  • Creepage distance 10mm
  • Contact materials AgSnO2 as standard
  • Available on request AgCdO, AgNi, AgCdO+Au plated contacts
  • RoHS compliant
  • Sealed as standard
  • Compliant with VDE 0435/0631/0700
  • Approvals VDE UL & CUL
  • Relays compliant with IEC 60335-1 also available
  • PC & Din sockets available


Code Description Coil Power Coil ? ? 10% Max VDC Drop Out Max VDC Pick Up Max VDC Coil Voltage Contact Arrangement Maximum Rated Switching Current Price
HF115FH0051ZS2A HONGFA PCB POWER RELAY 5DC 10A 1CO HF115F-H/005-1ZS2A 250mW 100 x (1?10%) 7.5 0.5 3.75 5VDC 1C - Single Pole Changeover 10 AMP
HF115FH0061ZS2A HONGFA PCB POWER RELAY 6DC 10A 1CO HF115F-H/006-1ZS2A 250mW 144 x (1?10%) 9 0.6 4.5 6VDC 1C - Single Pole Changeover 10 AMP
HF115FH0091ZS2A HONGFA PCB POWER RELAY 9DC 10A 1CO HF115F-H/009-1ZS2A 9VDC 1C - Single Pole Changeover 10 AMP
HF115FH0121ZS2A HONGFA PCB POWER RELAY 12DC 10A 1CO HF115F-H/012-1ZS2A 250mW 576 x (1?10%) 18 1.2 9 12VDC 1C - Single Pole Changeover 10 AMP
HF115FH0181ZS2A HONGFA PCB POWER RELAY 18DC 10A 1CO HF115F-H/018-1ZS2A 250mW 1296 x (1?10%) 27 1.8 13.5 18VDC 1C - Single Pole Changeover 10 AMP
HF115FH0241ZS2A HONGFA PCB POWER RELAY 24DC 10A 1CO HF115F-H/024-1ZS2A 250mW 2304 x (1?10%) 36 2.4 18 24VDC 1C - Single Pole Changeover 10 AMP
HF115FH0481ZS2A HONGFA PCB POWER RELAY 48DC 10A 1CO HF115F-H/048-1ZS2A 250mW 9216 x (1?15%) 72 4.8 36 48VDC 1C - Single Pole Changeover 10 AMP
HF115FH0601ZS2A HONGFA PCB POWER RELAY 60DC 10A 1CO HF115F-H/060-1ZS2A 250mW 12857 x (1?15%) 90 6 45 60VDC 1C - Single Pole Changeover 10 AMP
