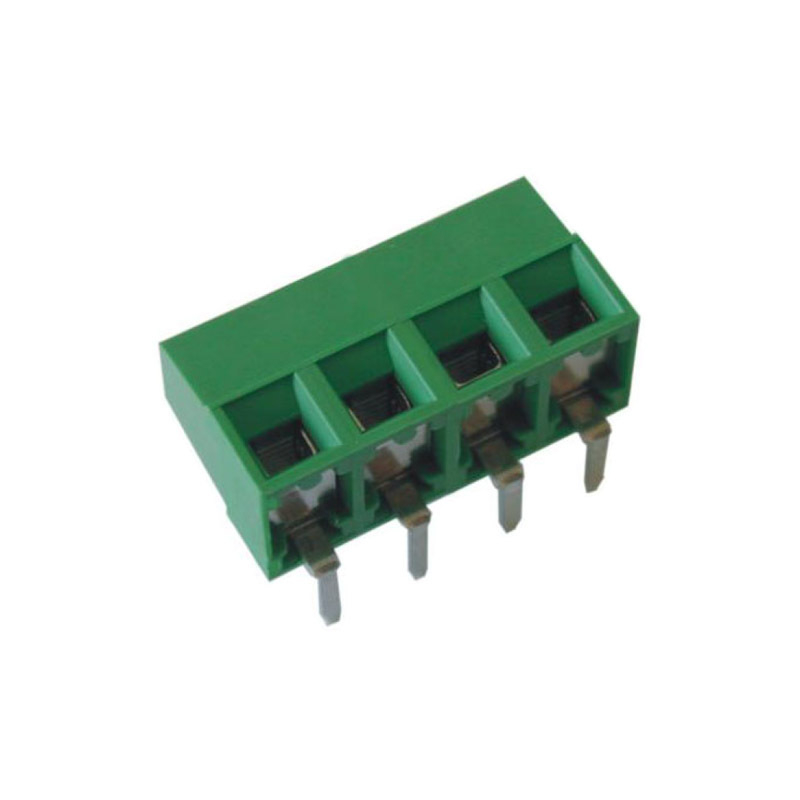

MV15-H-L 5.08mm Single Deck PCB Terminal Blocks

Descriptions

5.08mm Pitch PCB Terminal Block
2-12 Pole Mono-block
13.5 Amp Current rating
Moulded in Green UL94-V0 flame retardant PA
Rising Clamp Terminal
Captive screws
Guided pin alignment
IMQ and UL approved
Alternative colours available upon request

Specifications

No detailed specifications are available for this product.

Downloads

Click on any of the following links to download the file.

Data Sheet (pdf)

Code	Description	Cable Size, Flexible (mm2)	Materials (Terminals)	Pitch	Voltage	Cable Size, Solid (mm2)	Materials (Body)	Poles	Amperage	Colour	Operating Temperature	Price
MV1510-5.08-H-L	EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 13.5A 5.08mm 10P	1.5	Tin-plated copper alloy	5.08mm	750V	1.5	PA - UL 94 V0	10	13.5 AMP	Green	-40 to +130℃	Please login to see prices.
MV1511-5.08-H-L	EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 13.5A 5.08mm 11P	1.5	Tin-plated copper alloy	5.08mm	750V	1.5	PA - UL 94 V0	11	13.5 AMP	Green	-40 to +130℃	Please login to see prices.
MV1512-5.08-H-L	EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 13.5A 5.08mm 12P	1.5	Tin-plated copper alloy	5.08mm	750V	1.5	PA - UL 94 V0	12	13.5 AMP	Green	-40 to +130℃	Please login to see prices.
MV152-5.08-H-L	EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 13.5A 5.08mm 2 POLE	1.5	Tin-plated copper alloy	5.08mm	750V	1.5	PA - UL 94 V0	2	13.5 AMP	Green	-40 to +130℃	Please login to see prices.
MV153-5.08-H-L	EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 13.5A 5.08mm 3 POLE	1.5	Tin-plated copper alloy	5.08mm	750V	1.5	PA - UL 94 V0	3	13.5 AMP	Green	-40 to +130℃	Please login to see prices.
MV154-5.08-H-L	EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 13.5A 5.08mm 4 POLE	1.5	Tin-plated copper alloy	5.08mm	750V	1.5	PA - UL 94 V0	4	13.5 AMP	Green	-40 to +130℃	Please login to see prices.
MV155-5.08-H-L	EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 13.5A 5.08mm 5 POLE	1.5	Tin-plated copper alloy	5.08mm	750V	1.5	PA - UL 94 V0	5	13.5 AMP	Green	-40 to +130℃	Please login to see prices.
MV156-5.08-H-L	EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 13.5A 5.08mm 6 POLE	1.5	Tin-plated copper alloy	5.08mm	750V	1.5	PA - UL 94 V0	6	13.5 AMP	Green	-40 to +130℃	Please login to see prices.
MV157-5.08-H-L	EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 13.5A 5.08mm 7 POLE	1.5	Tin-plated copper alloy	5.08mm	750V	1.5	PA - UL 94 V0	7	13.5 AMP	Green	-40 to +130℃	Please login to see prices.
MV158-5.08-H-L	EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 13.5A 5.08mm 8 POLE	1.5	Tin-plated copper alloy	5.08mm	750V	1.5	PA - UL 94 V0	8	13.5 AMP	Green	-40 to +130℃	Please login to see prices.
MV159-5.08-H-L	EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 13.5A 5.08mm 9 POLE	1.5	Tin-plated copper alloy	5.08mm	750V	1.5	PA - UL 94 V0	9	13.5 AMP	Green	-40 to +130℃	Please login to see prices.
