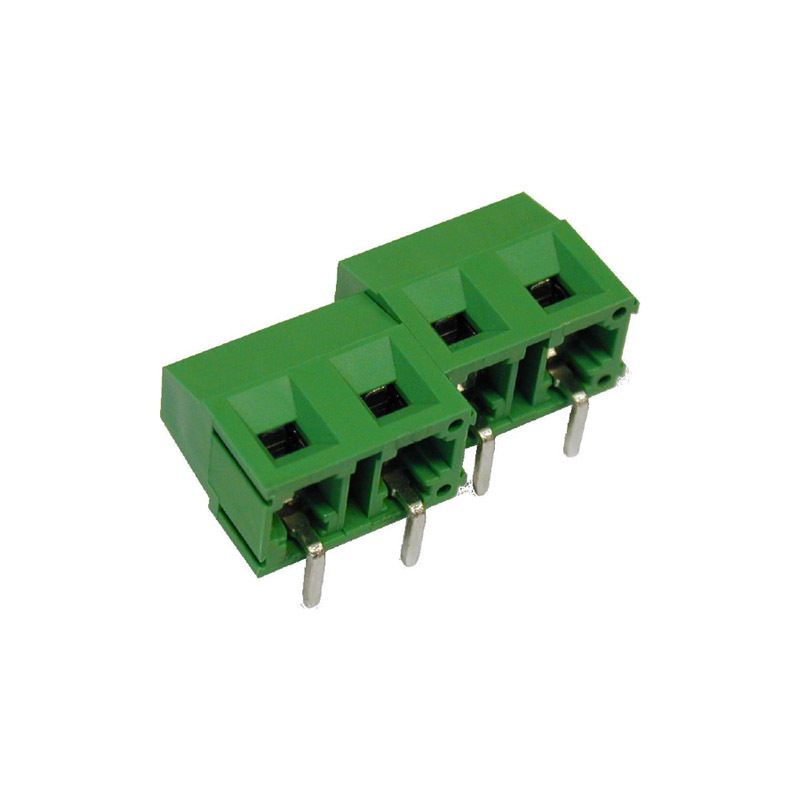

MVS17-H Single Deck PCB Terminal Blocks

MVS17-H Single Deck PCB Terminal Blocks

  • 7.62mm Pitch PCB Terminal Block
  • 2-12 Pole Interlocking
  • 17.5 Amp Current rating
  • Moulded in Green UL94-V0 flame retardant PA
  • Rising Clamp Terminal
  • Captive screws
  • Guided pin alignment
  • IMQ and UL approved
  • Alternative colours available upon request


Code Description Pitch Materials (Terminals) Cable Size, Solid (mm2) Cable Size, Flexible (mm2) Materials (Body) Poles Operating Temperature Amperage Colour Voltage Price
MVS172-7.62-H EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 17.5A 7.62mm 2 POLE 7.62mm Tin-plated copper alloy 2.5 1.5 PA - UL 94 V0 2 -40 to +130?C 17.5 AMP Green 750V
MVS173-7.62-H EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 17.5A 7.62mm 3 POLE 7.62mm Tin-plated copper alloy 2.5 1.5 PA - UL 94 V0 3 -40 to +130?C 17.5 AMP Green 750V
MVS174-7.62-H EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 17.5A 7.62mm 4 POLE 7.62mm Tin-plated copper alloy 2.5 1.5 PA - UL 94 V0 4 -40 to +130?C 17.5 AMP Green 750V
MVS175-7.62-H EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 17.5A 7.62mm 5 POLE 7.62mm Tin-plated copper alloy 2.5 1.5 PA - UL 94 V0 5 -40 to +130?C 17.5 AMP Green 750V
MVS176-7.62-H EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 17.5A 7.62mm 6 POLE 7.62mm Tin-plated copper alloy 2.5 1.5 PA - UL 94 V0 6 -40 to +130?C 17.5 AMP Green 750V
MVS177-7.62-H EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 17.5A 7.62mm 7 POLE 7.62mm Tin-plated copper alloy 2.5 1.5 PA - UL 94 V0 7 -40 to +130?C 17.5 AMP Green 750V
MVS178-7.62-H EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 17.5A 7.62mm 8 POLE 7.62mm Tin-plated copper alloy 2.5 1.5 PA - UL 94 V0 8 -40 to +130?C 17.5 AMP Green 750V
MVS179-7.62-H EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 17.5A 7.62mm 9 POLE 7.62mm Tin-plated copper alloy 2.5 1.5 PA - UL 94 V0 9 -40 to +130?C 17.5 AMP Green 750V
MVS1710-7.62-H EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 17.5A 7.62mm 10P 7.62mm Tin-plated copper alloy 2.5 1.5 PA - UL 94 V0 10 -40 to +130?C 17.5 AMP Green 750V
MVS1711-7.62-H EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 17.5A 7.62mm 11P 7.62mm Tin-plated copper alloy 2.5 1.5 PA - UL 94 V0 11 -40 to +130?C 17.5 AMP Green 750V
MVS1712-7.62-H EUROCLAMP PCB TERMINAL BLOCK HORIZONTAL 17.5A 7.62mm 12P 7.62mm Tin-plated copper alloy 2.5 1.5 PA - UL 94 V0 12 -40 to +130?C 17.5 AMP Green 750V
