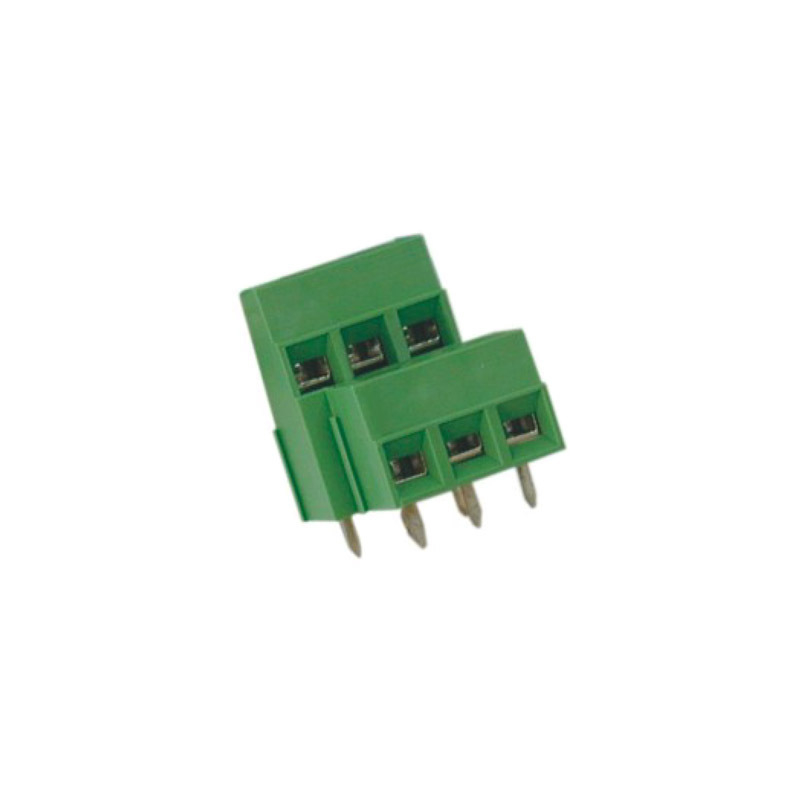

MVD15-V Multi Deck PCB Terminal Blocks

MVD15-V Multi Deck PCB Terminal Blocks

  • 5mm Pitch PCB Terminal Block
  • 2-3 Pole Interlocking
  • 13.5 Amp Current rating
  • Moulded in Green UL94-V0 flame retardant PA
  • Rising Clamp Terminal
  • Captive screws
  • Guided pin alignment
  • UL approved
  • Alternative colours available upon request


Code Description Colour Materials (Terminals) Cable Size, Solid (mm2) Cable Size, Flexible (mm2) Materials (Body) Poles Operating Temperature Amperage Pitch Voltage Price
MVD152-5-V EUROCLAMP PCB TERMINAL BLOCK VERTICAL 13.5A 5mm 2 POLE Green Tin-plated copper alloy 1.5 1.5 PA - UL 94 V5 1 -40 to +130?C 13.5 AMP 5.00mm 750V
MVD153-5-V EUROCLAMP PCB TERMINAL BLOCK VERTICAL 13.5A 5mm 3 POLE Green Tin-plated copper alloy 1.5 1.5 PA - UL 94 V6 2 -40 to +130?C 13.5 AMP 5.00mm 750V
