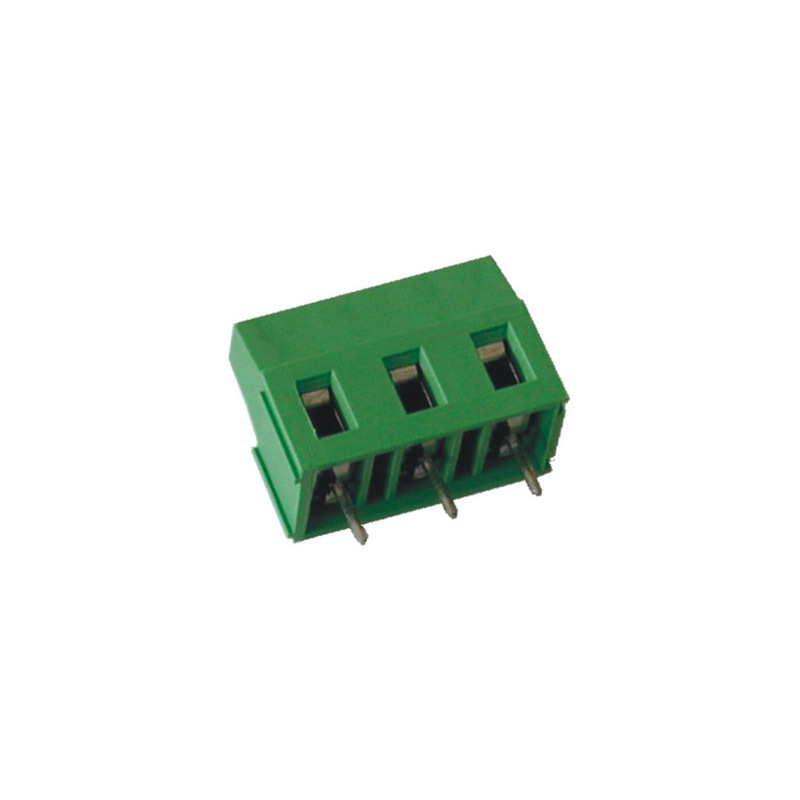

MV27-V Single Deck PCB Terminal Blocks

MV27-V Single Deck PCB Terminal Blocks

  • 7.5mm Pitch PCB Terminal Block
  • 2-3 Pole Interlocking
  • 16 Amp Current rating
  • Moulded in Green UL94-V0 flame retardant PA
  • Rising Clamp Terminal
  • Captive screws
  • Guided pin alignment
  • IMQ, VDE and UL approved
  • Alternative colours available upon request


Code Description Colour Materials (Terminals) Cable Size, Solid (mm2) Cable Size, Flexible (mm2) Materials (Body) Poles Operating Temperature Amperage Pitch Voltage Price
MV272-7.50-V EUROCLAMP PCB TERMINAL BLOCK VERTICAL 16A 7.5mm 2 POLE Green Tin-plated copper alloy 4 2.5 PA - UL 94 V0 2 -40 to +130?C 16 AMP 7.50mm 750V
MV273-7.50-V EUROCLAMP PCB TERMINAL BLOCK VERTICAL 16A 7.5mm 3 POLE Green Tin-plated copper alloy 4 2.5 PA - UL 94 V0 3 -40 to +130?C 16 AMP 7.50mm 750V
MV274-7.50-V EUROCLAMP PCB TERMINAL BLOCK VERTICAL 16A 7.5mm 4 POLE Green Tin-plated copper alloy 4 2.5 PA - UL 94 V0 4 -40 to +130?C 16 AMP 7.50mm 750V
