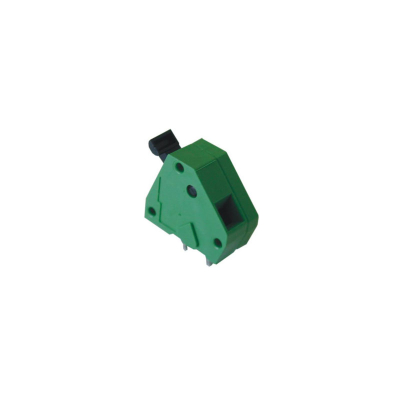

5.08mm Leaver Screwless PCB Terminal Block

• 5.08mm Pitch Screwless PCB Terminal Block
• 1-20 Pole with Modular construction
• 16 Amp Current rating
• Moulded in Green UL94-V0 flame retardant PA.
• SpringClamp Terminal
• Single, Double, Triple and Quad level Variants
• Guided pin alignment
• CE approved
• Alternative colours available upon request

Code	Description	Colour	Materials (Terminals)	Cable Size, Solid (mm2)	Cable Size, Flexible (mm2)	Materials (Body)	Poles	Operating Temperature	Amperage	Pitch	Voltage	Price
MG101-5.08-P	EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 5.08mm 1 POLE	Green	Tin-plated copper alloy	1.5	1.5	PA - UL 94 V0	1	-40 to +130?C	16 AMPS	5.08mm	150V	Please login to see prices.
MG102-5.08-P	EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 5.08mm 1 POLE	Green	Tin-plated copper alloy	1.5	1.5	PA - UL 94 V0	2	-40 to +130?C	16 AMPS	5.08mm	150V	Please login to see prices.
MG103-5.08-P	EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 5.08mm 3 POLE	Green	Tin-plated copper alloy	1.5	1.5	PA - UL 94 V0	3	-40 to +130?C	16 AMPS	5.08mm	150V	Please login to see prices.
MG104-5.08-P	EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 5.08mm 3 POLE	Green	Tin-plated copper alloy	1.5	1.5	PA - UL 94 V0	4	-40 to +130?C	16 AMPS	5.08mm	150V	Please login to see prices.
MG105-5.08-P	EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 5.08mm 4 POLE	Green	Tin-plated copper alloy	1.5	1.5	PA - UL 94 V0	5	-40 to +130?C	16 AMPS	5.08mm	150V	Please login to see prices.
MG106-5.08-P	EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 5.08mm 5 POLE	Green	Tin-plated copper alloy	1.5	1.5	PA - UL 94 V0	6	-40 to +130?C	16 AMPS	5.08mm	150V	Please login to see prices.
MG107-5.08-P	EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 5.08mm 6 POLE	Green	Tin-plated copper alloy	1.5	1.5	PA - UL 94 V0	7	-40 to +130?C	16 AMPS	5.08mm	150V	Please login to see prices.
MG108-5.08-P	EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 5.08mm 7 POLE	Green	Tin-plated copper alloy	1.5	1.5	PA - UL 94 V0	8	-40 to +130?C	16 AMPS	5.08mm	150V	Please login to see prices.
MG109-5.08-P	EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 5.08mm 8 POLE	Green	Tin-plated copper alloy	1.5	1.5	PA - UL 94 V0	9	-40 to +130?C	16 AMPS	5.08mm	150V	Please login to see prices.
MG110-5.08-P	EUROCLAMP PCB TERMINAL BLOCK SCREWLESS 16A 5.08mm 9 POLE	Green	Tin-plated copper alloy	1.5	1.5	PA - UL 94 V0	10	-40 to +130?C	16 AMPS	5.08mm	150V	Please login to see prices.
